13. BRACKET (FOR EFT & EPT TYPE)

Click Here for Microfiche Usage Tip

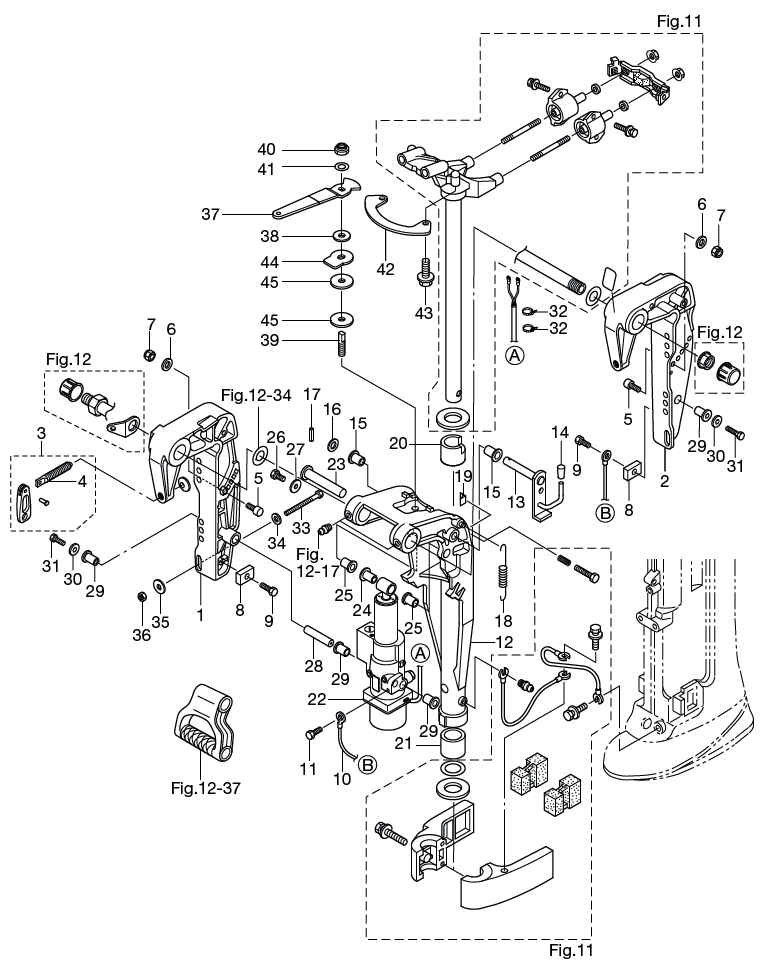

(1) CLAMP BRACKET (PTT-R)(2) CLAMP BRACKET (PTT-L)(3) CLAMP SCREW ASSY(3) CLAMP SCREW ASSY(4) CLAMP SCREW(4) CLAMP SCREW(5) TRIM LOCK PIN(5) TRIM LOCK PIN(6) WASHER 8.1-16-1.5(6) WASHER 8.1-16-1.5(7) NYLON NUT (2T) M8=P1.25(7) NYLON NUT (2T) M8=P1.25(8) ANODE(8) ANODE(9) BOLT 5-16(9) BOLT 5-16(10) GROUND (EARTHWIRE) L=130(11) BOLT W/WASHER(12) SWIVEL BRACKET ASSY(13) TILT STOPPER (PTT)(14) TILT STOPPER GRIP(15) COLLAR 10.2-12-12(15) COLLAR 10.2-12-12(16) WASHER(17) SPRING PIN 3.5-16(18) TILT STOPPER SPRING(19) FRICTION PIECE(20) BUSHING 24-30-30(21) BUSHING 24-30-30(22) PT ASSY(23) CYLINDER PIN (UPPER)(24) BUSHING 13-16-31(25) BUSHING 13-17-19.5(25) BUSHING 13-17-19.5(26) BOLT(27) WASHER 6.5-23-1.5(28) CYLINDER PIN (LOWER)(29) BUSHING 13-16-31(29) BUSHING 13-16-31(29) BUSHING 13-16-31(29) BUSHING 13-16-31(30) WASHER 8.5-28-1(30) WASHER 8.5-28-1(31) BOLT(31) BOLT(32) BAND LEAD WIRE(33) BOLT(34) WASHER(35) WASHER(36) NYLON NUT 8P1.25(37) FRICTION LEVER(38) WASHER 8.1-20-0.8(39) BOLT CO-PILOT(40) NYLON NUT 8P1.25(41) WASHER(42) PLATE CO-PILOT(43) BOLT(44) WASHER CO-PILOT(45) DISC CO-PILOT(45) DISC CO-PILOT



Parts List
2010 :: 8 HP :: 4 Stroke Tohatsu MFS8A3 :: BRACKET (FOR EFT & EPT TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (PTT-RIGHT) 3Z0Q772112 3Z0Q77211-2 STERN BRACKET (RIGHT) / STARBOARD $168.25 1
(2) CLAMP BRACKET (PTT-LEFT) 3Z0Q772120 3Z0Q77212-0 STERN BRACKET (LEFT) / PORT $168.25 1
(3) CLAMP SCREW ASSY 3C8Q621001 3C8Q62100-2 R $56.36 1
(3) CLAMP SCREW ASSY 3C8Q621001 3C8Q62100-2 L $56.36 1
(4) CLAMP SCREW 3E3621030M 3E3-62103-0 R $56.36 1
(4) CLAMP SCREW 3E3621030M 3E3-62103-0 L $56.36 1
(5) TRIM LOCK PIN 3Z0771150M 3Z0-77115-0 $11.09 2
(6) WASHER 8.1 -16 -1.5 3P0662330M 3P0-66233-0 $1.29 2
(7) NYLON NUT (2T) M8 P1.25 3V5624420M 3V5-62442-0 $5.25 2
(8) ANODE 3H6602180M 3H6-60218-0 $5.53 2
(9) BOLT 9101035616M 910103-5616 $1.15 2
(10) GROUND CABLE 398623961M 398-62396-1 $5.75 1 Sold Out View More Details
(11) BOLT 9101035612M 910103-5612 $1.07 1
(12) SWIVEL BRACKET ASSY 3V1Q772080 3V1Q77208-0 $175.29 1
(13) TILT STOPPER 3Z0624761M 3Z0-62476-1 $57.41 1
(14) TILT STOPPER GRIP 369624331M 369-62433-1 $1.85 1
(15) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.10 2
(16) WASHER 9401E31000M 940113-1000 $1.50 1
(17) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(18) SPRING TILT STOPPER 3R0624730M 3R0-62473-0 $3.91 1
(19) FRICTION PIECE 3Z0630350M 3Z0-63035-0 $9.62 1
(20) BUSHING 24-30-30 3Z0624170M 3Z0-62417-0 $4.17 1
(21) BUSHING 24-30-30 350624170M 350-62417-0 $6.65 1
(22) PT ASSY 3Z0Q771510 3Z0Q77151-0 $946.98 1
(23) CYLINDER PIN (UPPER) 3R0770711M 3R0-77071-1 $8.58 1
(24) BUSHING 13-16-31 3Z0770760M 3Z0-77076-0 $1.45 1
(25) BUSHING 13 -17 -19.5 3R0770760M 3R0-77076-0 $1.57 2
(26) BOLT 9101E30612M 9101E3-0612 $0.84 1
(27) WASHER 6.5-23-1.5 345051221M 345-05122-1 $2.17 1
(28) CYLINDER PIN (LOWER) 3Z0771011M 3Z0-77101-1 $36.05 1
(29) BUSHING 13-16-31 3Z0770760M 3Z0-77076-0 $1.45 4
(30) WASHER 8.5-28-1 307621161M 307-62116-1 $1.93 2
(31) BOLT 9101E30820M 9101E3-0820 $1.87 2
(32) LEAD WIRE BAND 203 3Z0843980M 3Z0-84398-0 $0.00 2 Sold Out View More Details
(33) BOLT 9101E30885M 9101E3-0885 $3.50 4
(34) WASHER 9401E30800M 9401E3-0800 $0.65 4
(35) WASHER 8.5-34-3 3Z0613340M 3Z0-61334-0 $3.91 4
(36) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 4
(37) CO- PILOT HANDLE 3AA624410M 3AA-62441-0 FOR EFT $12.91 1
(38) WASHER 8.1-20-0.8 3R3624430M 3R3-62443-0 FOR EFT $1.48 1
(39) CO-PILOT BOLT 3R3624450M 3R3-62445-0 FOR EFT $6.74 1
(40) NYLON NUT 8P-1.25 9304030800M 930446-0800 FOR EFT $1.99 1
(41) WASHER 9401E30800M 9401E3-0800 FOR EFT $0.65 1
(42) CO-PILOT PLATE 3AA624470M 3AA-62447-0 FOR EFT $5.67 1
(43) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR EFT $1.15 2
(44) WASHER CO-PILOT 3R3624481M 3R3-62448-1 FOR EFT $5.59 1
(45) CO-PILOT DISC 3R3624490M 3R3-62449-0 FOR EFT $7.91 2
