12. BRACKET (FOR EP TYPE)

Click Here for Microfiche Usage Tip

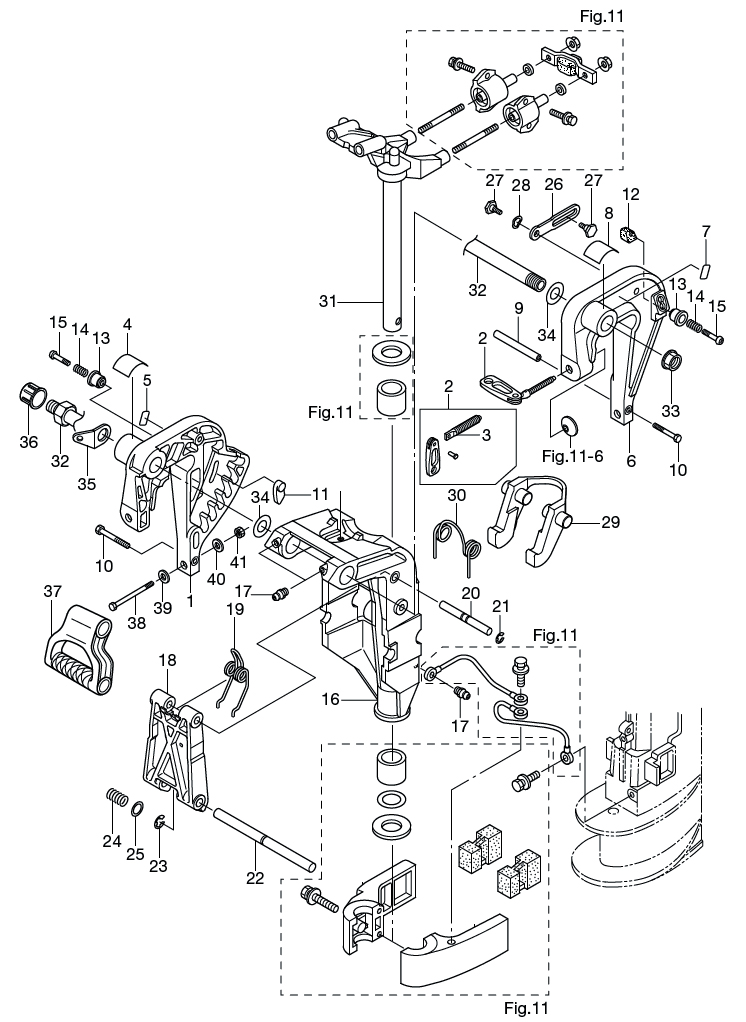

(1) CLAMP BRACKET (R)(2) CLAMP SCREW ASSY(2) CLAMP SCREW ASSY(2) CLAMP SCREW ASSY(2) CLAMP SCREW ASSY(3) CLAMP SCREW(3) CLAMP SCREW(4) TRIM POSITION DECAL(5) LOWER TILT LIMIT DECAL(6) CLAMP BRACKET (L)(7) TILT LOCK DECAL(8) CO-PILOT DECAL(9) DISTANCE PIECE(10) BOLT(10) BOLT(11) TRIM SETTING PLATE(12) TILT LOCK PIECE(13) KNOB(13) KNOB(14) SPRING TILT LOCK KNOB(14) SPRING TILT LOCK KNOB(15) SCREW(15) SCREW(16) SWIVEL BRACKET(17) GREASE FITTING(17) GREASE FITTING(18) TILT STOPPER BODY(19) SPRING(20) TILT STOPPER SHAFT (UPPER)(21) E-RING D=6(22) TILT STOPPER SHAFT (LOWER)(23) E-RING D=9(24) SPRING(25) WASHER 10.5-18-1.5(26) TILT STOPPER (L)(27) BOLT(27) BOLT(28) WAVE WASHER D=10(29) REVERSE LOCK(30) REVERSE LOCK SPRING(31) STEERING SHAFT ASSY(32) SWIVEL BRACKET SHAFT ASSY(32) SWIVEL BRACKET SHAFT ASSY(33) NYLON NUT 7/8(34) WASHER 22-36-1(34) WASHER 22-36-1(35) PLATE(36) CAP NUT BRACKET BOLT(37) CARRYING HANDLE(38) BOLT(39) WASHER(40) WASHER(41) NYLON NUT 8P1.25



Parts List
2010 :: 8 HP :: 4 Stroke Nissan NSF8A3 :: BRACKET (FOR EP TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (RIGHT) 3AAQ621121 3AAQ62112-1 STERN BRACKET (RIGHT) / STARBOARD $68.55 1
(2) CLAMP SCREW ASSY 3AAQ621000 3AAQ62100-0 R $56.36 1
(2) CLAMP SCREW ASSY 3AAQ621000 3AAQ62100-0 L $56.36 1
(3) CLAMP SCREW 3AA621030M 3AA-62103-0 R $14.84 1
(3) CLAMP SCREW 3AA621030M 3AA-62103-0 L $14.84 1
(4) TRIM POSITION DECAL 3AA844610M 3AA-84461-0 $0.00 1 Sold Out View More Details
(5) LOWER TILT LIMIT DECAL 3AA675890M 3AA-67589-0 $0.00 1 Sold Out View More Details
(6) CLAMP BRACKET (LEFT) 3AAQ621131 3AAQ62113-1 STERN BRACKET (LEFT) / PORT $68.55 1
(7) TILT LOCK DECAL 3AA675840M 3AA-67584-0 $0.00 1 Sold Out View More Details
(8) CO-PILOT DECAL 3AA720490M 3AA-72049-0 FOR EFT $0.00 1 Sold Out View More Details
(9) DISTANCE PIECE 3AA621170M 3AA-62117-0 $9.43 1
(10) BOLT 9101E35640M 910113-5640 $1.68 2
(11) TRIM SETTING PLATE 3AA621630M 3AA-62163-0 $4.20 1
(12) TILT LOCK PIECE 3AA621640M 3AA-62164-0 $4.38 1
(13) KNOB 3AA624630M 3AA-62463-0 $4.67 2
(14) TILT LOCK KNOB SPRING 3Y0661120M 3Y0-66112-0 $3.80 2
(15) SCREW 9215030535M 921503-0535 $0.65 2
(16) SWIVEL BRACKET 3AAQ623101 3AAQ62310-1 $142.70 1
(17) GREASE FITTING 344671770M 344-67177-0 $2.56 3 Sold Out View More Details
(18) TILT STOPPER BODY 3AA629940M 3AA-62994-0 $18.13 1
(19) SPRING 3AA624340M 3AA-62434-0 $7.76 1
(20) TILT STOPPER SHAFT (UPPER) 3AA629950M 3AA-62995-0 $10.50 1
(21) E-RING D=6 9453030600M 945303-0600 $0.83 2
(22) TILT STOPPER SHAFT (LOWER) 3AA629961M 3AA-62996-0 $15.04 1
(23) E-RING D=9 9453030900M 945303-0900 $0.79 1
(24) SPRING 3AA637270M 3AA-63727-0 $3.83 1
(25) WASHER 10.5-18-1.5 332613150M 332-61315-0 $0.90 1
(26) TILT STOPPER 3AA624540M 3AA-62454-0 $7.23 2
(27) BOLT 3AA624520M 3AA-62452-0 $3.91 4
(28) WAVE WASHER D=10 9414031000M 941403-1000 $0.81 2
(29) REVERSE LOCK 3AA663221M 3AA-66322-0 $14.08 1
(30) REVERSE LOCK SPRING 3AA663150M 3AA-66315-0 $7.91 1
(31) STEERING SHAFT 3AAQ620100 3AAQ62010-0 $270.30 1
(32) SWIVEL BRACKET SHAFT 3AC621910M 346-62191-0 BRACKET BOLT $41.18 1
(33) NYLON NUT 7/8 346621241M 346-62124-0 $21.14 1
(34) WASHER 22-36-1 3AA621160M 3AA-62116-0 NYLON $3.91 2
(35) PLATE 3AA621141M 3AA-62114-1 $5.99 1
(36) CAP BRACKET BOLT 346621270M 346-62127-0 FOR EFT $2.31 2
(37) CARRYING HANDLE 3AA611990M 3AA-61199-0 $16.24 1
(38) BOLT 9101E30885M 9101E3-0885 $3.50 2
(39) WASHER 8.5-34-3 3Z0613340M 3Z0-61334-0 $3.91 2
(40) WASHER 9401E30800M 9401E3-0800 $0.65 2
(41) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 2
