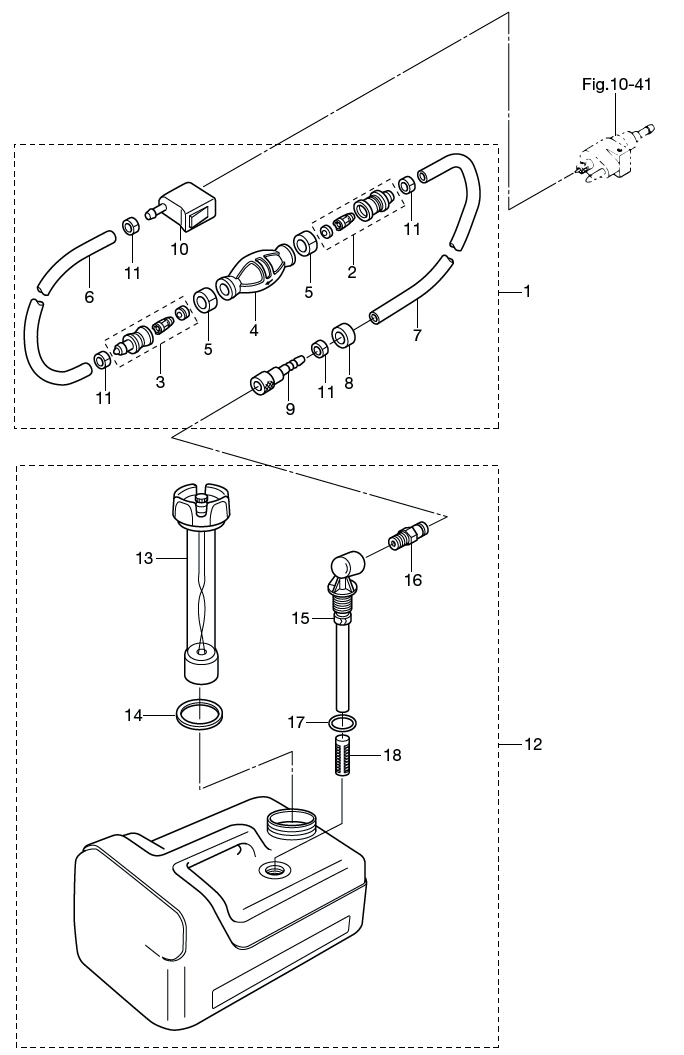

12. SEPARATE FUEL TANK

Click Here for Microfiche Usage Tip
(1) PRIMER BULB ASSY(1) PRIMER BULB ASSY(2) JOINT ASSY (INLET)(3) JOINT ASSY (OUTLET)(4) PRIMER BULB(5) CLAMP(5) CLAMP(6) HOSE(6) HOSE(7) HOSE(7) HOSE(8) FUEL CONNECTOR MARK(9) FUEL CONNECTOR(9) FUEL CONNECTOR(10) FUEL CONNECTOR (ENGINE FEMALE)(11) CLAMP(11) CLAMP(11) CLAMP(11) CLAMP(12) FUEL TANK ASSY 12L(TOHATSU)(12) FUEL TANK ASSY 12L(NISSAN)(13) FUEL GAUGE VENT CAP ASSY(14) TANK FILLER CAP GASKET(15) PICK-UP ELBOW ASSY (12L)(16) QUICK-CONNECTOR (MALE)(17) O-RING(18) FILTER



Parts List
2010 :: 6 HP :: 4 Stroke Nissan NSF6B :: SEPARATE FUEL TANK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) PRIMER BULB ASSY 3H6702001M 3H6-70200-1 STD $122.59 1
(1) PRIMER BULB ASSY 3AC702002M 3AC-70200-2 LOW PERMEATION PARTS / (FOR USA MODEL) $95.51 1 Sold Out View More Details
(2) JOINT A ASSY IN 3C7702201M 3C7-70220-1 $8.52 1
(3) JOINT A ASSY OUT 3C7702241M 3C7-70224-1 $8.77 1
(4) PRIMER BULB 3C7702111M 3C7-70211-0 $22.31 1
(5) CLAMP 3C7702170M 3C7-70217-0 $3.27 2
(6) RUBBER HOSE 98AB70700M 98AB-7-0700 STD / 98AB-701000 $13.44 1
(6) HOSE 3GF702410M 3GF-70241-0 LOW PERMEATION PARTS / (FOR USA MODEL) $0.00 1 Sold Out View More Details
(7) HOSE 98AB701600M 98AB-701600 STD / 98AB-701000 x2 $13.44 1
(7) HOSE 3GF702400M 3GF-70240-0 LOW PERMEATION PARTS / (FOR USA MODEL) $0.00 1 Sold Out View More Details
(8) FUEL CONNECTOR MARK 3B7702801M 3B7-70280-1 $2.62 1
(9) FUEL CONNECTOR 3GF702810M 3GF-70281-0 STD $24.91 1
(9) FUEL CONNECTOR 3GF702810M 3GF-70281-0 LOW PERMEATION PARTS / (FOR USA MODEL) $24.91 1
(10) FUEL CONNECTOR (ENGINE SIDE FEMALE) 394702500M 394-70250-0 $11.78 1
(11) CLAMP 332702010M 332-70201-0 $2.07 4
(12) FUEL TANK (12L PLASTIC) 3B2701670M 3B2-70167-0 $87.32 1
(12) FUEL TANK (12L PLASTIC) 99998FT12M 99998FT12M $87.32 1
(13) FUEL GAUGE VENTED CAP 3B2700500M 3B2-70050-0 $0.00 1 Sold Out View More Details
(14) TANK CAP GASKET 3C7700210M 3C7-70021-0 $0.00 1 Sold Out View More Details
(15) ELBOW TUBING AND CLAMP ASSY 3B2701550M 3B2-70155-0 $11.97 1
(16) MALE QUICK CONNETOR 3E0702700M 3E0-70270-0 $9.71 1
(17) O-RING 3C7701990M 3C7-70199-0 $1.24 1
(18) FILTER 3C7701130M 3C7-70113-0 $3.20 1
