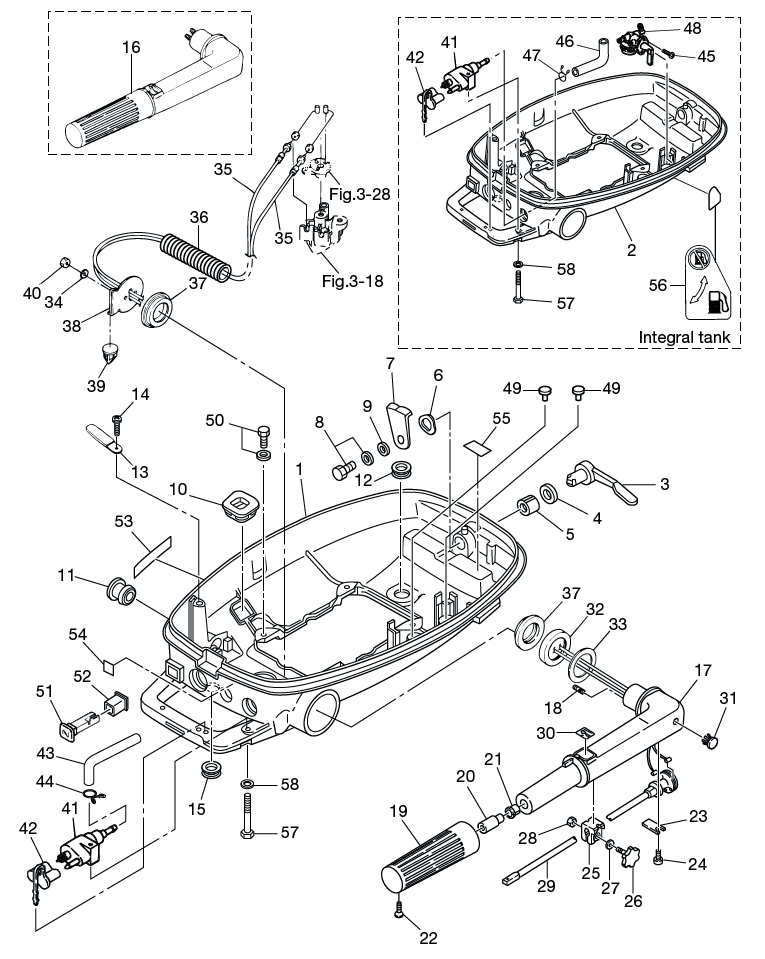

10. BOTTOM COWL & TILLER HANDLE

Click Here for Microfiche Usage Tip
(1) BOTTOM COWL(2) BOTTOM COWL (INTEGRAL)(3) HOOK LEVER(4) SEAL RING HOOK LEVER(5) BUSHING HOOK LEVER(6) WAVE WASHER D=14(7) COVER HOOK(8) BOLT(9) WASHER 6-16-1.5(10) GROMMET STARTER LOCK ROD(11) GROMMET THROTTLT LEVER(12) GROMMET 18-2.5(13) CLAMP 6.5-47.5P(14) SCREW(15) GROMMET 17-2.7(16) TILLER HANDLE SUB-ASSY(17) TILLER HANDLE(18) STUD(19) GRIP(20) THROTTLE SHAFT DAMPER(21) BUSHING 14-15.8-7(22) SCREW(23) THROTTLE SHAFT SUPPORT(24) SCREW(25) FRICTION PIECE(26) ADJUSTING SCREW(27) WASHER(28) NUT(29) THROTTLE SHAFT(30) THROTTLE DECAL(31) PLASTIC RIVET 6.5(32) SPACER HANDLE(33) WASHER 30-45-1(34) SPRING WASHER(35) THROTTLE WIRE(35) THROTTLE WIRE(36) PROTECTOR WIRE HARNESS(37) BUSHING STEERING(37) BUSHING STEERING(38) STEERING HANDLE STOPPER(39) PLASTIC RIVET 6.5(40) NUT(41) FUEL CONNECTOR (ENGINE MALE)(41) FUEL CONNECTOR (ENGINE MALE)(42) FUEL CONNECTOR PROTECTOR(42) FUEL CONNECTOR PROTECTOR(43) FUEL HOSE 4.5L-75(44) CLIP FUEL PIPE(45) SCREW(46) FUEL HOSE F(47) CLIP FUEL PIPE(48) FUEL COCK ASSY(49) GROMMET(49) GROMMET(50) BOLT(51) CHOKE ROD(52) CHOKE ROD BUSHING(53) STORAGE DECAL(54) OIL PRESSURE DECAL(55) SPARK PLUG DECAL(56) FUEL LEVER DECAL(57) BOLT(57) BOLT(58) WASHER(58) WASHER



Parts List
2010 :: 6 HP :: 4 Stroke Nissan NSF6B :: BOTTOM COWL & TILLER HANDLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL (FOR SEPARATE TANK) 3H6Q671002 3H6Q67100-2 $135.42 1
(2) BOTTOM COWL (FOR INTERGRAL TANK) 3H9Q671002 3H9Q67100-2 $186.30 1
(3) HOOK LEVER 369Q671411 369Q67141-1 $8.63 1
(4) SEAL RING 338671470M 338-67147-0 $1.85 1
(5) BUSHING 369671050M 369-67105-0 $2.07 1
(6) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(7) COVER HOOK 3H6671420M 3H6-67142-0 $7.36 1
(8) BOLT 9101036612M 910103-6612 $1.16 1
(9) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 1
(10) STARTER LOCK ROD GROMMET 369671880M 369-67188-0 $2.62 1
(11) THROTTLE LEVER GROMMET 369671870M 369-67187-0 $2.19 2
(12) GROMMET 18-2.5 338671630M 338-67163-0 $2.07 1
(13) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(14) SCREW 9215030612M 921513-0612 $0.93 1
(15) GROMMET 17-2.7 345671170M 345-67117-0 $2.31 1 Sold Out View More Details
(16) TILLER HANDLE SUB-ASSY 3ASQ630050 3H6Q63010-0 $0.00 1 Sold Out View More Details
(17) TILLER HANDLE 3H6Q630110 3H6Q63011-0 $0.00 1 Sold Out View More Details
(18) STUD BOLT 3B2631041M 3B2-63104-1 $3.27 2
(19) GRIP 369630121M 369-63012-1 $29.88 1
(20) THROTTLE SHAFT DAMPER 3H6630480M 3H6-63048-0 $1.85 1 Sold Out View More Details
(21) BUSHING 14-15.8-7 3H6635100M 3H6-63510-0 $1.27 1
(22) SCREW 9208030518M 9208E3-0518 $0.92 1
(23) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 $2.31 1
(24) SCREW 9215E30612M 9215E3-0612 $0.93 1
(25) GRIP FRICTION PIECE 3B2630351M 3B2-63035-1 $4.19 1
(26) ADJUSTING SCREW 3B2630340M 3B2-63034-0 $4.19 1
(27) WASHER 9401030600M 940103-0600 $0.70 1
(28) NUT 9301030600M 930113-0600 $0.84 1
(29) THROTTLE SHAFT 3B2630410M 3B2-63041-0 $18.64 1
(30) THROTTLE DECAL 369720191M 369-72019-1 $1.20 1
(31) PLASTIC RIVET 6.5 350671540M 350-67154-0 $1.85 1
(32) TILLER HANDLE SPACER 3H6630260M 3H6-63026-0 $3.51 1
(33) WASHER 30-45-1 3B2631080M 3B2-63108-0 $1.41 1
(34) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(35) THROTTLE CABLE (NEW) 3H6636001M 3H6-63600-0 $14.50 2
(36) PROTECTOR 3H6061330M 3H6-06133-0 $2.53 1
(37) TILLER HANDLE BUSHING 3H6631020M 3H6-63102-0 $3.37 2
(38) TILLER HANDLE STOPPER 3H6631030M 3H6-63103-0 $5.76 1
(39) ANCHOR CLIP 6.5 3H6671540M 3H6-67154-0 $1.39 1
(40) NUT 9301030600M 930113-0600 $0.84 2
(41) FUEL CONNECTOR ( ENGINE MALE) 394702600M 394-70260-0 $25.56 1
(42) FUEL CONNECTOR PROTECTOR 3H6702620M 3H6-70262-0 $8.24 1
(43) FUEL HOSE 4.5L-75 3H6022030M 3H6-02203-0 $0.00 1 Sold Out View More Details
(44) CLIP ø10 338022150M 338-02215-0 $1.41 1
(45) SCREW 9218030410M 921803-0410 $0.60 2
(46) FUEL HOSE F 394703250M 394-70325-0 $3.45 1
(47) CLIP ø10 338022150M 338-02215-0 $1.41 1
(48) FUEL COCK 3H9703110M 3H9-70311-0 $24.59 1 Sold Out View More Details
(49) GROMMET 3AS671610M 3AS-67161-0 $1.76 2
(50) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 4
(51) CHOKE ROD 3H6671510M 3H6-67151-0 $4.09 1 Sold Out View More Details
(52) CHOKE ROD BUSHING 3H6671040M 3H6-67104-0 $3.39 1
(53) STORAGE DECAL 3H6675720M 3H6-67572-0 $1.22 1
(54) OIL PRESSURE DECAL 3H6761990M 3H6-76199-0 $0.00 1 Sold Out View More Details
(55) RESISTANCE SPARK PLUG DECAL 3H6720260M 3H6-72026-0 $3.04 1
(56) FUEL LEVER DECAL B 3H9720240M 3H9-72024-0 $1.33 1
(57) BOLT 9101030640M 910103-0640 $1.59 1
(58) WASHER 9401030600M 940103-0600 $0.70 1
