9. BRACKET & REVERSE LOCK

Click Here for Microfiche Usage Tip
(1) SWIVEL BRACKET A(2) SWIVEL BRACKET B(3) CLAMP BRACKET (R)(4) CLAMP SCREW ASSY(4) CLAMP SCREW ASSY(5) CLAMP SCREW(5) CLAMP SCREW(6) CLAMP SCREW HANDLE(6) CLAMP SCREW HANDLE(7) RIVET 3-22(7) RIVET 3-22(8) CLAMP SCREW PAD(8) CLAMP SCREW PAD(9) CLAMP BRACKET (L)(10) BOLT 8-122(11) NYLON NUT 8P1.25(12) WASHER(13) WASHER 8.5-28-1(13) WASHER 8.5-28-1(14) DISTANCE PLATE BRACKET(15) SCREW(16) STERN BRACKET SPRING(17) SCREW(18) WASHER 4.3-16-1.5(19) THRUST ROD(20) THRUST ROD SPRING(21) BOLT(22) THRUST BUSHING(23) BUSHING UPPER STEERING(24) BUSHING LOWER STEERING(25) FRICTION BAND ASSY(26) THRUST PLATE (LOWER)(27) SPRING CO-PILOT(28) WING NUT M6(29) WASHER 6-16-1.5(30) TILT STOPPER ASSY(31) TILT STOPPER GRIP(32) BUSHING TILT STOPPER(32) BUSHING TILT STOPPER(33) SETTING PLATE TILT STOPPER(34) BOLT(35) GREASE FITTING(36) REVERSE LOCK ARM(37) BOLT(38) REVERSE LOCK SPRING (R)(39) REVERSE LOCK SPRING (L)



Parts List

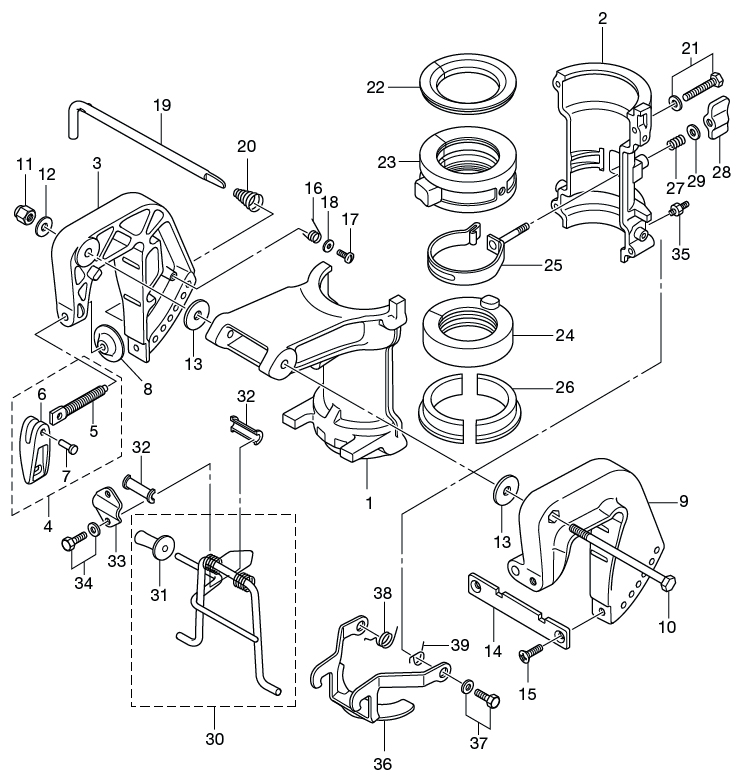

2010 :: 5 HP :: 4 Stroke Tohatsu MFS5B :: BRACKET & REVERSE LOCK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SWIVEL BRACKET A 3H6Q623910 3H6Q62391-0 $70.24 1
(2) SWIVEL BRACKET B 3H6Q623921 3H6Q62392-1 $32.06 1
(3) CLAMP BRACKET (RIGHT) 369Q621123 369Q62112-3 STERN BRACKET (RIGHT) / STARBOARD $57.36 1
(4) CLAMP SCREW ASSY 369Q621001 369Q62100-1 R $26.51 1
(4) CLAMP SCREW ASSY 369Q621001 369Q62100-1 L $26.51 1
(5) CLAMP SCREW 369621030M 369-62103-0 R $22.95 1
(5) CLAMP SCREW 369621030M 369-62103-0 L $22.95 1
(6) CLAMP SCREW HANDLE 307Q621021 307Q62102-1 R $9.29 1
(6) CLAMP SCREW HANDLE 307Q621021 307Q62102-1 L $9.29 1
(7) RIVET 3-22 3C8621042M 3C8-62104-2 R $0.92 1
(7) RIVET 3-22 3C8621042M 3C8-62104-2 L $0.92 1
(8) CLAMP SCREW PAD 332621010M 332-62101-0 R $3.36 1
(8) CLAMP SCREW PAD 332621010M 332-62101-0 L $3.36 1
(9) CLAMP BRACKET (LEFT) 369Q621132 369Q62113-2 STERN BRACKET (LEFT) / PORT $57.36 1
(10) BOLT 8-122 309621152M 309-62115-2 $9.92 1
(11) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 1
(12) WASHER 9401E30800M 9401E3-0800 $0.65 1
(13) WASHER 8.5-28-1 307621161M 307-62116-1 $1.93 2
(14) DISTANCE PLATE 3B2621180M 3B2-62118-0 $6.47 1 Sold Out View More Details
(15) SCREW 9216E30612M 9216E3-0612 $0.98 2
(16) CLAMP BRACKET SPRING 369621461M 369-62146-1 $2.31 1
(17) SCREW 9217030406M 920703-0406 $0.67 1
(18) WASHER 4.3-16-1.5 369621470M 369-62147-0 $0.76 1
(19) THRUST ROD 350621212M 350-62121-1 $20.96 1
(20) THRUST ROD SPRING 369621222M 369-62122-2 $1.85 1 Sold Out View More Details
(21) BOLT 9101E35640M 910113-5640 $1.68 4
(22) THRUST BUSHING 3H6623250M 3H6-62325-0 $9.92 1
(23) STEERING BUSHING (UPPER) 3H6613010M 3H6-61301-0 $22.91 1 Sold Out View More Details
(24) STEERING BUSHING (LOWER) 3H6624171M 3H6-62417-1 $18.34 1
(25) FRICTION BAND ASSY 3H9624181M 3H9-62441-0 $28.34 1
(26) THRUST PLATE B 3H6624240M 3H6-62424-0 $6.72 2
(27) CO-PILOT SPRING 3H9624460M 3H9-62446-0 $1.27 1
(28) WING NUT 3H9624420M 3H9-62442-0 $4.19 1
(29) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 1
(30) TILT STOPPER ASSY 3AS624310M 393S62431-2 $22.08 1
(31) TILT STOPPER GRIP 3AS624330M 393-62433-0 $1.82 1
(32) TILT STOPPER BUSHING 393624370M 393-62437-0 $2.25 2
(33) TILT STOPPER SETTING PLATE 369624391M 369-62439-1 $4.40 1
(34) BOLT 9101E35612M 910103-5612 $1.07 2
(35) GREASE FITTING 344671770M 344-67177-0 $2.56 2 Sold Out View More Details
(36) REVERSE LOCK ARM 3H6663130M 3H6-66313-0 $24.39 1
(37) BOLT 9101E35614M 9101E3-5614 $1.07 2
(38) REVERSE LOCK ARM SPRING (RIGHT) 369663380M 369-66338-0 $2.31 1
(39) REVERSE LOCK ARM SPRING (LEFT) 369663390M 369-66339-0 $2.31 1
