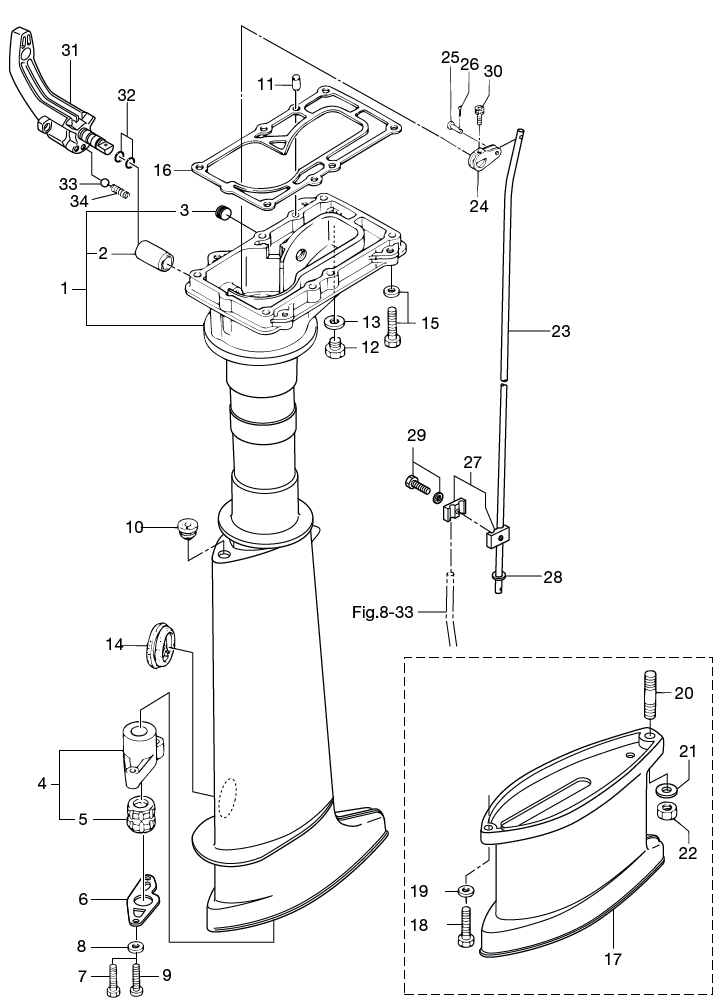

7. DRIVE SHAFT HOUSING & SHIFT

Click Here for Microfiche Usage Tip
(1) DRIVE SHAFT HOUSING ASSY (S)(1) DRIVE SHAFT HOUSING ASSY (L)(1) DRIVE SHAFT HOUSING ASSY (UL)(2) BUSHING SHIFT LEVER(3) EXHAUST PLUG(4) DRIVE SHAFT BUSHING ASSY(4) DRIVE SHAFT BUSHING ASSY(5) DRIVE SHAFT BUSHING(5) DRIVE SHAFT BUSHING(6) STOPPER DRIVE SHAFT(7) SCREW PRE-COATED 5-25(8) WASHER(9) SCREW(10) GROMMET CAM ROD(11) DOWEL PIN 6-12(12) BOLT(13) GASKET 8.1-15-1(14) GROMMET 29.3(15) BOLT(16) DRIVE SHAFT HOUSING GASKET(17) EXTENSION HOUSING(18) BOLT(19) WASHER(20) STUD BOLT(21) WASHER(22) NUT(23) SHIFT ROD (S)(23) SHIFT ROD (L)(24) SHIFT ROD LEVER(25) PIN SHIFT LEVER(26) SPLIT PIN(27) SHIFT ROD JOINT ASSY(28) WASHER(29) BOLT 5-16(30) BOLT(31) SHIFT LEVER(32) O-RING 1.9-8.8(33) CERAMIC BALL 7.7(34) SPRING SHIFT LEVER STOPPER



Parts List
2010 :: 5 HP :: 4 Stroke Nissan NSF5B :: DRIVE SHAFT HOUSING & SHIFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING S 3H6Q610200 3H6Q61020-0 FOR TRANSOM S $182.14 1
(1) DRIVE SHAFT HOUSING L 3H6Q610301 3H6Q61030-1 FOR TRANSOM L $211.69 1
(1) DRIVE SHAFT HOUSING ASSY (UL) 3ASQ610300 3ASQ61030-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(2) SHIFT LEVER BUSHING 301610210M 301-61021-0 $0.00 1 Sold Out View More Details
(3) EXHAUST PLUG 3H6072570M 3H6-07257-0 $3.68 1
(4) DRIVE SHAFT BUSHING ASSY 369643312M 369-64331-1 FOR TRANSOM L $41.45 1
(4) DRIVE SHAFT BUSHING ASSY 3AS643310M 3AS-64331-0 FOR TRANSOM UL $59.62 1
(5) DRIVE SHAFT BUSHING 369600030M 369-60003-0 FOR TRANSOM L $20.22 1 Sold Out View More Details
(5) DRIVE SHAFT BUSHING 3AB600030M 3AB-60003-0 FOR TRANSOM UL $53.53 1
(6) STOPPER 369643321M 369-64332-0 $3.39 1 Sold Out View More Details
(7) PRE-COATED SCREW 5-25 3H6643331M 3H6-64333-0 FOR TRANSOM L & UL $1.85 2
(8) WASHER 9401E30500M 9401E3-0500 $0.53 2
(9) SCREW 9215E30510M 9215E3-0510 FOR TRANSOM S $0.81 2
(10) GROMMET 369660431M 369-66043-1 $1.57 1
(11) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(12) BOLT 9106E30808M 910613-0808 $2.12 1
(13) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 1
(14) GROMMET 29-3 369610160M 369-61016-0 $3.27 1
(15) BOLT 9101E35630M 9101E3-5630 $1.15 6 Sold Out View More Details
(16) DRIVE SHAFT HOUSING GASKET 3H6610120M 3H6-61012-0 $5.92 1
(17) EXTENSION HOUSING 369Q611102 369Q61110-2 FOR TRANSOM UL $82.17 1
(18) BOLT 9161E30625M 9161E3-0625 $1.04 1
(19) WASHER 9401E30600M 9401E3-0600 $0.00 1 Sold Out View More Details
(20) STUD 9152E30825M 9152E3-0825 $2.62 1
(21) WASHER 9401E30800M 9401E3-0800 $0.65 1
(22) NUT 9301030800M 930103-0800 $1.99 1
(23) SHIFT ROD S 369662140M 369-66214-0 FOR TRANSOM S $16.10 1
(23) SHIFT ROD L UL 369662150M 369-66215-0 FOR TRANSOM L $17.49 1
(24) SHIFT ROD LEVER 369662250M 369-66225-0 $4.38 1
(25) SHIFT LEVER PIN 369662230M 369-66223-0 $2.07 1
(26) SPLIT PIN 1.2-10 9515031210M 951503-1210 $0.00 1 Sold Out View More Details
(27) SHIFT ROD JOINT 369662410M 369-66241-0 $9.20 1
(28) WASHER 9401030600M 940103-0600 $0.70 1
(29) BOLT 9101035616M 910103-5616 $1.15 1
(30) BOLT 9109036416M 910903-6416 $0.81 1
(31) SHIFT LEVER 3H6661100M 3H6-66110-0 $21.35 1
(32) O-RING 1.9-8.8 301661360M 301-66136-0 $1.41 2
(33) CERAMIC BALL 7.7 369661160M 369-66116-0 $1.85 1
(34) SPRING 369661121M 369-66112-1 $1.61 1
