6. MAGNETO

Click Here for Microfiche Usage Tip

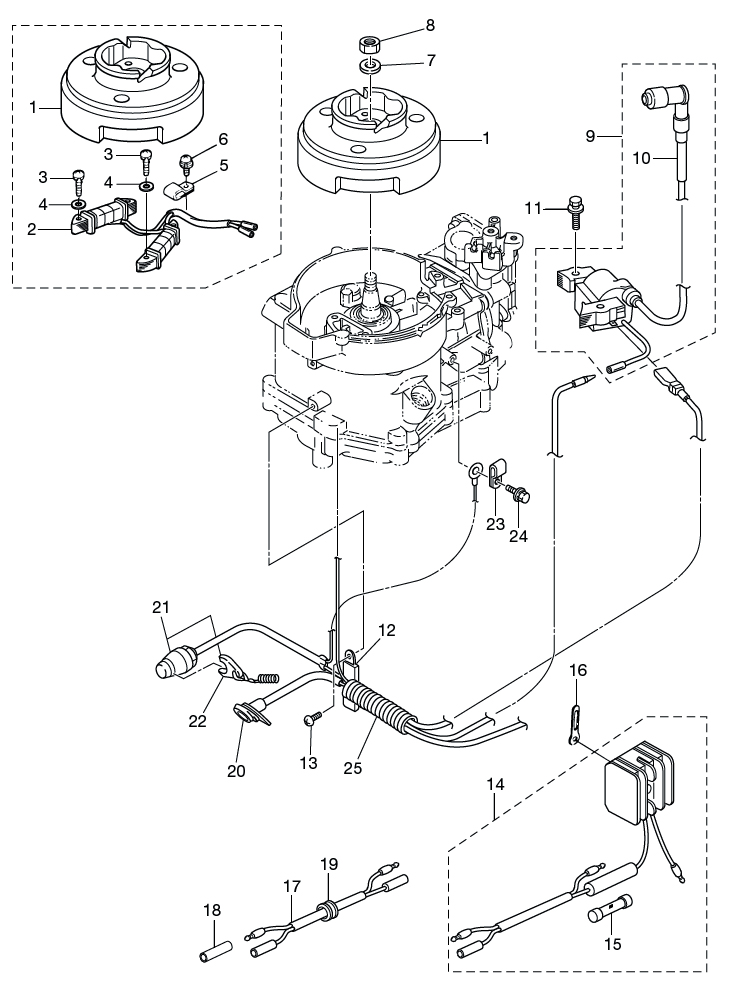

(1) FLYWHEEL MF54 (MARK48)(1) FLYWHEEL MF54 (MARK48)(1) FLYWHEEL MF54 (MARK50)(1) FLYWHEEL MF54 (MARK50)(2) ALTERNATOR ASSY(3) SCREW(3) SCREW(4) WASHER(4) WASHER(5) CLAMP 4.2-3-8(6) SCREW(7) WASHER(8) NUT 12-P1.25(9) IGNITER W/R-CAP(10) PLUG CAP W/RESISTANCE(11) BOLT(12) CLAMP 6.5-67P(12) CLAMP 6.5-47.5P(13) SCREW(14) RECTIFIER COMPLETE(15) FUSE (10A)(16) CLAMP 7-80P(17) BATTERY CABLE L=494(18) CABLE TERMINAL PLUG(19) GROMMET 17-3(20) PILOT LAMP ASSY(21) STOP SWITCH ASSY(22) STOP SWITCH LANYARD ASSY (W/CURL)(23) CLAMP 6.5-14(24) BOLT W/WASHER(25) PROTECTOR WIRE HARNESS(25) PROTECTOR WIRE HARNESS



Parts List
2010 :: 4 HP :: 4 Stroke Tohatsu MFS4B :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP MF54 (MARK 48) 3AS060090M 3AS-06009-0 STD / WITH OUT ALTERNATOR $0.00 1 Sold Out View More Details
(1) FLYWHEEL CUP MFS54 (MARK 50) 3AS060010M 3AS-06001-0 FOR SAIL PRO / (WITH ALTERNATER) $175.63 1
(1) FLYWHEEL CUP MF54 (MARK 48) 3AS060090M 3AS-06009-0 STD / WITH OUT ALTERNATOR $0.00 1 Sold Out View More Details
(1) FLYWHEEL CUP MFS54 (MARK 50) 3AS060010M 3AS-06001-0 FOR SAIL PRO / (WITH ALTERNATER) $175.63 1
(2) ALTERNATOR (12V60W) 3AS060230M 3AS-06023-0 12V60W $76.04 1
(3) SCREW 9215030525M 921503-0525 $0.90 4
(4) WASHER 9401030500M 940103-0500 $0.53 4
(5) CLAMP 4.2-3-8 369069150M 369-06915-0 $2.31 1
(6) SCREW 9215216408M 921521-6408 WITH ALTERNATOR SAIL PRO ONLY $0.63 1
(7) WASHER 9401211200M 940121-1200 $0.97 1
(8) NUT 12-P1.25 369001320M 369-00132-0 $1.61 1
(9) IGNITER W/R-CAP 3AS060410M 3AS-06047-0 $142.35 1
(10) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 $25.93 1
(11) BOLT 9101035630M 910113-5630 $1.15 2
(12) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 2
(12) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(13) SCREW 9215030612M 921513-0612 $0.93 1
(14) RECTIFIER 369760601M 369-76060-1 $48.83 1
(15) FUSE (10A) 334762110M 334-76211-0 $1.90 1
(16) CLAMP 7-80P 353069720M 353-06972-0 $2.19 1
(17) BATTERY CABLE L=494 399761200M 399-76120-0 $16.24 1
(18) CABLE TERMINAL PLUG 3H6760370M 3H6-76037-0 $1.93 1
(19) GROMMET 17 - 3 345662260M 345-66226-0 WITH ALTERNATOR SAIL PRO ONLY $3.91 1 Sold Out View More Details
(20) WARNING LAMP 3H6710400M 3H6-71040-0 $19.55 1
(21) STOP SWITCH 3AS068700M 3AS-06870-0 $45.96 1
(22) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(23) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(24) BOLT 9101035612M 910103-5612 $1.07 1
(25) PROTECTOR 3H6061330M 3H6-06133-0 FOR SEPARATE TANK MODEL $2.53 1
(25) WIRE HARNESS PROTECTOR 3H9061330M 3H9-06133-0 FOR INTEGRAL TANK MODEL $0.00 1 Sold Out View More Details
