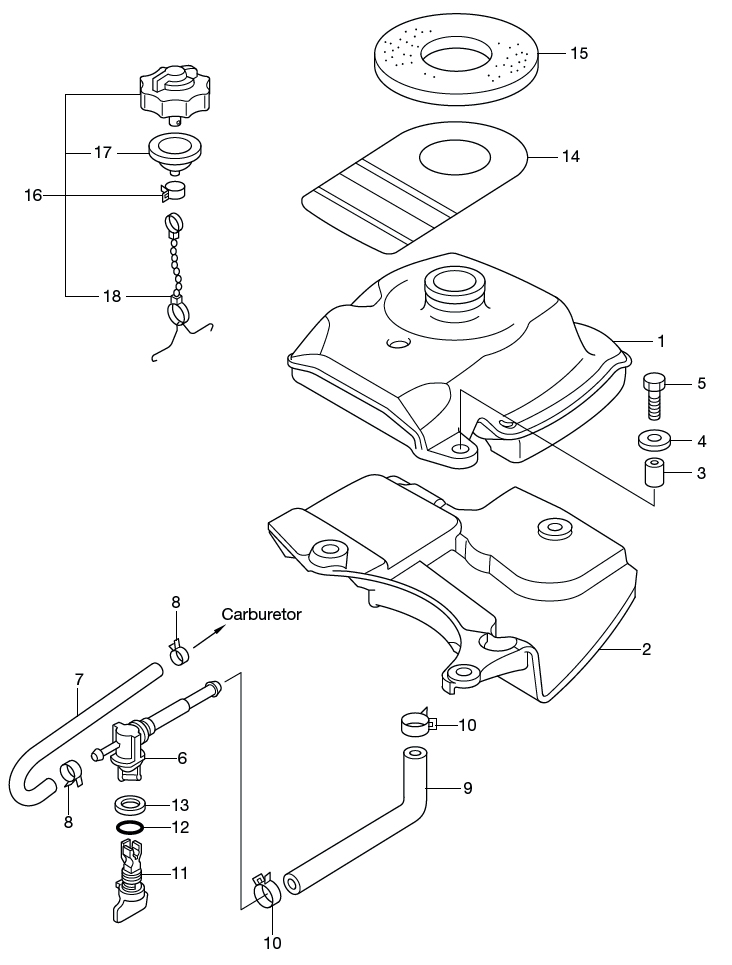

15. INTEGRAL FUEL TANK

Click Here for Microfiche Usage Tip
(1) FUEL TANK ASSY(2) COVER FUEL TANK(3) COLLAR 6.2-9-10.7(4) WASHER 6-16-1.5(5) BOLT(6) FUEL COCK ASSY(7) FUEL HOSE(8) CLIP o9.5(8) CLIP o9.5(9) FUEL HOSE(10) CLIP o15(10) CLIP o15(11) FUEL COCK KNOB(12) O-RING 2.0-10.0(13) SEAL RING FUEL COCK ROD KNOB(14) CAUTION TAG (B)(15) FUEL TANK SEAL(16) FUEL TANK CAP ASSY(17) TANK FILLER CAP GASKET(18) HOOK TANK CAP



Parts List
2010 :: 3.5 HP :: 4 Stroke Tohatsu MFS3.5B :: INTEGRAL FUEL TANK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL TANK ASSY 3AB703101M 3AB-70310-1 $68.08 1 Sold Out View More Details
(2) COVER 3AB068461M 3AB-06846-0 $20.59 1
(3) COLLAR 6.2-9-10.7 3T5760790M 3T5-76079-0 $1.75 3
(4) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 3
(5) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 $0.95 3
(6) FUEL COCK 369703110M 369-70311-0 $29.88 1
(7) FUEL HOSE 155-20-20 3GT703260M 3GT-70326-0 $5.53 1
(8) CLIP ø 9.5 3AB351430M 121-35143-0 $1.30 2
(9) FUEL HOSE L=215 3GT703250M 3GT-70325-0 $9.89 1
(10) CLIP 15 3AB022151M 3AB-02215-1 $2.71 2
(11) FUEL COCK KNOB 3GT700620M 3GT-70062-0 $3.91 1
(12) O-RING 2-10 3G9661360M 3G9-66136-0 $1.59 1
(13) SEAL RING 369700630M 369-70063-0 $2.56 1
(14) CAUTION TAG B 3AB721830M 3AB-72183-0 $4.38 1
(15) FUEL TANK SEAL 3AB700360M 3AB-70036-0 $8.05 1
(16) FUEL TANK CAP 3R6703200M 3R6-70320-0 $14.44 1 Sold Out View More Details
(17) TANK CAP GASKET 309700213M 309-70021-3 $3.64 1
(18) TANK CAP HOOK 3C8710170M 3C8-71017-0 $10.12 1
