11. CLAMP BRACKET SWIVEL BRACKET

Click Here for Microfiche Usage Tip

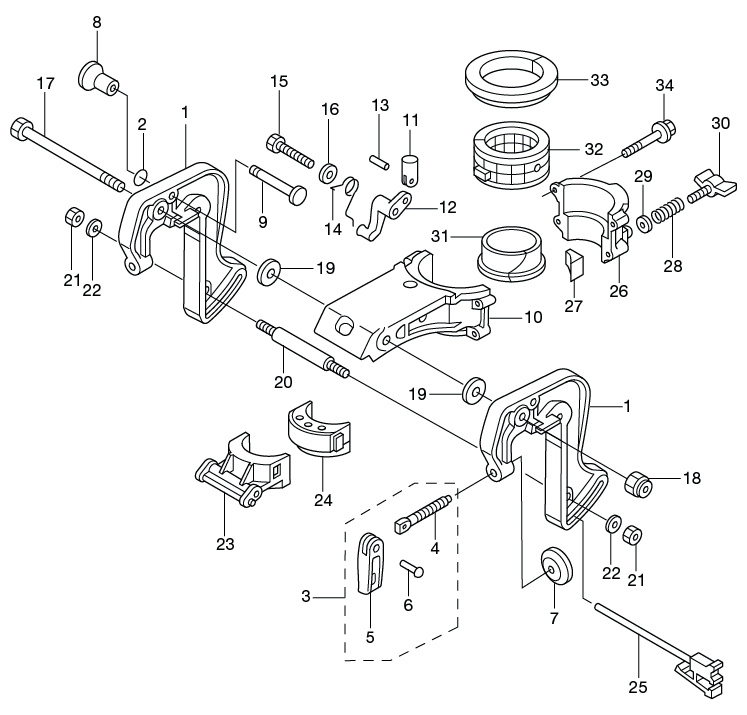

(1) CLAMP BRACKET(1) CLAMP BRACKET(2) O-RING 2.4-9.5(3) CLAMP SCREW ASSY(4) CLAMP SCREW(5) CLAMP SCREW HANDLE(6) RIVET 3-22(7) CLAMP SCREW PAD(8) KNOB TILT STOPPER(9) TILT STOPPER(10) SWIVEL BRACKET A(11) STOPPER(12) LEVER(13) SPRING PIN 2-12(14) SPRING(15) BOLT(16) WASHER(17) BOLT 8-122(18) NYLON NUT 8P1.25(19) WASHER 8.5-28-1(19) WASHER 8.5-28-1(20) DISTANCE PIECE(21) NUT(21) NUT(22) WASHER(22) WASHER(23) THRUST SUPPORTER(24) DAMPER (LOWER)(25) THRUST ROD ASSY(26) SWIVEL BRACKET B(27) FRICTION PIECE(28) SPRING FRICTION PLATE(29) WASHER(30) SCREW FRICTION PLATE(31) BUSHING PIVOT(32) BUSHING UPPER STEERING(33) THRUST BUSHING(34) BOLT



Parts List
2010 :: 2.5 HP :: 4 Stroke Nissan NSF2.5B :: CLAMP BRACKET SWIVEL BRACKET
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET 3ABQ621112 3ABQ62111-0 $41.59 2 Sold Out View More Details
(2) O-RING 2.4-9.5 301660230M 301-66023-0 $1.02 1
(3) CLAMP SCREW ASSY 3AB621000M 3AB-62100-0 $26.51 2
(4) CLAMP SCREW 369621030M 369-62103-0 $22.95 2
(5) CLAMP SCREW HANDLE 3AB621020M 3AB-62102-0 $9.29 2
(6) RIVET 3-22 3C8621042M 3C8-62104-2 $0.92 2
(7) CLAMP SCREW PAD 332621010M 332-62101-0 $3.36 2
(8) TILT STOPPER KNOB 309624630M 309-62463-0 $4.19 1
(9) TILT STOPPER 3AB624643M 3AB-62464-3 $0.00 1 Sold Out View More Details
(10) SWIVEL BRACKET 3ABQ623911 3ABQ62391-0 $55.89 1
(11) STOPPER 3AB663341M 3AB-66334-1 $0.00 1 Sold Out View More Details
(12) LEVER 3AB630680M 3AB-63068-0 $2.70 1
(13) SPRING PIN 2-12 9514030212M 951403-0212 $0.70 1
(14) SPRING 3AB663360M 3AB-66336-0 $4.69 1
(15) BOLT 9161E30650M 916113-0650 $2.42 1
(16) WASHER 9401E30600M 9401E3-0600 $0.00 1 Sold Out View More Details
(17) BOLT 8-122 309621152M 309-62115-2 $9.92 1
(18) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 1
(19) WASHER 8.5-28-1 307621161M 307-62116-1 $1.93 2
(20) DISTANCE PIECE 309621180M 309-62118-0 $7.05 1
(21) NUT 9301E30600M 9301E3-0600 $0.52 2 Sold Out View More Details
(22) WASHER 9401E30600M 9401E3-0600 $0.00 2 Sold Out View More Details
(23) THRUST SUPPORTER 3AB622120M 3AB-62212-0 $5.25 1
(24) DAMPER (LOWER) 3AB613361M 3AB-61336-0 $23.56 1
(25) THRUST ROD 3F0621600M 3F0-62160-0 $12.08 1
(26) SWIVEL BRACKET 3ABQ623921 3ABQ62392-0 $30.92 1
(27) FRICTION PLATE 309624412M 309-62441-2 $5.55 1
(28) FRICTION PLATE SPRING 309624461M 309-62446-1 $1.59 1
(29) WASHER 9401E30600M 9401E3-0600 $0.00 1 Sold Out View More Details
(30) FRICTION PLATE SCREW 309Q624422 309Q62442-2 $8.17 1
(31) BUSHING 3AB623211M 3AB-62321-1 $4.51 1
(32) STEERING BUSHING 393624160M 393-62416-0 $12.66 1
(33) THRUST BUSHING 3H6623250M 3H6-62325-0 $9.92 1
(34) BOLT 6-35 PRE-COATED 3V1600011M 3V1-60001-1 $3.43 4
