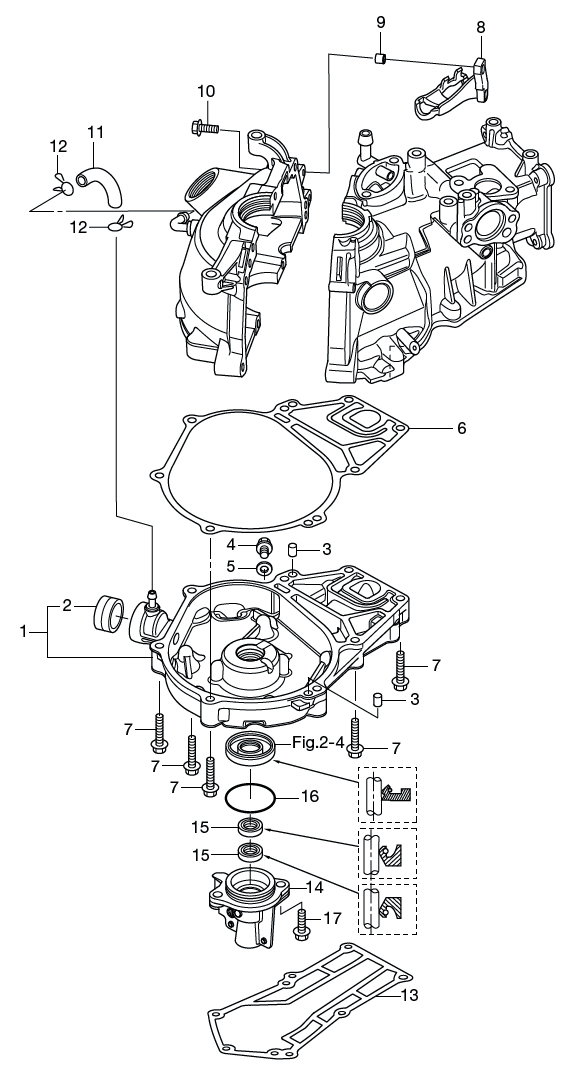

3. OIL PAN

Click Here for Microfiche Usage Tip
(1) OILPAN ASSY(2) OIL SIGHT GAUGE(3) DOWEL PIN 6-12(3) DOWEL PIN 6-12(4) DRAIN BOLT(5) WASHER 10.2-19-1(6) OILPAN GASKET(7) BOLT(7) BOLT(7) BOLT(7) BOLT(7) BOLT(8) BRACKET STOPPER(9) COLLAR 6.2-9-7.4(10) BOLT(11) HOSE(12) CLIP FUEL PIPE o10(12) CLIP FUEL PIPE o10(13) DRIVE SHAFT HOUSING GASKET(14) CRANKCASE HEAD(15) OIL SEAL 10.1-20-7(15) OIL SEAL 10.1-20-7(16) O-RING 2.4-35.2(17) BOLT



Parts List
2010 :: 2.5 HP :: 4 Stroke Nissan NSF2.5B :: OIL PAN
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) OIL PAN ASSY 3ABB074000 3ABB07400-0 $166.58 1
(2) OIL LEVEL GAUGE 3AB074210M 3AB-07421-0 $8.63 1
(3) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(4) DRAIN BOLT 10-14 P1.25 3H6077051M 3H6-07405-0 $4.15 1
(5) WASHER 10.2-19-1 3H6074060M 3H6-07406-0 $1.30 1
(6) OIL PAN GASKET 3AB074020M 3AB-07402-0 $17.65 1
(7) BOLT 9101F45635M 9101F4-5635 $1.96 8 Sold Out View More Details
(8) BRACKET 3GT051010M 3GT-05101-0 $13.62 1
(9) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 2 Sold Out View More Details
(10) BOLT 9101E35620M 910113-5620 $1.30 2
(11) HOSE 98AB50080M 98AB-5-0080 98AB-501000 $11.41 1
(12) CLIP ø10 338022150M 338-02215-0 $1.41 2
(13) DRIVE SHAFT HOUSING GASKET 3AB610120M 3AB-61012-0 $8.63 1
(14) CRANK CASE HEAD 3AB012100M 3AB-01210-0 $18.13 1
(15) OIL SEAL 10.1-20-7 3AB012150M 3AB-01215-0 $11.18 2
(16) O-RING 2.4-35.2 3V1020120M 3V1-02012-0 $1.18 1
(17) BOLT 9101E35620M 910113-5620 $1.30 2
