10. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip

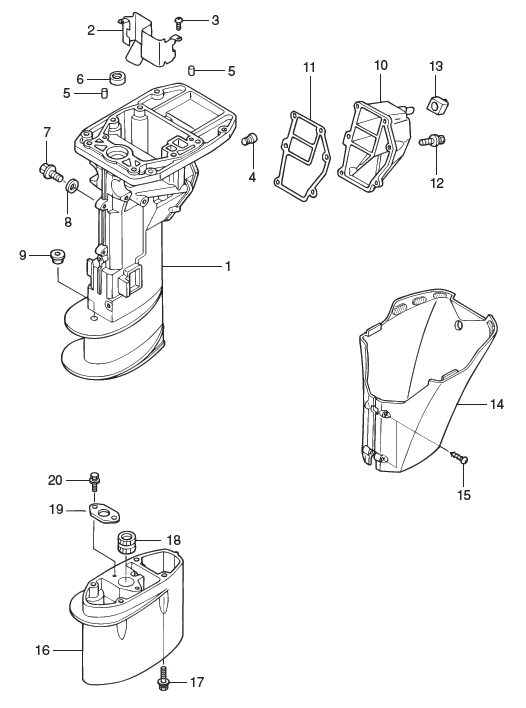

(1) DRIVE SHAFT HOUSING "S"(1) DRIVE SHAFT HOUSING "L"(2) GUIDE PLATE(3) SCREW(4) EXHAUST PLUG(5) DOWEL PIN, 6-12(5) DOWEL PIN, 6-12(6) OIL SEAL,12-28-5(7) DRAIN BOLT(8) WASHER, 14.5-24-1(9) GROMMET(10) IDLE EXHAUST PORT COVER(11) IDLE EXHAUST PORT COVER GASKET(12) BOLT(13) IDLE EXHAUST PORT GROMMET(14) APRON(15) TAPPING SCREW, 5-30(16) EXTENSION HOUSING "UL"(17) BOLT, 6-35 PRE-COATED(18) DRIVE SHAFT BUSHING(19) BUSHING STOPPER(20) BOLT



Parts List
2009 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING ASSY (S) 3V1Q610201 3V1Q61020-1 SHORT $198.78 1
(1) DRIVE SHAFT HOUSING L 3V1Q610300 3V1Q61030-0 LONG $215.97 1
(2) GUIDE PLATE 3V1074401M 3V1-07440-1 OR 3V1-07440-0 $9.64 1
(3) SCREW 9215036510M 921503-6510 $0.49 2
(4) EXHAUST PLUG 3H6072570M 3H6-07257-0 $3.68 1
(5) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(6) OIL SEAL 12-28-5 3B2012150M 3B2-01215-0 $5.69 1
(7) DRAIN BOLT 3R3074051M 3R3-07405-1 $7.32 1
(8) WASHER 14.5-24-1 3R3074060M 3R3-07406-0 $0.83 1
(9) GROMMET 369660431M 369-66043-1 $1.57 1
(10) IDLE EXHAUST PORT COVER 3V1612080M 3V1-61208-0 $0.00 1 Sold Out View More Details
(11) IDLE EXHAUST PORT COVER GASKET 3V1612200M 3V1-61220-0 $9.80 1
(12) BOLT 9101E35620M 910113-5620 OR 910113-5620 $1.30 6
(13) IDLE EXHAUST PORT GROMMET 3V1612120M 3V1-61212-0 $2.95 1
(14) APRON 3V1Q612250 3V1Q61225-0 $147.15 1
(15) TAPPING SCREW 5-30 3F3024230M 3F3-02423-0 FOR TRANSOM UL $1.41 2
(16) EXTENSION HOUSING UL 3B2Q611102 3B2Q61110-2 FOR TRANSOM UL $199.32 1
(17) BOLT 6-35 3V2600010M 3V1-60001-0 FOR TRANSOM UL $3.43 4
(18) DRIVE SHAFT BUSHING 3B2600031M 3B2-60003-1 FOR TRANSOM UL $62.11 1
(19) BUSHING STOPPER 3V1643320M 3V1-64332-0 FOR TRANSOM UL $5.18 1 Sold Out View More Details
(20) BOLT 9101E35612M 910103-5612 FOR TRANSOM UL / OR 910113-5612 $1.07 2
