8. MAGNETO

Click Here for Microfiche Usage Tip

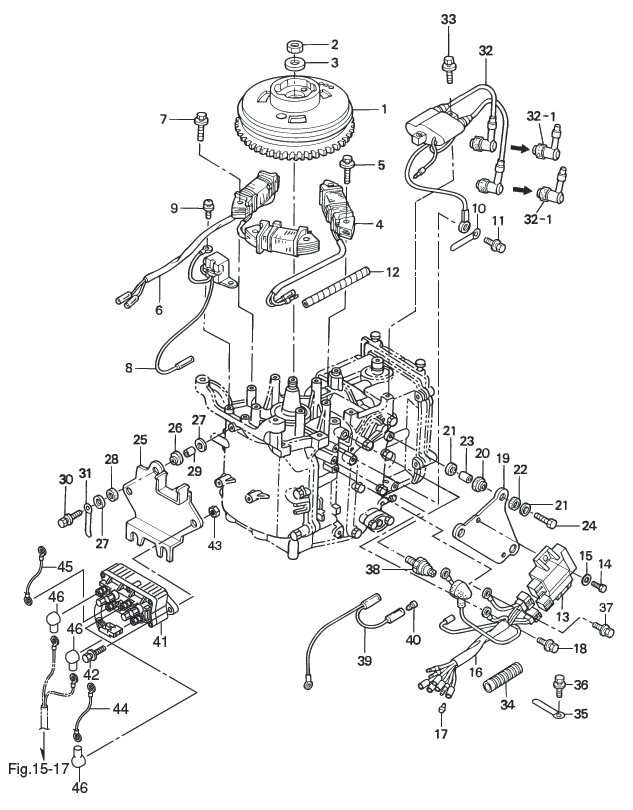

(1) FLYWHEEL CUP(2) NUT, 12-P1.25(3) WASHER(4) EXCITER COIL(5) BOLT(6) ALTERNATOR(7) BOLT(8) PULSER COIL(9) SCREW(10) CLAMP, 6.5-47.5P(11) BOLT(12) SPIRAL TUBE PROTECTOR (o 10-100)(13) C.D. UNIT (CU7256)(14) BOLT, 6-16 PRE-COATED(15) WASHER, 6-16-1.5(16) C.D. UNIT CORD ASSV(17) CABLE TERMINAL PLUG(18) BOLT(19) C.D. UNIT BRACKET(20) RUBBER MOUNT, 8.5-18-7(21) WASHER, 6-16-1.5(21) WASHER, 6-16-1.5(22) RUBBER MOUNT, 9-16-4.3(23) COLLAR, 6.2-9-7.4(24) BOLT(25) ELECTRIC BRACKET(26) RUBBER MOUNT, 8.5-18-7(27) WASHER, 6-16-1.5(27) WASHER, 6-16-1.5(28) RUBBER MOUNT, 9-16-4.3(29) COLLAR, 6.2-9-7.4(30) BOLT(31) CLAMP, 6.5-87P(32) IGNITION COIL(32-1) PLUG CAP ( WITH RESISTANCE)(32-1) PLUG CAP ( WITH RESISTANCE)(33) BOLT(34) PROTECTOR(35) CLAMP, 6.5-87P(36) BOLT(37) BOLT(38) OIL PRESSURE SWITCH(39) SEPARATE CORD (BLACK)(40) CABLE TERMINAL PLUG(41) POWER TILT SOLENOID SWITCH "A"(42) BOLT(43) NUT(44) SOLENOID SWITCH CORD "A"(45) SOLENOID SWITCH CORD "B"(46) TERMINAL CAP(46) TERMINAL CAP(46) TERMINAL CAP



Parts List
2009 :: 9.8 HP :: 4 Stroke Nissan NSF9.8A3 :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP 3AA060910M 3AA-06091-0 # 031096XD~ / FF-51 WITH RING GEAR $279.34 1
(2) NUT 12-P1.25 369001320M 369-00132-0 $1.61 1
(3) WASHER 9401211200M 940121-1200 $0.97 1
(4) EXCITER COIL 3AA060210M 3AA-06021-0 # 031096XD~ $48.03 1
(5) BOLT 9101035630M 910113-5630 $1.15 2
(6) ALTERNATER 3AA060230M 3AA-06023-0 # 031096XD~ / FOR EF/EFT & EP/EPT $61.59 1
(7) BOLT 9101035630M 910113-5630 FOR EF/EFT & EP/EPT $1.15 4
(8) PULSER COIL 3V1060710M 3V1-06071-0 $29.97 1
(9) SCREW 9215030512M 921503-5512 $0.83 2
(10) CLAMP 6.5-47.5P 309069720M 309-06972-0 ALTERNATOR & EXCITER CABLE $2.07 1
(11) BOLT 9101035616M 910103-5616 $1.15 1
(12) SPIRAL TUBE PROTECTOR 3V1761480M 3V1-76148-0 FOR EF/EFT & EP/EPT / ALTERNATOR & EXCITER CABLE $6.21 1
(13) C.D. UNIT (CU7256) 3AA060600M 3AA-06060-0 # 031096XD~ $165.19 1
(14) BOLT 6-16 PRECOATED 3V1601080M 3V1-60108-0 OLD PART NO. 3V1-06864-0 $1.43 2
(15) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(16) C.D. UNIT CORD ASSY 3AA061670M 3AA-06167-0 # 031096XD~ $82.60 1
(17) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 LIGHT GREEN & WHITE CABLE $1.50 2
(18) BOLT 9101035612M 910103-5612 GROUND CABLE $1.07 1
(19) CD UNIT BRACKET 3V1060611M 3V1-06061-1 OR 3V1-06061-0 $0.00 1 Sold Out View More Details
(20) RUBBER MOUNT 8.5-18-7 3T5069200M 3T5-06920-0 $1.04 3
(21) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 6 Sold Out View More Details
(22) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 $0.92 3
(23) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 3 Sold Out View More Details
(24) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 OR 910113-0625 $0.95 3
(25) ELECTRIC BRACKET ASSY 3V1069001M 3V1-06900-1 OR 3V1-06900-0 / FOR EF/EFT & EP/EPT $23.60 1
(26) RUBBER MOUNT 8.5-18-7 3T5069200M 3T5-06920-0 FOR EF/EFT & EP/EPT $1.04 3
(27) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 FOR EF/EFT & EP/EPT $1.59 6 Sold Out View More Details
(28) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 FOR EF/EFT & EP/EPT $0.92 3
(29) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 FOR EF/EFT & EP/EPT $2.21 3 Sold Out View More Details
(30) BOLT 9101E30620M 9101E3-0620 OR 910113-0620 / FOR EF/EFT & EP/EPT $1.04 3
(31) CLAMP 6.5-87P 3T4069721M 3T4-06972-1 OR 3T4-06972-0 / FOR EP/EPT $1.53 1
(32) IGNITION COIL 3V1060400M 3V1-06040-0 $54.23 1
(32-1) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 $25.93 2
(33) BOLT 9101035625M 910103-5625 $1.47 2
(34) PROTECTOR 3V1061330M 3V1-06133-0 ø34-70 / FOR MF $3.62 1
(35) CLAMP 6.5-87P 3T4069721M 3T4-06972-1 OR 3T4-06972-0 / FOR MF $1.53 1
(36) BOLT 9101E35612M 910103-5612 OR 910113-5612 / FOR MF $1.07 1
(37) BOLT 9101035612M 910103-5612 FOR MF $1.07 1
(38) OIL PRESSURE SWITCH 3H6076110M 3H6-07611-0 $17.57 1
(39) SEPARATE CORD ( BLACK) 3V5726780M 3V5-72678-0 $6.84 1
(40) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 $1.50 1
(41) POWER TILT SOLENOID SWITCH A 3Z0725800M 3Z0-72580-0 FOR EFT/EPT $126.92 1
(42) BOLT 9101E35620M 910113-5620 OR 910103-5620 / FOR EFT/EPT $1.30 2
(43) NUT 9301E30600M 9301E3-0600 OR 930103-0600 / FOR EFT/EPT $0.52 2 Sold Out View More Details
(44) CORD A 3C8725820M 3C8-72582-0 FOR EFT/EPT $4.38 1
(45) CORD B SOLENOID SWITCH 3C8725831M 3C8-72583-1 FOR EFT/EPT $4.83 1
(46) TERMINAL CAP 3Y1761450M 3Y1-76145-0 FOR EFT/EPT $2.25 3
