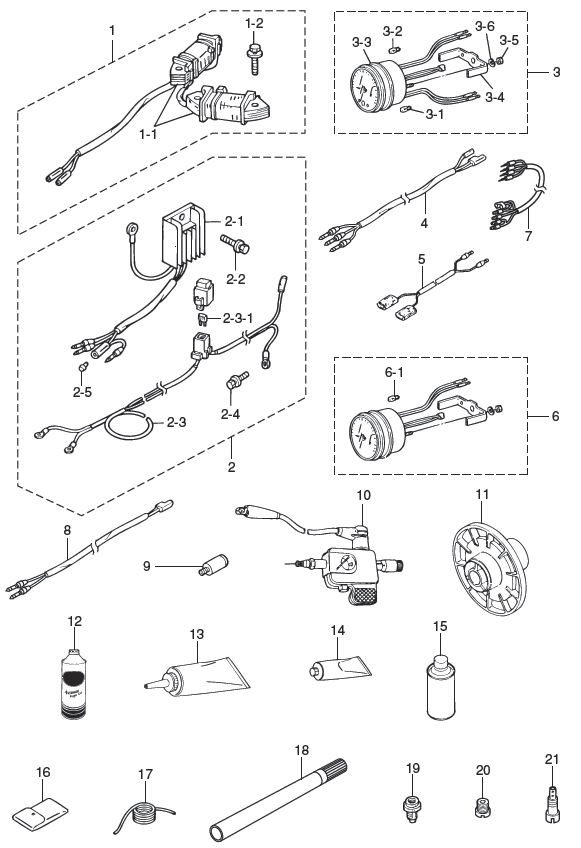

26. OPTIONAL PARTS (ACCESSORIES)

Click Here for Microfiche Usage Tip
(1) ALTERNATOR KIT(1-1) ALTERNATOR(1-2) BOLT(2) RECTIFIER KIT(2-1) RECTIFIER(2-2) BOLT(2-3) EXTENSION CORD(2-3-1) FUSE (20A)(2-4) BOLT(2-5) CABLE TERMINAL PLUG(3) TACHOMETER (WITH OIL LAMP)(3-1) OIL BULB, 12V-1.7W(3-2) METER BULB, 12V-1.7W(3-3) METER DAMPER(3-4) FITTING PLATE(3-5) NUT(3-6) SPRING WASHER(4) TACHOMETER LEAD CABLE(5) METER LEAD CABLE(6) TACHOMETER (WITH OUT OIL LAMP)(6-1) METER BULB, 12V-1.7W(7) METER LEAD WIRE(8) TACHOMETER LEAD CABLE(9) FLUSHING ATTACHMENT(10) SPARK TESTER(11) TEST PROPELLER(12) TOHATSU 4-CYCLE FCW OIL (12-QUARTS)(12) TOHATSU 4-CYCLE FCW OIL (6-GALLONS)(12) NISSAN 4-CYCLE FCW OIL (12-QUARTS)(12) NISSAN 4-CYCLE FCW OIL (6-GALLONS)(13) TOHATSU GEAR LUBE (12-QUARTS)(13) TOHATSU GEAR LUBE (5 GAL PAIL)(13) TOHATSU GEAR LUBE (16 GAL DRUM)(13) NISSAN GEAR LUBE (12-QUARTS)(13) NISSAN GEAR LUBE (5 GAL PAIL)(13) NISSAN GEAR LUBE (16 GAL DRUM)(14) TOHATSU GREASE (10-14 OZ. CARTRIDGE)(14) NISSAN GREASE (10-14 OZ. CARTRIDGE)(15) TOUCH-UP PAINT (AQUAMARINE BLUE)(16) TOOL KIT(17) SAFTY ROPE(18) LONG HANDLE (1.0M)(18) LONG HANDLE (0.8M)(19) THERMOSTAT (70�C)(20) MAIN JET (# 74)(20) MAIN JET (# 72)(20) MAIN JET (# 69)(20) MAIN JET (# 67)(20) MAIN JET (# 90)(20) MAIN JET (# 87)(21) SLOW JET (# 38)(21) SLOW JET (# 37)(21) SLOW JET (# 36)(21) SLOW JET (# 35)



Parts List
2009 :: 8 HP :: 4 Stroke Nissan NSF8A3 :: OPTIONAL PARTS (ACCESSORIES)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ALTERNATOR KIT 3V2061280M 3V2-06128-0 # 031096XD~ / FOR MF $53.30 1
(1-1) ALTERNATER 3AA060230M 3AA-06023-0 $65.90 1
(1-2) BOLT 9101035630M 910113-5630 $1.22 4 Sold Out View More Details
(2) RECTIFIER KIT 3V2761600M 3V2-76160-0 $130.69 1
(2-1) RECTIFIER 3AA760650M 3AA-76065-0 $109.26 1
(2-2) BOLT 9101035616M 910103-5616 $1.22 1 Sold Out View More Details
(2-3) EXTENTION CORD 3AA761610M 3AA-76161-0 L=2150 $0.00 1 Sold Out View More Details
(2-3-1) FUSE (20A) 3T5762470M 3T5-76247-0 $3.20 2
(2-4) BOLT 9101035610M 910103-5610 $1.10 1 Sold Out View More Details
(2-5) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 RECTIFIER RED CABLE $1.61 1
(3) TACHOMETER (WITH OIL LAMP) 3N8726401M 3B7-72640-1 FOR EP/EPT $0.00 1 Sold Out View More Details
(3-1) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 FOR EP/EPT $3.50 1
(3-2) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(3-3) METER DAMPER 3B7726560M 3B7-72656-0 $3.50 1
(3-4) FITTING PLATE 3B7726610M 3B7-72661-0 $27.10 1
(3-5) NUT 9301030500M 930103-0500 $0.92 2
(3-6) SPRING WASHER 9413030500M 941303-0500 $0.97 2
(4) TACHOMETER LEAD CABLE 3V1725390M 3V1-72539-0 L=6000 / FOR EP $0.00 1 Sold Out View More Details
(5) METER LEAD CABLE 353725370M 353-72537-0 L=1500 / FOR EP $24.62 1
(6) TACHOMETER (WITHOUT OIL LAMP) 3B7725302M 3B7-72530-1 FOR MF & EF/EFT $0.00 1 Sold Out View More Details
(6-1) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(7) METER LEAD WIRE L=2000 3A3725371M 3A3-72537-1 L=2000 / FOR EPT $32.87 1
(8) TACHOMETER LEAD CABLE 361725390M 361-72539-0 L=6000 / FOR MF & EF/EFT $54.19 1 Sold Out View More Details
(9) FLUSHING ATTACHMENT 336600070M 336-60007-0 $8.61 1 Sold Out View More Details
(10) SPARK TESTER 3F3725400M 3F3-72540-0 $181.77 1
(11) TEST PROPELLER 3B2641101M 3B2-64110-1 $271.17 1
(12) TOHATSU 4-CYCLE FCW OIL (12-QUARTS) 332823080M 332823080M QUARTS - 12 PER CASE $132.74 1
(12) TOHATSU 4-CYCLE FCW OIL (6-GALLONS) 332823050M 332823050M GALLONS - 6 PER CASE $158.85 1 Sold Out View More Details
(12) NISSAN 4-CYCLE FCW OIL (12-QUARTS) 332823070M 332823070M QUARTS - 12 PER CASE $132.74 1
(12) NISSAN 4-CYCLE FCW OIL (6-GALLONS) 332823020M 332823020M GALLONS - 6 PER CASE $158.85 1 Sold Out View More Details
(13) TOHATSU GEAR LUBE (12-QUARTS) 332823100M 332823100M QUARTS - 12 PER CASE $150.31 1
(13) TOHATSU GEAR LUBE (5 GAL PAIL) 332823120M 332823120M 5 GALLON PAIL $214.27 1
(13) TOHATSU GEAR LUBE (16 GAL DRUM) 332823140M 332823140M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(13) NISSAN GEAR LUBE (12-QUARTS) 332823090M 332823090M QUARTS - 12 PER CASE $150.31 1
(13) NISSAN GEAR LUBE (5 GAL PAIL) 332823110M 332823110M 5 GALLON PAIL $214.27 1
(13) NISSAN GEAR LUBE (16 GAL DRUM) 332823130M 332823130M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(14) TOHATSU GREASE (10-14 OZ. CARTRIDGE) 332823180M 332823180M 14OZ. CARTRIDGES - 10 PER CASE $0.00 1 Sold Out View More Details
(14) NISSAN GREASE (10-14 OZ. CARTRIDGE) 332823170M 332823170M 14OZ. CARTRIDGES - 10 PER CASE $0.00 1 Sold Out View More Details
(15) TOUCH-UP PAINT (AQUAMARINE BLUE) 3AC723260M 3AC-72326-0 N.A.F.N. $39.11 1
(16) TOOL 3H6721000M 3H6-72100-0 $30.02 1
(17) ROPE 3B7722010M 3B7-72201-0 $5.43 1
(18) LONG HANDLE 1.0M 3A1630380M 3A1-63038-0 $0.00 1 Sold Out View More Details
(18) LONG HANDLE 0.8M 3A1630390M 3A1-63039-0 $0.00 1 Sold Out View More Details
(19) THERMOSTAT 3AA010300M 3AA-01030-0 $110.32 1
(20) MAIN JET (# 74) 3V1044740M 3V1-04474-0 FOR HIGH ALTITUDE $0.00 1 Sold Out View More Details
(20) MAIN JET (# 72) 3V1044720M 3V1-04472-0 FOR HIGH ALTITUDE $7.82 1
(20) MAIN JET (# 69) 3V1044690 3V1-04469-0 FOR HIGH ALTITUDE $0.00 1 Sold Out View More Details
(20) MAIN JET (# 67) 3V1044670 3V1-04467-0 FOR HIGH ALTITUDE $0.00 1 Sold Out View More Details
(20) MAIN JET (#90) 3V2044900M 3V2-04490-0 FOR HIGH ALTITUDE $7.82 1
(20) MAIN JET (#87) 3V2044870M 3V2-04487-0 FOR HIGH ALTITUDE $7.82 1
(21) SLOW JET (#38) 3V1045380M 3V1-04538-0 FOR HIGH ALTITUDE $17.88 1
(21) SLOW JET #37 (FOR EU) 3V1045370M 3V1-04537-0 FOR HIGH ALTITUDE $18.59 1
(21) SLOW JET (# 36) 3V1045360 3V1-04536-0 FOR HIGH ALTITUDE $0.00 1 Sold Out View More Details
(21) SLOW JET (# 35) 3V1045350 3V1-04535-0 FOR HIGH ALTITUDE $0.00 1 Sold Out View More Details
