12. BRACKET (FOR MF & EF TYPE)

Click Here for Microfiche Usage Tip
(1) CLAMP BRACKET (RIGHT)(2) CLAMP BRACKET (LEFT)(3) BOLT, 8-122(4) NYLON NUT, 8-P1.25(5) WASHER(6) WASHER, 8.5-28-1(6) WASHER, 8.5-28-1(7) DISTANCE PLATE(8) SCREW(9) CLAMP BRACKET SPRING(10) SCREW(11) WASHER, 4.3-16-1.5(12) THRUST ROD(13) THRUST ROD SPRING(14) CLAMP SCREW ASSY(14-1) CLAMP SCREW(14-2) CLAMP SCREW HANDLE(14-3) RIVET, 3-22(15) CLAMP SCREW PAD(16) SWIVEL BRACKET(17) STEERING SHAFT(18) STUD BOLT(18) STUD BOLT(19) THRUST PLATE, 22-44-2(19) THRUST PLATE, 22-44-2(20) O-RING, 3.5-22(21) BUSHING, 24-30-30(21) BUSHING, 24-30-30(22) FRICTION PLATE(23) FRICTION SPRING(24) BOLT(25) RUBBER MOUNT (UPPER)(25) RUBBER MOUNT (UPPER)(26) BOLT(26) BOLT(27) DAMPER (UPPER)(28) WASHER(28) WASHER(29) NUT(29) NUT(30) RUBBER MOUNT (LOWER)(30) RUBBER MOUNT (LOWER)(31) MOUNT BRACKET (RIGHT)(32) MOUNT BRACKET (LEFT)(33) BOLT(34) TILT STOPPER(34-1) TILT STOPPER GRIP(34-2) SPRING(35) TILT STOPPER GRIP(36) TILT STOPPER BUSHING(36) TILT STOPPER BUSHING(37) TILT STOPPER SETTING PLATE(38) BOLT(39) GREASE FITTING(40) GROUND CABLE(40) GROUND CABLE(41) BOLT(41) BOLT(42) REVERSE LOCK(43) REVERSE LOCK ARM(44) REVERSE LOCK ROD(44) REVERSE LOCK ROD(45) E-RING, D=5(45) E-RING, D=5(45) E-RING, D=5(45) E-RING, D=5(46) REVERSE LOCK SPRING(47) REVERSE LOCK LINK(48) ROD SNAP, 5-3(49) ROD SNAP,4-2(50) BOLT(51) WASHER(51) WASHER(52) NYLON NUT



Parts List

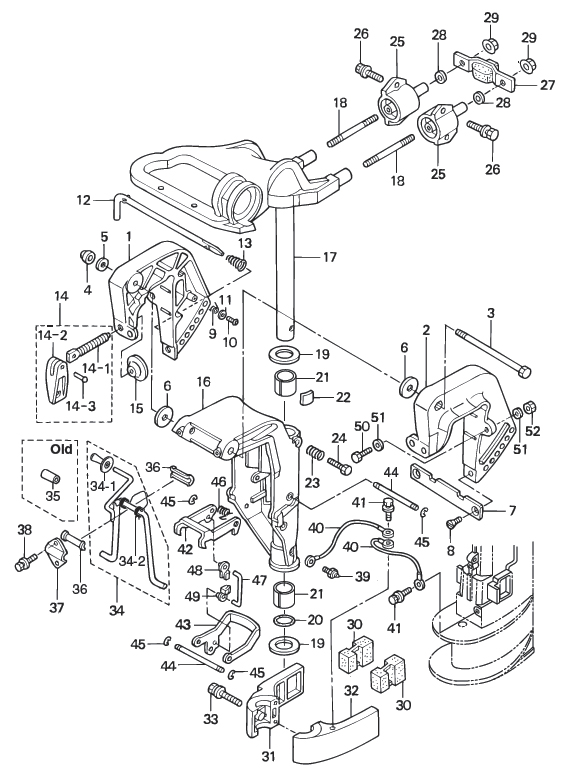

2009 :: 8 HP :: 4 Stroke Nissan NSF8A3 :: BRACKET (FOR MF & EF TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (R) 3V1Q621121 3V1Q62112-0 STERN BRACKET (RIGHT) STARBOARD $70.52 1
(2) CLAMP BRACKET (L) 3V1Q621131 3V1Q62113-0 STERN BRACKET (LEFT) PORT $70.52 1 Sold Out View More Details
(3) BOLT 8-122 309621152M 309-62115-2 $9.92 1
(4) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 1
(5) WASHER 9401E30800M 9401E3-0800 OR 940113-0800 $0.65 1
(6) WASHER 8.5-28-1 307621161M 307-62116-1 $1.93 2
(7) DISTANCE PLATE 3B2621180M 3B2-62118-0 $6.47 1 Sold Out View More Details
(8) SCREW 9216E30612M 9216E3-0612 OR 921613-0612 $0.98 2
(9) CLAMP BRACKET SPRING 369621461M 369-62146-1 $2.31 1
(10) SCREW 9217030406M 920703-0406 OR 920703-0406 $0.67 1
(11) WASHER 4.3-16-1.5 369621470M 369-62147-0 $0.76 1
(12) THRUST ROD 350621212M 350-62121-1 # 066205XF~ $20.96 1
(13) THRUST ROD SPRING 369621222M 369-62122-2 $1.85 1 Sold Out View More Details
(14) CLAMP SCREW ASSY 398Q621001 398Q62100-1 $31.11 2
(14-1) CLAMP SCREW 398621031M 398-62103-1 $49.87 2
(14-2) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 $7.57 2
(14-3) RIVET 3-22 3C8621042M 3C8-62104-2 OR 3C8-62104-1 $0.92 2
(15) CLAMP SCREW PAD 332621010M 332-62101-0 $3.36 2
(16) SWIVEL BRACKET 3V1Q623100 3V1Q62310-0 $136.79 1
(17) STEERING SHAFT 3V1Q620100 3V1Q62010-0 $251.99 1
(18) STUD 3V1613131M 3V1-61313-0 $7.18 2 Sold Out View More Details
(19) THRUST PLATE 22-44-2 350624230M 350-62423-0 $4.63 2
(20) O-RING 3.5-22 350624150M 350-62415-0 $2.07 1
(21) BUSHING 24-30-30 350624170M 350-62417-0 $6.65 2
(22) FRICTION PLATE 345624410M 345-62441-0 $5.55 1
(23) FRICTION SPRING 346624211M 346-62421-1 $3.20 1
(24) BOLT 9101E30830M 9101E3-0830 OR 910113-0830 $1.67 1
(25) RUBBER MOUNT (UPPER) 3V1B613011 3V1B61301-1 # 026947XD~ $43.13 2
(26) BOLT 9101F45620M 9101F4-5620 OR 910184-5620 / # 026947XD~ $1.53 4
(27) DAMPER (UPPER) 3V1613331M 3V1-61333-1 # 026947XD~ $21.58 1
(28) WASHER 9401E30800M 9401E3-0800 OR 940113-0800 $0.65 2
(29) NUT 3V1613240M 3V1-61324-0 # 026947XD~ $1.99 2 Sold Out View More Details
(30) RUBBER MOUNT (LOWER) 3V1613020M 3V1-61302-0 $9.64 2
(31) MOUNT BRACKET (RIGHT) 3V1Q614010 3V1Q61401-0 STARBOARD $44.80 1
(32) MOUNT BRACKET (LEFT) 3V1Q614020 3V1Q61402-0 PORT $44.80 1
(33) BOLT 9101E35652M 910113-5652 OR 910113-5652 $2.91 2
(34) TILT STOPPER ASSY 3V1624311M 3B2S62431-3 NEW / # 016793XH~ $34.68 1 Sold Out View More Details
(34-1) TILT STOPPER GRIP 3AS624330M 393-62433-0 NEW / # 016793XH~ $1.82 1
(34-2) TILT STOPPER SPRING 369624340M 369-62434-0 $10.12 1
(35) TILT STOPPER GRIP 369624331M 369-62433-1 OLD / #! ~007916XH $1.85 0
(36) TILT STOPPER BUSHING 393624370M 393-62437-0 $2.25 2
(37) TILT STOPPER SETTING PLATE 369624391M 369-62439-1 $4.40 1
(38) BOLT 9101E35612M 910103-5612 OR 910113-5612 $1.07 2
(39) GREASE FITTING 344671770M 344-67177-0 $2.56 1 Sold Out View More Details
(40) GROUNG CABLE 3A3623961M 3A3-62396-0 L=110 $17.85 2
(41) BOLT 9101E35612M 910103-5612 OR 910103-5612 $1.07 2
(42) REVERSE LOCK 3V1663220M 3V1-66322-0 $12.34 1
(43) REVERSE LOCK ARM 3V1663130M 3V1-66313-0 $15.13 1
(44) REVERSE LOCK ROD 3B2663211M 3B2-66321-1 $4.19 2
(45) E-RING D=5 9453030500M 945303-0500 $0.86 4
(46) REVERSE LOCK SPRING 3B2663150M 3B2-66315-0 $2.31 1
(47) REVERSE LOCK LINK 3V1663051M 3V1-66305-0 $3.46 1
(48) ROD SNAP 5-3 3C8637330M 3C8-63733-0 $1.45 1
(49) ROD SNAP 4-2 3K9052230M 3K9-05223-0 $1.02 1
(50) BOLT 9101E30885M 9101E3-0885 OR 916113-0885 / OPTION $3.50 2
(51) WASHER 9401E30800M 9401E3-0800 OR 940113-0800 / OPTION $0.65 4
(52) NYLON NUT 8P-1.25 9304030800M 930446-0800 OPTION $1.99 2
