6. CARBURETOR

Click Here for Microfiche Usage Tip

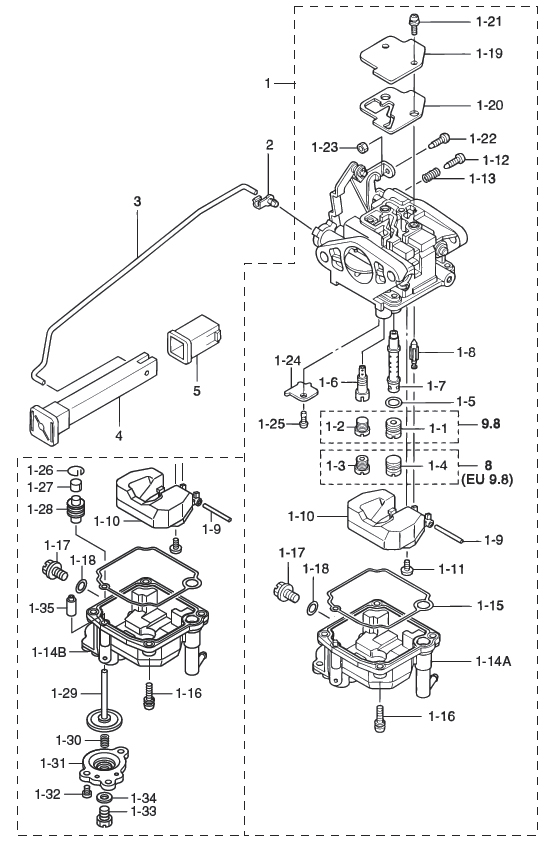

(1) CARBURETOR(1) CARBURETOR(1) CARBURETOR (FOR EU)(1) CARBURETOR (FOR EU)(1-1) MAIN JET #92(1-2) PLUG(1-3) MAIN JET #76(1-3) MAIN JET #71 (FOR EU)(1-4) PLUG(1-5) O-RING(1-6) SLOW JET #39(1-6) SLOW JET #37 (FOR EU)(1-7) MAIN NOZZLE(1-7) MAIN NOZZLE (FOR EU)(1-8) FLOAT VALVE(1-9) FLOAT ARM PIN(1-9) FLOAT ARM PIN(1-10) FLOAT(1-10) FLOAT(1-11) SCREW(1-12) STOP SCREW(1-13) SPRING(1-14A) FLOAT CHAMBER(1-14B) FLOAT CHAMBER (FOR EU)(1-15) FLOAT CHAMBER GASKET(1-16) SCREW(1-16) SCREW(1-17) DRAIN SCREW(1-17) DRAIN SCREW(1-18) GASKET(1-18) GASKET(1-19) CARBURETOR COVER(1-20) CARBURETOR COVER GASKET(1-21) SCREW(1-22) STOP SCREW(1-23) NUT(1-24) PLATE(1-25) SCREW(1-26) RETAINING RING (FOR EU)(1-27) CAP (FOR EU)(1-28) RUBBER BOOT (FOR EU)(1-29) PLUNGER COMPLETE (FOR EU)(1-30) COIL SPRING (FOR EU)(1-31) DIAPHRAGM COVER (FOR EU)(1-32) SCREW (FOR EU)(1-33) DRAIN SCREW (FOR EU)(1-34) DRAIN SCREW GASKET (FOR EU)(1-35) CHECK VALVE (FOR EU)(2) ROD SNAP, 3B(3) CHOKE LINK ROD(4) CHOKE ROD(5) BUSHING



Parts List
2009 :: 8 HP :: 4 Stroke Nissan NSF8A3 :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR 3V1031002M 3V1-03100-2 # 036546XD~ / FOR MF & EF/EFT (MARK: 3V1FB) $198.44 1
(1) CARBURETOR 3V1031332M 3V1-03133-2 #036546XD~ / FOR EP (MARK: 3V1PB) $218.83 1
(1) CARBURETOR (FOR EU) 3DN031000 3DN-03100-0 FOR MF & EF/EFT (MARK: 3DNFA) $0.00 1 Sold Out View More Details
(1) CARBURETOR (FOR EU) 3DN031330 3DN-03133-0 FOR EP/EPT (MARK: 3DNPA) $0.00 1 Sold Out View More Details
(1-1) MAIN JET #92 3V2044920M 3V2-04492-0 NOT USED $7.41 0
(1-2) PLUG 3V2031690M 3V2-03169-0 NOT USED $5.73 0
(1-3) MAIN JET #76 3V1044760M 3V1-04476-0 OLD PART NO. 3V1-04676-0 $7.60 1
(1-3) MAIN JET # 71 (FOR EU) 3V1044710M 3V1-04471-0 FOR EU $7.19 1
(1-4) PLUG (FOR EU) 3V1031690M 3V1-03169-0 $5.73 1
(1-5) O-RING 3V1031160M 3V1-03116-0 OLD PART NO. 3V1-03194-0 $1.50 1
(1-6) SLOW JET #36 3V1045390M 3V1-04539-0 OLD PART NO. 3V1-04739-0 $17.55 1
(1-6) SLOW JET #37 (FOR EU) 3V1045370M 3V1-04537-0 FOR EU $17.39 1
(1-7) MAIN NOZZLE 3V1031410M 3V1-03141-0 $19.55 1
(1-7) MAIN NOZZLE (FOR EU) 3Y1031410 3Y1-03141-0 FOR EU $0.00 1 Sold Out View More Details
(1-8) FLOAT VALVE 3V1031471M 3V1-03147-1 # 010322XD~ $15.02 1
(1-9) FLOAT ARM PIN 3C8031260M 3C8-03126-0 $2.39 1
(1-10) FLOAT 3C8031250M 3C8-03125-0 $14.32 1
(1-11) SCREW 9217030406M 920703-0406 $0.67 1
(1-12) STOP SCREW 3V2031790M 3V2-03179-0 L=18 / # 036546XD~ $3.36 1
(1-13) SPRING 3V2031570M 3V2-03157-0 L=14 / # 036546XD~ $2.42 1
(1-14A) FLOAT CHAMBER 3V1031200M 3V1-03120-0 $38.82 1
(1-14B) FLOAT CHAMBER (FOR EU) 3Y0031200M 3Y0-03120-0 OLD CARBURETOR (F9.8A3) / MARK 3DPFA & 3DPPA $45.25 1
(1-15) FLOAT CHAMBER GASKET 3V1031210M 3V1-03121-0 $4.86 1
(1-16) SCREW 9225036412M 922503-6412 $1.47 4
(1-17) DRAIN SCREW 3V1031920M 3V1-03192-0 $3.28 1
(1-18) DRAIN SCREW GASKET 3V1031930M 3V1-03193-0 $2.40 1
(1-19) CARBURETOR COVER 3C8031810M 3C8-03181-0 $6.90 1
(1-20) CARBURETOR COVER GASKET 3V1031820M 3V1-03182-0 $6.74 1
(1-21) SCREW 9225036410M 922503-6410 $1.79 2
(1-22) STOP SCREW 3V1031790M 3V1-03179-0 L=15 / FOR MF & EF/EFT $3.32 1
(1-23) NUT 3V1031910M 3V1-03191-0 FOR MF & EF/EFT $5.32 1
(1-24) PLATE 3V1031280M 3V1-03128-0 $2.26 1
(1-25) SCREW 9225030305M 922503-0305 $0.00 1 Sold Out View More Details
(1-26) RETAINING RING 3AA031890M 3AA-03189-0 FOR EU $3.63 1 Sold Out View More Details
(1-27) CAP 3AA031900M 3AA-03190-0 FOR EU $2.58 1
(1-28) RUBBER BOOT 3AA033110M 3AA-03311-0 FOR EU $4.28 1
(1-29) PLUNGER COMPLETE 3AA033150M 3AA-03315-0 FOR EU $18.75 1
(1-30) COIL SPRING 3AA033140M 3AA-03314-0 FOR EU $3.11 1
(1-31) DIAPHRAGM COVER 3Y0031970M 3Y0-03197-0 FOR EU $10.96 1
(1-32) SCREW 9215030508M 921503-0508 FOR EU $0.60 3
(1-33) DRAIN SCREW 3AA031920M 3AA-03192-0 FOR EU $8.00 1
(1-34) DRAIN SCREW GASKET 3AA031930M 3AA-03193-0 FOR EU $3.31 1
(1-35) CHECK VALVE (FOR EU) 3AA031980 3AA-03198-0 OLD CARBURETOR (F9.8A3) / MARK 3DPFA & 3DPPA $15.21 1
(2) ROD SNAP ø 3B 346671961M 346-67196-1 FOR MF & EF/EFT $2.56 1
(3) CHOKE LINK ROD 3Y3671920M 3Y3-67192-0 9.8A3/8A3 # 026832XE~ / FOR MF & EF/EFT $5.58 1
(4) CHOKE ROD 3C8671511M 3C8-67151-0 # 036546XD~ / FOR MF & EF/EFT $5.75 1 Sold Out View More Details
(5) BUSHING 3C8671560M 3C8-67156-0 FOR MF & EF/EFT $3.31 1
