15. COWL

Click Here for Microfiche Usage Tip

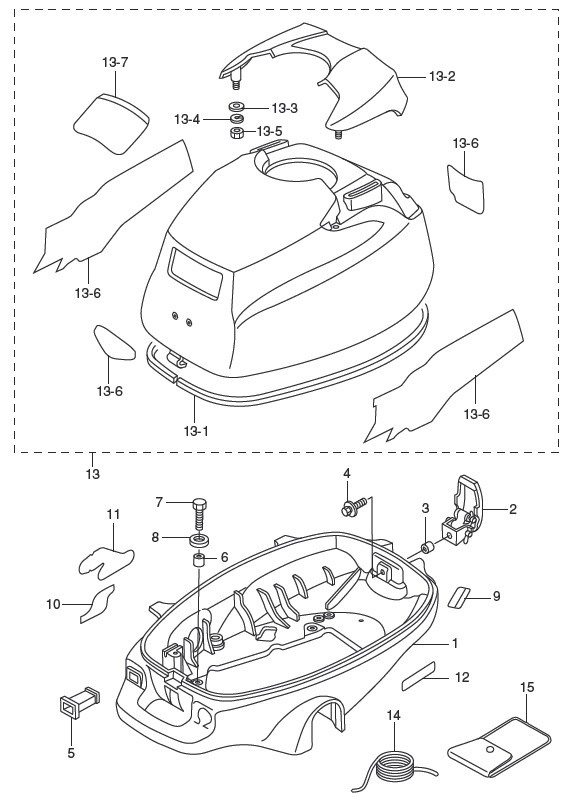

(1) BOTTOM COWL(2) COWL LATCH(2) COWL LATCH(3) COLLAR. 6.2-9-7.4(4) BOLT(5) CHOKE ROD BUSHING(6) COLLAR. 6.4-10-4.7(7) BOLT(8) WASHER, 6-16-1.5(9) SPARK PLUG DECAL (WITH RESISTANCE)(10) SHIFT DECAL (F-N)(11) FUEL LEVER DECAL(12) STORAGE DECAL(13) TOP COWL(13) TOP COWL(13-1) TOP COWL SEAL(13-2) TILT HANDLE(13-3) WASHER(13-4) SPRING WASHER(13-5) NUT(13-6) DECAL SET(13-6) DECAL SET(13-6) DECAL SET(13-6) DECAL SET(13-6) DECAL SET(13-6) DECAL SET(13-6) DECAL SET(13-6) DECAL SET(13-7) CAUTION DECAL "A"(14) ROPE(15) TOOL



Parts List
2009 :: 3.5 HP :: 4 Stroke Nissan NSF3.5B :: COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3ABQ671000 3ABQ67100-0 $161.97 1
(2) COWL LATCH ASSY 3GT671200M 3GT-67120-0 3.5B/2.5B/2B~ $16.66 1 Sold Out View More Details
(2) COWL LATCH 3V1671200M 3V1-67120-0 3.5A/2.5A/2A $20.93 0
(3) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 1 Sold Out View More Details
(4) BOLT (OR 910113-5616) 9101E35616M 910113-5616 OR 910113-5616 $1.15 1
(5) CHOKE ROD BUSHING 3AB671040M 3AB-67104-0 $3.46 1
(6) COLLAR 6.4-10-4.7 353062830M 353-06283-0 $4.03 4
(7) BOLT 9101E30616M 9101E3-0616 OR 910113-0616 $0.98 4
(8) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 4
(9) RESISTANCE SPARK PLUG DECAL 3H6720260M 3H6-72026-0 $3.04 1
(10) SHIFT DECAL (F-N) 3AB675780M 3AB-67578-0 $3.52 1
(11) FUEL LEVER DECAL 3AB720241M 3AB-72024-0 048350XG~ $3.51 1
(12) STORAGE DECAL 3AB675720M 3AB-67572-0 $2.63 1
(13) TOP COWL ASSY (TOHATSU) 3ABQ676450 3ABQ67645-0 TOHATSU / OLD PART NO 3BRQ67630-2 $0.00 1 Sold Out View More Details
(13) TOP COWL 3BSQ676450 3BSQ67645-0 NISSAN $0.00 1 Sold Out View More Details
(13-1) TOP COWL SEAL 3AB675010M 3AB-67501-0 L=1100 $45.31 1
(13-2) TILT HANDLE 3ABQ675212 3ABQ67521-0 $94.16 1
(13-3) WASHER 9401030600M 940103-0600 $0.70 4
(13-4) SPRING WASHER 9413030600M 941303-0600 $0.84 4
(13-5) NUT 9301030600M 930113-0600 $0.84 4
(13-6) DECAL SET (F3.5) 3BR878010M 3BR-87801-0 TOHATSU / OLD PART NO 3BRQ87801-0 $35.68 1
(13-6) DECAL SET 3BSN878010 3BSN878010 NISSAN $0.00 1 Sold Out View More Details
(13-7) CAUTION DECAL A 3R0721800M 3R0-72180-0 $3.40 1
(14) ROPE 312722010M 312-72201-0 ø 4-1000 $3.00 1
(15) TOOL 3H6721000M 3H6-72100-0 $28.06 1
