10. GEAR CASE (DRIVE SHAFT)

Click Here for Microfiche Usage Tip

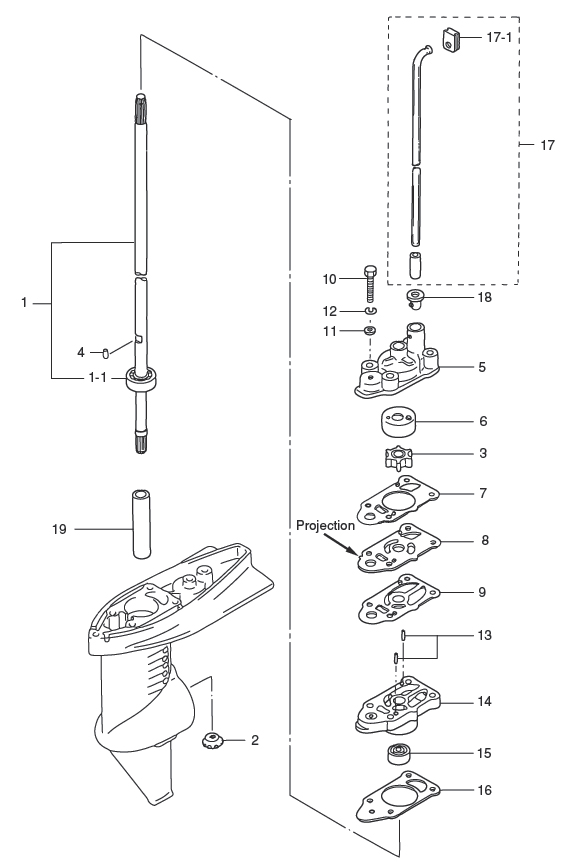

(1) DRIVE SHAFT "S"(1) DRIVE SHAFT "L"(1-1) BALL BEARING, 6000(2) BEVEL GEAR "B"(3) WATER PUMP IMPELLER(4) WATER PUMP IMPELLER KEY(5) PUMP CASE (UPPER)(6) PUMP CASE LINER(7) PUMP CASE GASKET (UPPER)(8) WATER PUMP GUIDE PLATE(9) PUMP GUIDE PLATE GASKET(10) BOLT(11) WASHER(12) SPRING WASHER(13) DOWEL PIN, 2-11(14) PUMP CASE (LOWER)(15) OIL SEAL, 10-22-8(16) PUMP CASE GASKET (LOWER)(17) WATER PIPE "S"(17) WATER PIPE "L"(17-1) WATER PIPE GROMMET (UPPER)(18) WATER PIPE GROMMET (LOWER)(19) SPACER, 10.1-15-72



Parts List
2009 :: 3.5 HP :: 4 Stroke Nissan NSF3.5B :: GEAR CASE (DRIVE SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT S 3AB643060M 3AB-64306-0 FOR TRANSOM S $117.39 1
(1) DRIVE SHAFT L 3AB643070M 3AB-64307-0 FOR TRANSOM L $124.25 1
(1-1) BALL BEARING 6000 3AB602130M 3AB-60213-0 $11.19 1
(2) BEVEL GEAR B 369640202M 369-64020-2 $20.68 1
(3) WATER PUMP IMPELLER 369650211M 369-65021-1 $7.43 1
(4) WATER PUMP IMPELLER KEY 369650220M 369-65022-0 $1.50 1
(5) PUMP CASE (UPPER) 3F0650160M 3F0-65016-0 $25.33 1
(6) PUMP CASE LINER 3F0650110M 3F0-65011-0 $9.20 1
(7) PUMP CASE GASKET (UPPER) 3F0650180M 3F0-65018-0 $2.07 1
(8) WATER PUMP GUIDE PLATE 3AB650250M 3AB-65025-0 $4.86 1
(9) PUMP GUIDE PLATE GASKET 3F0650290M 3F0-65029-0 $2.07 1
(10) BOLT 9161E30645M 916113-0645 OR 916113-0645 $2.58 4
(11) WASHER 9401030600M 940103-0600 $0.70 4
(12) SPRING WASHER 9413030600M 941303-0600 $0.84 4
(13) PUMP IMPELLER KEY 3B2650220M 3B2-65022-0 $1.45 2
(14) PUMP CASE SUB-ASSY (LOWER) 3AB650070M 3F0-65040-1 WITH BUSHING & O-RING / OLD PART NO. 3F0-65040-1 $31.51 1
(15) OIL SEAL 10-22-8 3F0602230M 3F0-60223-0 $7.71 1
(16) PUMP CASE GASKET (LOWER) 3F0650200M 3F0-65020-0 $2.56 1
(17) WATER PIPE S 3AB651910M 3AB-65191-0 FOR TRANSOM S $16.24 1
(17) WATER PIPE L 3AB651920M 3AB-65192-0 FOR TRANSOM L $19.10 1
(17-1) WATER PIPE GROMMET (UPPER) 3AB650310M 3AB-65031-0 $2.62 1
(18) WATER PIPE GROMMET (LOWER) 3F0650320M 3F0-65032-0 $2.07 1
(19) SPACER 10.1-15-72 3F0643210M 3F0-64321-0 $7.59 1
