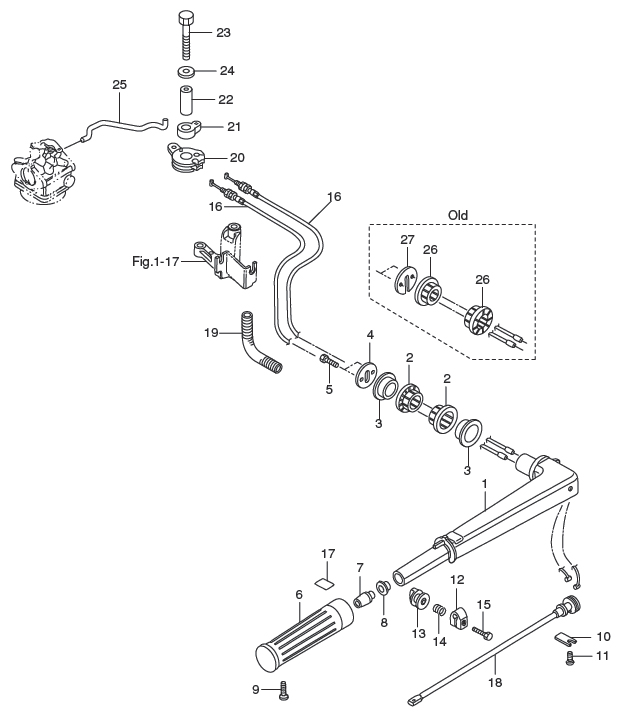

7. TILLER HANDLE & THROTTLE

Click Here for Microfiche Usage Tip
(1) TILLER HANDLE(2) TILLER HANDLE BUSHING(2) TILLER HANDLE BUSHING(3) HANDLE BUSHING (PLASTIC)(3) HANDLE BUSHING (PLASTIC)(4) COVER(5) BOLT(6) GRIP(7) THROTTLE SHAFT DAMPER(8) BUSHING. 14-15.8-7(9) SCREW(10) THROTTLE SHAFT SUPPORTER(11) SCREW(12) FRICTION PIECE(13) ADJUSTING NUT(14) SPRING(15) BOLT(16) THROTTLE CABLE(16) THROTTLE CABLE(17) THROTTLE DECAL(18) THROTTLE SHAFT(19) THROTTLE CABLE PROTECTOR(20) THROTTLE DRUM(21) THROTTLE OPENER(22) COLLAR. 6.5-10.5-22.6(23) BOLT(24) WASHER, 6-16-1.5(25) THROTTLE ROD(26) TILLER HANDLE BUSHING(26) TILLER HANDLE BUSHING(27) COVER



Parts List
2009 :: 3.5 HP :: 4 Stroke Nissan NSF3.5B :: TILLER HANDLE & THROTTLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILLER HANDLE 3V1Q630112 3V1Q63011-2 OR 3V1063011-1 $49.18 1
(2) BUSHING 3AB631020M 3AB-63102-0 NEW / # 022154XG~ $2.82 2
(3) BUSHING 32-34-11.8 3BR631021M 3BR-63102-1 NEW / # 022154XG~ $0.00 2 Sold Out View More Details
(4) COVER 3AB631070M 3AB-63107-0 NEW / # 022154XG~ $3.46 1 Sold Out View More Details
(5) BOLT 9101E30616M 9101E3-0616 OR 910113-0616 $0.98 2
(6) GRIP 3R3630120M 3R3-63012-0 $16.97 1
(7) THROTTLE SHAFT DAMPER 3H6630480M 3H6-63048-0 $1.85 1 Sold Out View More Details
(8) BUSHING 14-15.8-7 3H6635100M 3H6-63510-0 $1.27 1
(9) SCREW 9208E30518M 9208E3-0518 OR 920813-0518 $0.92 1
(10) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 $2.31 1
(11) SCREW 9215030612M 921513-0612 OR 921513-0612 $0.93 1
(12) FRICTION PIECE 3V1630351M 3V1-63035-0 $2.58 1
(13) ADJUSTING NUT 3V1630770M 3V1-63077-0 $3.85 1
(14) SPRING 3V1630360M 3V1-63036-0 $1.57 1
(15) BOLT 9101030625M 910113-0625 OR 910113-0625 $0.95 1
(16) THROTTLE CABLE 3V1636000M 3V1-63600-0 $17.26 2
(17) THROTTLE DECAL 3V9720190M 3V9-72019-0 $2.19 1
(18) THROTTLE SHAFT 3V1630410M 3V1-63041-0 $12.14 1
(19) FUEL HOSE PROTECTOR 3H9703130M 3H9-70313-0 $2.31 1
(20) THROTTLE DRUM 3H6636110M 3H6-63611-0 $3.55 1
(21) THROTTLE OPENER 3H6636120M 3H6-63612-0 $1.71 1
(22) COLLAR 6.5-10.5-22.6 3H6636180M 3H6-63618-0 OR 3R3-66124-0 $4.28 1
(23) BOLT 9161E30635M 9161E3-0635 OR 916113-0635 $0.00 1 Sold Out View More Details
(24) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 1
(25) THROTTLE ROD 3AB636170M 3AB-63617-0 $3.46 1
(26) TILLER HANDLE BUSHING 369631020M 369-63102-0 OLD / ~# 016969XG $5.07 0
(27) COVER 3V1631070M 3V1-63107-0 OLD / ~# 016969XG $3.57 0
