14. INTEGRAL FUEL TANK

Click Here for Microfiche Usage Tip

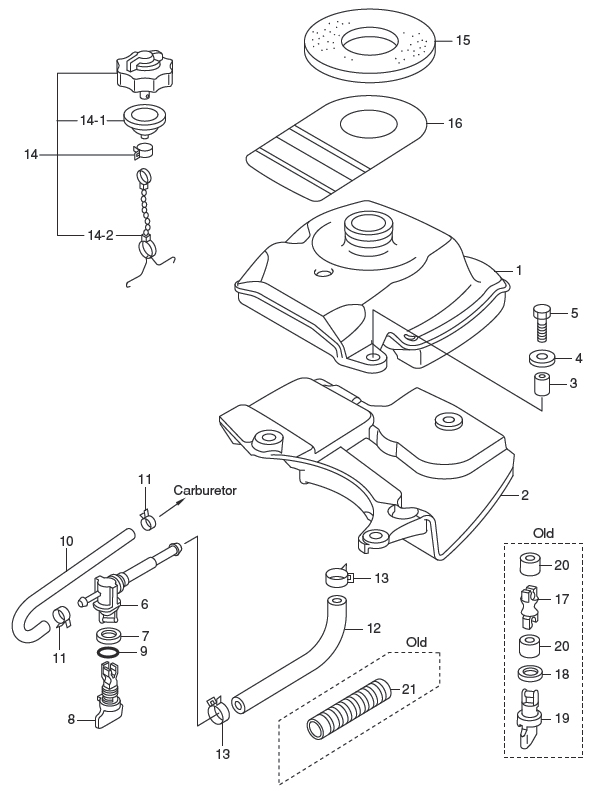

(1) FUEL TANK(2) FUEL TANK COVER(3) COLLAR, 6.2-9-10.7(4) WASHER, 6-16-1.5(5) BOLT(6) FUEL COCK(7) SEAL RING(8) FUEL COCK KNOB(9) O-RING. 2-10(10) FUEL HOSE(10) FUEL HOSE (OLD)(11) CLIP, o 9.5(11) CLIP, o 9.5(12) FUEL HOSE (STRAIGHT)(12) FUEL HOSE (OLD)(13) CLIP, o 15(13) CLIP, o 15(14) FUEL TANK CAP(14-1) TANK CAP GASKET(14-2) TANK CAP HOOK(15) FUEL TANK SEAL(16) CAUTION TAG "B"(17) FUEL COCK ROD (OLD)(18) SEAL RING (OLD)(19) FUEL COCK KNOB (OLD)(20) FUEL COCK ROD HOSE (OLD)(20) FUEL COCK ROD HOSE (OLD)(21) FUEL HOSE PROTECTOR (OLD)



Parts List
2009 :: 3.5 HP :: 4 Stroke Tohatsu MFS3.5B :: INTEGRAL FUEL TANK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL TANK ASSY 3AB703101M 3AB-70310-1 $68.08 1 Sold Out View More Details
(2) COVER 3AB068461M 3AB-06846-0 $20.59 1
(3) COLLAR 6.2-9-10.7 3T5760790M 3T5-76079-0 $1.75 3
(4) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 3
(5) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 OR 910113-0625 $0.95 3
(6) FUEL COCK 369703110M 369-70311-0 $29.88 1
(7) SEAL RING 369700630M 369-70063-0 $2.56 1
(8) FUEL COCK KNOB 3GT700620M 3GT-70062-0 3.5B/2.5B/2B~ $3.91 1
(9) O-RING 2-10 3G9661360M 3G9-66136-0 3.5B/2.5B/2B~ $1.59 1
(10) FUEL HOSE 155-20-20 3GT703260M 3GT-70326-0 3.5B/2.5B/2B~ $5.53 1
(10) FUEL HOSE 3AB703260M 3AB-70326-0 3.5A/2.5A/2A $5.44 0
(11) CLIP ø 9.5 3AB351430M 121-35143-0 OR 121-35143-0 $1.30 2
(12) FUEL HOSE L=215 3GT703250M 3GT-70325-0 L=215 / 3.5B//2.5B/2B~ $9.89 1
(12) FUEL HOSE 3AB703250M 3AB-70325-0 3.5A/2.5A/2A $9.81 0
(13) CLIP 15 3AB022151M 3AB-02215-1 OR 3AB-02215-0 $2.71 2
(14) FUEL TANK CAP ASSY 3R6703201M 3R6-70320-0 $14.44 1 Sold Out View More Details
(14-1) TANK CAP GASKET 309700213M 309-70021-3 $3.64 1
(14-2) TANK CAP HOOK 3C8710170M 3C8-71017-0 $10.12 1
(15) FUEL TANK SEAL 3AB700360M 3AB-70036-0 $8.05 1
(16) CAUTION TAG B 3AB721830M 3AB-72183-0 $4.38 1
(17) FUEL COCK ROD 3AB700610M 3AB-70061-0 3.5A/2.5A/2A $0.00 0 Sold Out View More Details
(18) SEAL RING 369700630M 369-70063-0 3.5A/2.5A/2A $2.56 0
(19) FUEL COCK KNOB 369700620M 369-70062-0 3.5A/2.5A/2A $5.07 0
(20) FUEL COCK ROD HOSE (OLD) 353725441M 353-72544-0 3.5A/2.5A/2A $2.97 0
(21) FUEL HOSE PROTECTOR (OLD) 3AB703130 3AB-70313-0 3.5A/2.5A/2A $0.00 0 Sold Out View More Details
