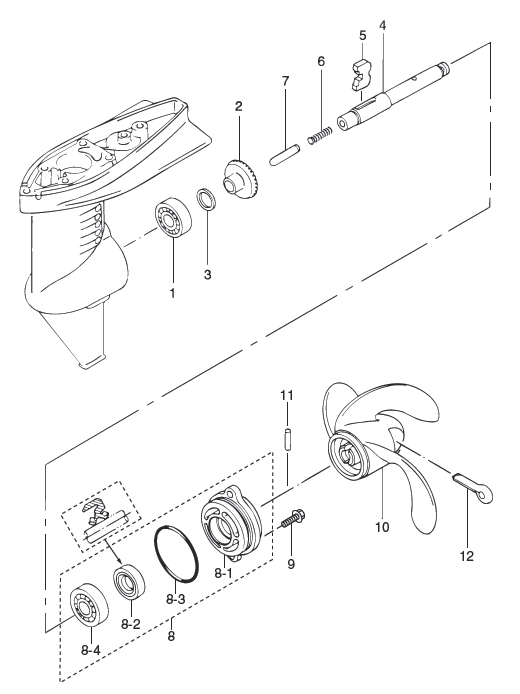

11. GEAR CASE (PROPELLER SHAFT)

Click Here for Microfiche Usage Tip
(1) BALL BEARING, 6004(2) BEVEL GEAR "A"(3) SHIM. 21-28-0.1(3) SHIM. 21-28-0.15(4) PROPELLER SHAFT(5) CLUTCH(6) CLUTCH SPRING(7) CLUTCH PUSH ROD(8) PROPELLER SHAFT HOUSING ASSY(8-1) PROPELLER SHAFT HOUSING(8-2) OIL SEAL, 12-24-8(8-3) O-RING. 3.2-47(8-4) BALL BEARING. 6001(9) BOLT(10) PROPELLER 7 (PLASTIC), 3 X 7.4 X 7.0(10) PROPELLER 6 (ALUMINUM), 3 X 7.4 X 5.7(10) PROPELLER 6 (PLASTIC), 3 X 7.4 X 5.7(10) PROPELLER 4.5 (PLASTIC), 3 X 7.4 X 4.3(11) SHEAR PIN, 4-24(12) SPLIT PIN. 4-35



Parts List
2009 :: 2.5 HP :: 4 Stroke Nissan NSF2.5B :: GEAR CASE (PROPELLER SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BALL BEARING 6004 960106004M 9601-0-6004 $10.98 1
(2) BEVEL GEAR A 369640102M 369-64010-2 $44.34 1
(3) SHIM 21-28-.01 369640140M 369-64014-0 $1.98 0
(3) SHIM 21-28-0.15 369640150M 369-64015-0 $1.98 0
(4) PROPELLER SHAFT 3F0642110M 3F0-64211-0 $101.29 1
(5) CLUTCH 3F0642150M 3F0-64215-0 $12.88 1
(6) CLUTCH SPRING 3F0642210M 3F0-64221-0 $1.45 1
(7) CLUTCH PUSH ROD 3F0642230M 3F0-64223-0 $5.55 1
(8) PROPELLER SHAFT HOUSING ASSY 3F0Q873231 3F0-Q87323-1 $37.70 1
(8-1) PROPELLER SHAFT HOUSING 3F0Q601011 3F0Q60101-1 $27.97 1
(8-2) OIL SEAL 12-24-8 309601110M 309-60111-0 $6.90 1
(8-3) O-RING 3.2-47 345650150M 345-65015-0 $1.50 1
(8-4) BALL BEARING 6001 960106001M 9601-0-6001 $10.01 1
(9) BOLT 9101E35620M 910113-5620 OR 910113-5620 $1.30 2
(10) PROPELLER 7 (PLASTIC) 3X7.4X7.0 3F0641010M 3F0-64101-0 FOR TRANSOM S L $25.40 1
(10) PROPELLER ASSY (6) 3F0B645120 3F0-64102-0 OLD PART NO. 3F0-64102-0 / OPTION $110.58 1
(10) PROPELLER 6 (PLASTIC) 3X7.4X5.7 309641060M 309-64106-0 OPTION $28.90 1
(10) PROPELLER 4.5 (PLASTIC) 3X7.4X4.3 314641030M 314-64103-0 OPTION $30.92 1
(11) SHEAR PIN 4-24 309641261M 309-64126-0 # 048350XG~ $2.05 1
(12) SPLIT PIN 4-35 9515030435M 951503-0435 $1.09 1
