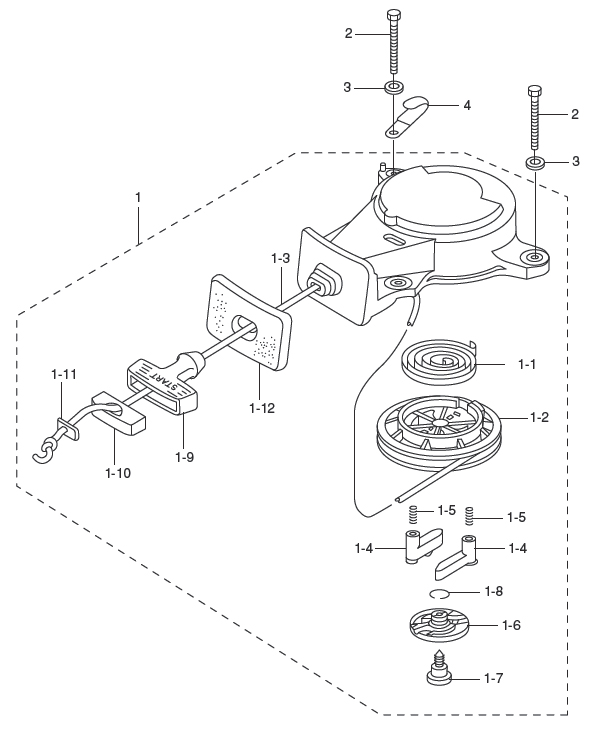

8. RECOIL STARTER

Click Here for Microfiche Usage Tip
(1) RECOIL STARTER(1-1) STARTER SPRING(1-2) REEL(1-3) STARTER ROPE(1-4) RATCHET(1-4) RATCHET(1-5) RETURN SPRING(1-5) RETURN SPRING(1-6) FRICTION PLATE(1-7) STARTER SHAFT SCREW(1-8) FRICTION SPRING(1-9) STARTER HANDLE(1-10) ROPE ANCHOR(1-11) ROPE ANCHOR PLATE(1-12) STARTER SEAL(2) BOLT(2) BOLT(3) WASHER, 6-16-1.5(3) WASHER, 6-16-1.5(4) CLAMP, 6.5-67P



Parts List
2009 :: 2.5 HP :: 4 Stroke Nissan NSF2.5B :: RECOIL STARTER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER 3AB050900M 3AB-05090-0 $66.24 1
(1-1) STARTER SPRING 3AB050040M 3AB-05004-0 $19.10 1
(1-2) REEL 3AB051040M 3AB-05104-0 $16.24 1
(1-3) STARTER ROPE 3AB050130M 3AB-05013-0 ø 3.5-1200 $6.77 1
(1-4) RATCHET 3AB050030M 3AB-05003-0 $5.73 2
(1-5) RETURN SPRING 3AB050120M 3AB-05012-0 $2.21 2
(1-6) FRICTION PLATE 3AB050060M 3AB-05006-0 $3.36 1
(1-7) STARTER SHAFT SCREW 3AB051380M 3AB-05138-0 $0.00 1 Sold Out View More Details
(1-8) FRICTION SPRING 3AB050070M 3AB-05007-0 $2.21 1
(1-9) STARTER HANDLE 3AB050190M 3AB-05019-0 $7.05 1
(1-10) ROPE ANCHOR 3AB051310M 3AB-05131-0 $6.77 1
(1-11) ROPE ANCHOR PLATE 3AB051340M 3AB-05134-0 $1.82 1
(1-12) STARTER SEAL 3AA675030M 3AA-67503-0 $8.80 1
(2) BOLT 9101030660M 910103-0660 $1.53 3
(3) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 3
(4) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 1
