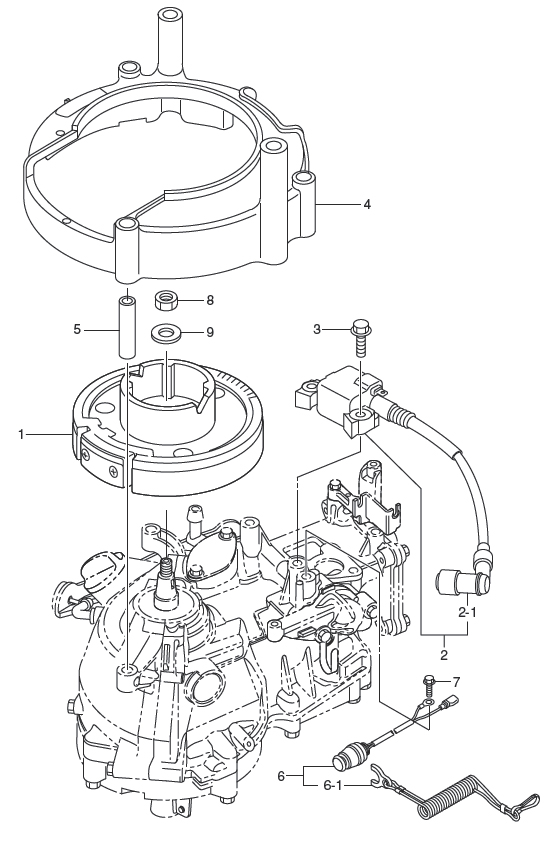

6. MAGNETO

Click Here for Microfiche Usage Tip
(1) FLYWHEEL CUP(1) FLYWHEEL CUP (OLD)(2) IGNITER(2) IGNITER (MAU-6A) (OLD)(2-1) PLUG CAP ( WITH RESISTANCE)(3) BOLT(3) BOLT (OLD)(4) FLYWHEEL COVER(5) COLLAR, 6.2-9-35(6) STOP SWITCH ASSY(6) STOP SWITCH ASSY (OLD)(6-1) STOP SWITCH LANYARD(7) BOLT(8) MAGNETO NUT (10P-1.25)(9) WASHER



Parts List
2009 :: 2.5 HP :: 4 Stroke Nissan NSF2.5B :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL 3GT060010M 3GT-06001-0 3.5B/2.5B/2B~ / MARK: MF5494 $0.00 1 Sold Out View More Details
(1) FLYWHEEL CUP 3AB060010M 3AB-06001-0 3.5A/2.5A/2A $133.95 0
(2) IGNITER W/R-CAP 3GT060410M 3GT-06041-0 3.5B/2.5B/2B~ / MARK: IU3123 $110.95 1
(2) IGNITER (MAU-6A) (OLD) 3AB060410M 3AB-06040-0 3.5A/2.5A/2A / [2A ~#016969XG (DOMESTIC ONLY)] $153.92 0
(2-1) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 $25.93 1
(3) BOLT 9101035625M 910103-5625 3.5B/2.5B/2B~ $1.47 2
(3) BOLT 9101035620M 910103-5620 3.5A/2.5A/2A $1.30 0
(4) RING GEAR COVER ASSY 3AB063001M 3AB-06300-1 $0.00 1 Sold Out View More Details
(5) COLLAR 6.2-9-35 3AB063031M 3AB-06303-1 $4.38 3 Sold Out View More Details
(6) STOP SWITCH 3AS068700M 3AS-06870-0 3.5B/2.5B/2B~ $45.96 1
(6) STOP SWITCH 3D5068700M 3D5-06870-0 3.5A/2.5A/2A $54.43 0
(6-1) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(7) BOLT 9101035612M 910103-5612 $1.07 1
(8) MAGNETO NUT (10P-1.25) 309001320M 309-00132-0 $1.61 1
(9) WASHER 9401211000M 940121-1000 $0.49 1
