12. SHIFT

Click Here for Microfiche Usage Tip

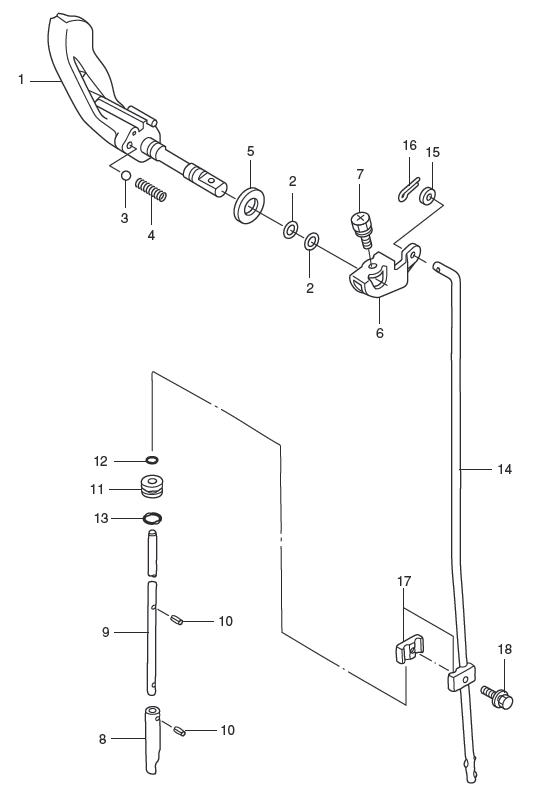

(1) SHIFT LEVER(2) O-RING. 1.9-6.8(2) O-RING. 1.9-6.8(3) CERAMIC BALL, 7.7(4) SHIFT LEVER STOPPER SPRING(5) WASHER, 10.5-18-1.5(6) SHIFT ROD LEVER(7) BOLT(8) CLUTCH CAM(9) CAM ROD "S"(9) CAM ROD "L"(10) SPRING PIN, 3-8(10) SPRING PIN, 3-8(11) CAM ROD BUSHING(12) O-RING, 2.5-4.9(13) O-RING, 2.4-9.5(14) SHIFT ROD(15) WASHER(16) SPLIT PIN. 2-12(17) SHIFT ROD JOINT(18) BOLT



Parts List
2009 :: 2.5 HP :: 4 Stroke Tohatsu MFS2.5B :: SHIFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SHIFT LEVER 3AB661300M 3AB-66130-0 $38.27 1
(2) O-RING 1.9-6.8 345660210M 345-66021-0 $1.41 2
(3) CERAMIC BALL 7.7 369661160M 369-66116-0 $1.85 1
(4) SPRING 369661121M 369-66112-1 $1.61 1
(5) WASHER 10.5-18-1.5 332613150M 332-61315-0 $0.90 1
(6) SHIFT ROD LEVER 3AB662250M 3AB-66225-0 $4.52 1
(7) BOLT 9109036512M 910903-6512 $1.04 1
(8) CLUTCH CAM 3F0660110M 3F0-66011-0 $25.08 1
(9) CAM ROD S 3F0660120M 3F0-66012-0 FOR TRANSOM S $15.64 1
(9) CAM ROD L 3F0660130M 3F0-66013-0 FOR TRANSOM L $0.00 1 Sold Out View More Details
(10) SPRING PIN 3-8 9514070308M 951407-0308 $0.90 2
(11) CAM ROD BUSHING 3F0660310M 3F0-66031-0 $3.27 1
(12) O-RING 2.5-4.9 369660211M 369-66021-1 $1.27 1
(13) O-RING 2.4-9.5 301660230M 301-66023-0 $1.02 1
(14) SHIFT ROD 3AB662140M 3AB-66214-0 $27.97 1
(15) WASHER 9401030600M 940103-0600 $0.70 1
(16) SPLIT PIN 2-12 9515030212M 951503-0212 $0.97 1
(17) SHIFT ROD JOINT 369662410M 369-66241-0 $9.20 1
(18) BOLT 9101035616M 910103-5616 $1.15 1
