5. CAMSHAFT & VALVE

Click Here for Microfiche Usage Tip

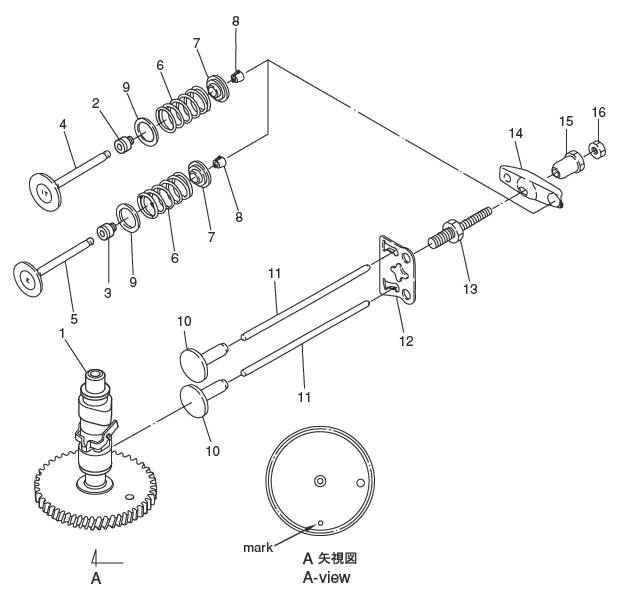

(1) CAMSHAFT ASSY(1) CAMSHAFT ASSY (OLD)(2) INTAKE VALVE STEM SEAL(3) EXHAUST VALVE STEM SEAL(4) INTAKE VALVE(5) EXHAUST VALVE(6) VALVE SPRING(6) VALVE SPRING(7) RETAINER(7) RETAINER(8) COTTER(8) COTTER(9) VALVE SPRING SEAT(9) VALVE SPRING SEAT(10) LIFTER(10) LIFTER(11) PUSH ROD(11) PUSH ROD(12) PUSH ROD PLATE(13) PIVOT BOLT(14) ROCKER ARM(15) ROCKER ARM PIVOT(16) ADJUSTING NUT (T=4.0)(16) ADJUSTING NUT (T=3.2)



Parts List
2009 :: 2.5 HP :: 4 Stroke Tohatsu MFS2.5B :: CAMSHAFT & VALVE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CAMSHAFT ASSY 3GT078100M 3GT-07810-0 3.5B/2.5B/2B~ $97.07 1
(1) CAMSHAFT ASSY (OLD) 3BM070101 3BM-07010-1 3.5A/2.5A/2A $105.98 0
(2) INTAKE VALVE STEM SEAL 3R3072040M 3R3-07204-0 BLACK $2.59 1
(3) EXHAUST VALVE STEM SEAL 3R3072060M 3R3-07206-0 GREEN $2.59 1 Sold Out View More Details
(4) INTAKE VALVE 3AB072010M 3AB-07201-0 $18.13 1
(5) EXHAUST VALVE 3V1072020M 3V1-07202-0 $18.70 1
(6) VALVE SPRING 3AE072030M 3AE-07203-0 L=35 / OR 3H6-07203-1 $3.43 2
(7) RETAINER 3V1072210M 3V1-07221-0 $4.03 2
(8) COTTER 3H6072230M 3H6-07223-0 $2.48 4
(9) VALVE SPRING SEAT 3H6072050M 3H6-07205-0 $1.30 2
(10) LIFTER 3AB072310M 3AB-07231-0 $5.21 2 Sold Out View More Details
(11) PUSH ROD 3H6072320M 3H6-07232-0 $3.63 2
(12) PUSH ROD PLATE 3AB072330M 3AB-07233-0 $0.00 1 Sold Out View More Details
(13) PIVOT BOLT 3H6072340M 3H6-07234-0 $1.71 2
(14) ROCKER ARM 3AB072350M 3AB-07235-0 $5.73 2
(15) ROCKER ARM PIVOT 3H6072360M 3H6-07236-0 $3.82 2
(16) ADJUSTING NUT 3H6079370M 3H6-07237-0 NEW / # 042923XH~ $1.11 2
(16) ADJUSTING NUT 3H6072370M 3H6-07237-0 OLD / ~# 036157XH $1.11 0
