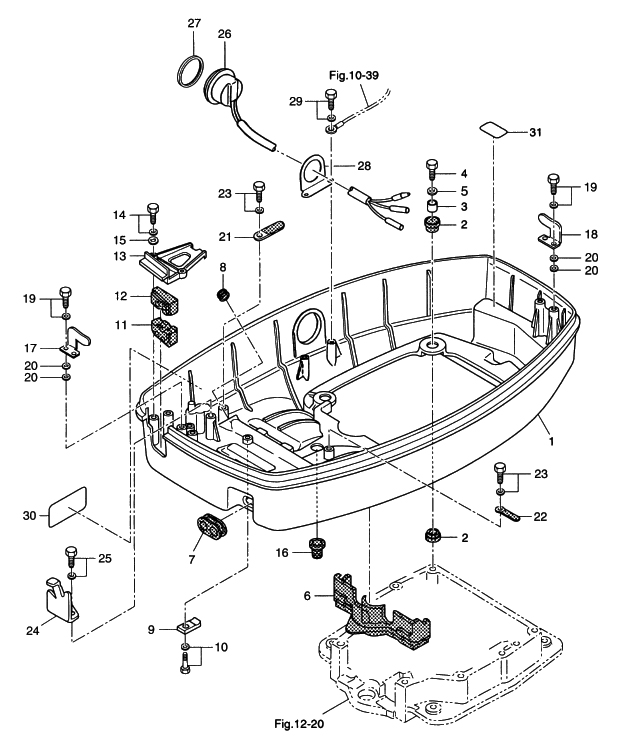

18. MOTOR COVER LOWER

Click Here for Microfiche Usage Tip
(1) MOTOR COVER LOWER(2) MOUNT RUBBER, 12-18-2.5(2) MOUNT RUBBER, 12-18-2.5(3) SPACER, 8.4-12-17(4) BOLT(5) WASHER, 8.5-24-1.5(6) GROMMET "A", LOWER COVER(7) GROMMET, OIL PIPE(8) GROMMET, POWER TRIM & TILT CORD(9) CLAMP, POWER TRIM & TILT CORD(10) BOLT(11) GROMMET, CORD(12) GROMMET, REMOTE CONTROL CABLE(13) CLAMP, CORD(14) BOLT(15) WASHER(16) GROMMET, 17-3(17) COVER STAY (FRONT)(18) COVER STAY (REAR)(19) BOLT(19) BOLT(20) WASHER(20) WASHER(21) CLAMP, 7-80P(22) CLAMP, 6.5-47.5P(23) BOLT(23) BOLT(24) CABLE CLIP(25) BOLT(26) POWER TRIM & TILT SWITCH(27) GASKET, POWER TRIM & TILT SWITCH(28) BRACKET, POWER TRIM & TILT SWITCH(29) BOLT(30) LABEL, INTERFERENCE(31) LABEL, SPARK PLUG(31) LABEL, RESISTANCE SPARK PLUG



Parts List
2003 :: 115 HP :: 2 Stroke Tohatsu M115A2 :: MOTOR COVER LOWER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MOTOR COVER LOWER 3C7S671001 3C7S67100-1 140A2 #13832~ / 120A2 # 22717~ $0.00 1 Sold Out View More Details
(2) RUBBER MOUNT 12-18-2.5 345671130M 345-67113-0 $1.71 8
(3) SPACER 8.4-12-17 3C7671140M 3C7-67114-0 $2.48 4
(4) BOLT 9101130835M 910113-0835 $2.14 4 Sold Out View More Details
(5) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.98 4 Sold Out View More Details
(6) BOTTOM COWL GROMMET A 3C7671640M 3C7-67164-0 $51.70 1
(7) OIL PIPE GROMMET 3C7671600M 3C7-67160-0 $0.00 1 Sold Out View More Details
(8) POWER TRIM & TILT CORD GROMMET 3C7771560M 3C7-77156-0 $2.86 1
(9) POWER TRIM & TILT CORD CLAMP 3C7725770M 3C7-72577-0 $0.00 1 Sold Out View More Details
(10) BOLT 9101135616M 910113-5616 $1.22 1 Sold Out View More Details
(11) GROMMET CORD 3C7761160M 3C7-76116-0 $7.05 1
(12) REMOTE CONTROL CABLE GROMMET 3C7837320M 3C7-83732-0 $4.70 1
(13) CLAMP CORD 3C7S761180 3C7S76118-0 $46.79 1
(14) BOLT 9101036625M 910103-6625 $1.09 2
(15) WASHER 9401130600M 940113-0600 $0.88 2
(16) GROMMET 17 - 3 345662260M 345-66226-0 $4.19 1
(17) COVER STAY (FRONT) 353675120M 353-67512-0 $0.00 1 Sold Out View More Details
(18) COVER STAY (REAR) 353675130M 353-67513-0 $16.27 1
(19) BOLT 9101036618M 910103-6618 $0.86 4
(20) WASHER 9401130600M 940113-0600 $0.88 8
(21) CLAMP 7-80P 353069720M 353-06972-0 $2.35 1
(22) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.21 1
(23) BOLT 9101036612M 910103-6612 $1.24 2
(24) CABLE CLIP 3B7837200M 3B7-83720-0 $10.58 1
(25) BOLT 9101036616M 910103-6616 $1.27 2
(26) POWER TRIM & TILT SWITCH 3E0726150M 3E0-72615-0 140A2 #13832~ / 120A2 # 22717~ $63.05 1
(27) GASKET PTT SWITCH 3F3726161M 3F3-72616-1 140A2 #13832~ / 120A2 # 22717~ $3.50 1 Sold Out View More Details
(28) BRACKET PTT SWITCH 3F3726171M 3F3-72617-1 140A2 #13832~ / 120A2 # 22717~ $8.12 1
(29) BOLT 9101036614M 910103-6614 140A2 #13832~ / 120A2 # 22717~ $1.16 2
(30) INTERFERENCE DECAL 3C7720300M 3C7-72030-0 $0.00 1 Sold Out View More Details
(31) LABEL SPARK PLUG 360720250 360-72025-0 $0.00 1 Sold Out View More Details
(31) LABEL RESISTANCE SPARK PLUG 3A3720260 3A3-72026-0 $0.00 1 Sold Out View More Details
