8. MAGNETO - STARTER MOTOR

Click Here for Microfiche Usage Tip

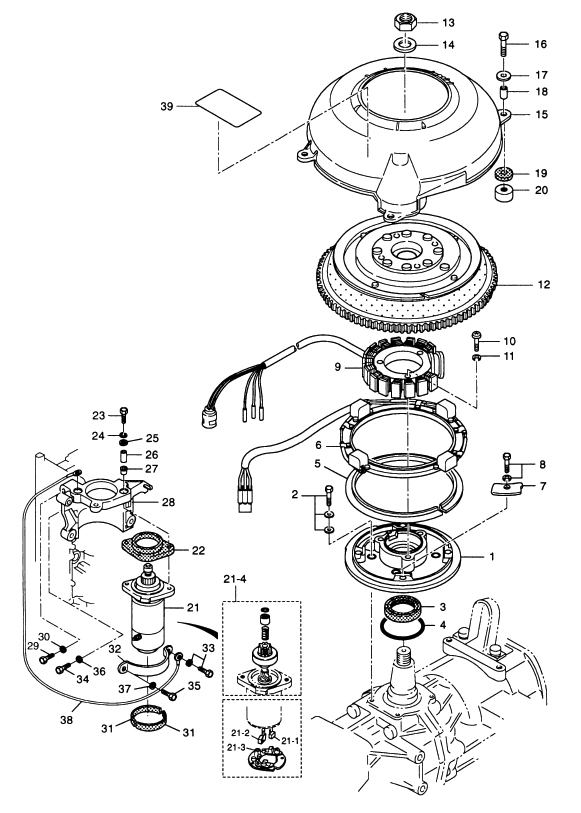

(1) GUIDE PLATE(2) BOLT(3) OIL SEAL, 40-52-6(4) O-RING, 2.4-59.6(5) BUSHING, GUIDE PLATE(6) PULSER COIL ASSY(7) SET PLATE, PULSER COIL(8) BOLT(9) ALTERNATOR(10) SCREW(11) SPRING WASHER(12) FLYWHEEL CUP (F4T402-71)(13) NUT, 18-P1.5(14) WASHER, 20.5-37-5(15) COVER, RING GEAR(16) BOLT(17) WASHER, 6-16-1.5(18) COLLAR, 6.2-9-9.3(19) MOUNT RUBBER, 9-16-4.3(20) WASHER, 6.2-16-4(21) STARTER MOTOR (S114-667)(21-1) BRUSH (+)(21-2) BRUSH (-)(21-3) SPRING, BRUSH(21-4) PINION(22) MOUNT RUBBER "B", STARTER MOTOR(23) BOLT(24) SPRING WASHER(25) WASHER, 8.5-24-1.5(26) SPACER, 8.4-12-21.5(27) MOUNT RUBBER "A", STARTER MOTOR(28) BRACKET, STARTER MOTOR(29) BOLT(30) SPRING WASHER(31) RUBBER, STARTER MOTOR(31) RUBBER, STARTER MOTOR(32) BAND, STARTER MOTOR(33) BOLT(34) BOLT(35) BOLT(36) SPRING WASHER(37) WASHER(38) STARTER CORD(39) CAUTION LABEL (CE-C)



Parts List
2003 :: 115 HP :: 2 Stroke Tohatsu M115A2 :: MAGNETO - STARTER MOTOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GUIDE PLATE 3C7637221M 3C7-63722-1 $73.63 1 Sold Out View More Details
(2) BOLT 9101217620M 910121-7620 $0.72 4
(3) OIL SEAL 40-52-6 3C7001220M 3C7-00122-0 $12.14 1
(4) O-RING 2.4-59.6 3C7014030M 121-32071-0 $6.31 1
(5) BUSHING GUIDE PLATE 3C7637280M 3C7-63728-0 $0.00 1 Sold Out View More Details
(6) PULSER COIL ASSY 3C7061301M 3C7-06130-1 140A2 #11885~ / 120A2 #21577~ $430.48 1
(7) SET PLATE PULSER COIL 3C7637230M 3C7-63723-0 $2.07 4 Sold Out View More Details
(8) BOLT 9101036612M 910103-6612 $1.16 4
(9) ALTERNATOR 3C7061230M 3C7-06123-0 $330.38 1
(10) SCREW 9215030628M 921503-0628 $1.13 3 Sold Out View More Details
(11) SPRING WASHER 9413030600M 941303-0600 $0.84 3
(12) FLYWHEEL CUP (F4T402-71) 3C7061011M 3C7-06101-1 140A2 #11885~ / 120A2 #21577~ $0.00 1 Sold Out View More Details
(13) NUT 20-P1.25 3C7001320M 3C7-00132-0 $6.47 1
(14) WASHER 20.5-37-5 3C7001330M 3C7-00133-0 $5.55 1
(15) COVER RING GEAR 3C7063010M 3C7-06301-0 $94.31 1 Sold Out View More Details
(16) BOLT 9101130630M 910113-0630 $1.21 4
(17) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 4 Sold Out View More Details
(18) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 $4.06 4
(19) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 $0.92 4
(20) WASHER 6.2-16-4 3C7063060M 3C7-06306-0 $1.43 4
(21) STARTER MOTOR 353760104M 353-76010-4 140A2 #12838~ / 120A2 #22105~ $453.45 1
(21-1) POSITIVE BRUSH (+) 353760123M 353-76012-3 140A2 #12838~ / 120A2 #22105~ $14.13 2
(21-2) NEGATIVE BRUSH (-) 353760133M 353-76013-3 140A2 #12838~ / 120A2 #22105~ $10.35 1
(21-3) BRUSH SPRING 353760171M 353-76017-1 140A2 #12838~ / 120A2 #22105~ $0.00 3 Sold Out View More Details
(21-4) PINION ASSY 353760151M 353-76015-1 140A2 #12838~ / 120A2 #22105~ $0.00 1 Sold Out View More Details
(22) STARTER MOTOR MOUNT B 3C7760050M 3C7-76005-0 $11.48 1
(23) BOLT 9101130840M 910113-0840 $3.17 2
(24) SPRING WASHER 9413030800M 941303-0800 $0.79 2
(25) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.85 2
(26) SPACER 8.4-12-21.5 3C7760030M 3C7-76003-0 $2.56 2
(27) STARTER MOTOR MOUNT A 3C7760040M 3C7-76004-0 $2.07 2
(28) BRACKET STARTER MOTOR 3C7B051010 3C7B05101-0 $0.00 1 Sold Out View More Details
(29) BOLT 9161140845M 916114-0845 $0.00 2 Sold Out View More Details
(30) SPRING WASHER 9413220800M 941322-0800 $0.92 2
(31) DAMPER 3C7760071M 3C7-76007-1 $0.00 2 Sold Out View More Details
(32) STARTER MOTOR BAND 353760092M 353-76009-2 $15.21 1
(33) BOLT 9101135840M 910113-5840 $3.17 1
(34) BOLT 9101140845M 910114-0845 $1.34 1 Sold Out View More Details
(35) BOLT 9101030820M 9101E3-0820 $1.87 1
(36) SPRING WASHER 9413030800M 941303-0800 $0.79 1
(37) WASHER 9401130800M 940113-0800 $0.84 1
(38) STARTER CORD 3C7761410M 3C7-76141-0 L=300 $34.51 1 Sold Out View More Details
(39) CAUTION LABEL (CE-C) 3C7721822M 3C7-72182-2 $1.53 1
