5. CARBURETOR

Click Here for Microfiche Usage Tip

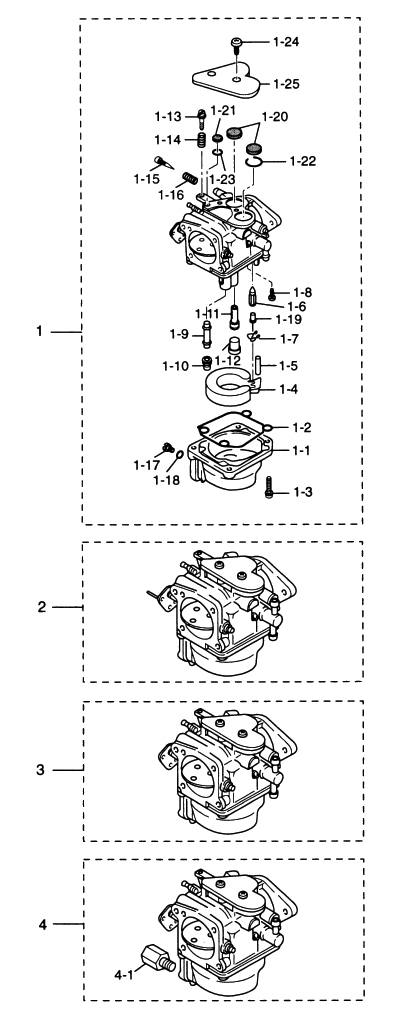

(1) CARBURETOR UPPER(1-1) FLOAT CHAMBER(1-2) O-RING, FLOAT CHAMBER(1-3) SCREW(1-4) FLOAT(1-5) ARM PIN, FLOAT(1-6) FLOAT VALVE(1-7) CLIP(1-8) SCREW(1-9) MAIN NOZZLE(1-10) MAIN JET # 162(1-11) SLOW JET # 75(1-12) RUBBER CAP(1-13) STOP SCREW(1-14) SPRING "A"(1-15) ADJUST SCREW(1-16) SPRING "B"(1-17) DRAIN SCREW(1-18) O-RING(1-19) VALVE PIN(1-20) GASKET "A", CARBURETOR COVER(1-21) GASKET "B", CARBURETOR COVER(1-22) PLATE "A", COVER GASKET(1-23) PLATE "B", COVER GASKET(1-24) SCREW(1-25) CARBURETOR COVER(2) CARBURETOR SECOND(3) CARBURETOR THIRD(4) CARBURETOR LOWER(4-1) DRAIN SCREW



Parts List
2003 :: 115 HP :: 2 Stroke Tohatsu M115A2 :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR UPPER 3E0032001M 3E0-03200-1 120A2 #21577~ $172.74 1
(1-1) FLOAT CHAMBER 353032210M 353-03221-0 X 4 UPPER SECOND THIRD LOWER $0.00 1 Sold Out View More Details
(1-2) O-RING FLOAT CHAMBER 346032220M 346-03222-0 X 4 $6.54 1
(1-3) SCREW 9225036414M 922503-6414 X 4 $1.27 4
(1-4) FLOAT 346032310M 346-03231-0 X 4 $23.01 1
(1-5) ARM PIN FLOAT HINGE 346032320M 346-03232-0 X 4 $2.31 1
(1-6) FLOAT VALVE 3B7032400M 3B7-03240-0 X 4 $11.02 1
(1-7) CLIP 344032440M 344-03244-0 X 4 $3.51 1
(1-8) SCREW 3F3032340M 3F3-03234-0 X 4 $1.21 1
(1-9) MAIN NOZZLE 3C7032520M 3C7-03252-0 X 4 $18.20 1
(1-10) MAIN JET # 162 3C7032510M 3C7-03251-0 X 4 $6.84 1
(1-11) SLOW JET # 75 3C7032550M 3C7-03255-0 X 4 $11.80 1
(1-12) RUBBER CAP 346032560M 346-03256-0 X 4 $2.25 1
(1-13) STOP SCREW 346032650M 346-03265-0 CARBURETOR UPPER $4.54 1
(1-14) SPRING A 346032670M 346-03267-0 CARBURETOR UPPER $2.08 1
(1-15) ADJUST SCREW 346032660M 346-03266-0 X 4 $7.59 1
(1-16) SPRING B 353032680M 353-03268-0 X 4 $1.44 1
(1-17) DRAIN SCREW 345032920M 345-03292-0 X 3 UPPER SECOND THIRD $3.91 1
(1-18) O-RING 336032930M 336-03293-0 X 4 $1.79 1
(1-19) VALVE PIN 334032420M 334-03242-0 X 4 $1.61 1
(1-20) GASKET A CARBURETOR 3C7031820M 3C7-03182-0 X 4 $2.25 2
(1-21) GASKET B CARBURETOR 3C7031830M 3C7-03183-0 X 4 $1.85 1
(1-22) PLATE A COVER GASKET 3C7031840M 3C7-03184-0 X 4 $1.53 1
(1-23) PLATE B COVER GASKET 3C7031850M 3C7-03185-0 X 4 $2.35 1
(1-24) SCREW 3C7031860M 3C7-03186-0 X 4 $2.37 1
(1-25) CARBURETOR COVER 3C7-03181-0 NA X 4 $0.00 1 Sold Out View More Details
(2) CARBURETOR SECOND 3C7032041M 3C7-03204-1 140A2 # 11885~ / 120A2 # 21577~ $266.94 1
(3) CARBURETOR THIRD 3C7032051M 3C7032051M $266.94 1
(4) CARBURETOR LOWER 3C7032101M 3C7-03210-1 $266.94 1
(4-1) DRAIN SCREW 3C7032920M 3C7-03292-0 CARBURETOR LOWER $6.90 1
