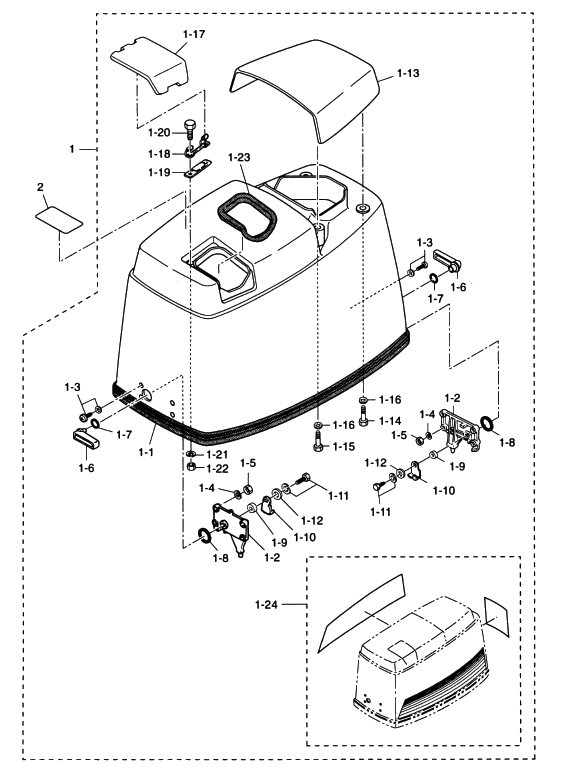

19. MOTOR COVER UPPER

Click Here for Microfiche Usage Tip
(1) MOTOR COVER UPPER(1) MOTOR COVER UPPER(1-1) SEAL RUBBER, MOTOR COVER UPPER(1-2) LOCATING BRACKET(1-2) LOCATING BRACKET(1-3) SCREW(1-3) SCREW(1-4) SPRING WASHER(1-4) SPRING WASHER(1-5) NUT(1-5) NUT(1-6) HOOK LEVER(1-6) HOOK LEVER(1-7) O-RING, 1.5-1.9(1-7) O-RING, 1.5-1.9(1-8) SEAL RING(1-8) SEAL RING(1-9) BUSHING, 12-14-12(1-9) BUSHING, 12-14-12(1-10) COVER HOOK(1-10) COVER HOOK(1-11) BOLT(1-11) BOLT(1-12) WASHER, 6-16-1.5(1-12) WASHER, 6-16-1.5(1-13) TILT HANDLE(1-14) BOLT(1-15) BOLT(1-16) WASHER, 6-16-1.5(1-16) WASHER, 6-16-1.5(1-17) FILLER LID(1-18) HINGE, FILLER LID(1-19) SPRING, FILLER LID(1-20) BOLT(1-21) WASHER(1-22) NUT(1-23) SEAL RUBBER, FILLER LID(1-24) DECAL SET(1-24) DECAL SET(2) CAUTION LABEL (CE-A)



Parts List
2003 :: 115 HP :: 2 Stroke Nissan NS115A2 :: MOTOR COVER UPPER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MOTOR COVER UPPER 3C7S675102 3C7S67510-2 TOHATSU $791.41 1 Sold Out View More Details
(1) MOTOR COVER UPPER 3D9N675105 3D9N67510-5 NISSAN $0.00 1 Sold Out View More Details
(1-1) TOP COWL SEAL 3C7675010M 3C7-67501-0 L=1920 $43.07 1
(1-2) LOCATING BRACKET 353675171M 353-67517-1 $0.00 2 Sold Out View More Details
(1-3) SCREW 9217035520M 921703-5520 $0.41 8
(1-4) SPRING WASHER 9413030500M 941303-0500 $0.97 8
(1-5) NUT 9301110500M 930111-0500 $0.00 8 Sold Out View More Details
(1-6) HOOK LEVER 353S671410 353S67141-0 $24.62 2
(1-7) O-RING 1.5-9.5 338624350M 338-62435-0 $1.50 2
(1-8) SEAL RING 353671471M 353-67147-1 $2.48 2
(1-9) BUSHING 12-14-12 353671050M 353-67105-0 $1.50 2
(1-10) COVER HOOK 353671421M 353-67142-1 $11.79 2
(1-11) BOLT 9101036616M 910103-6616 $1.27 2
(1-12) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.70 2
(1-13) TILT HANDLE 3C7S67521-0 NA $0.00 2 Sold Out View More Details
(1-14) BOLT 9101130630M 910113-0630 $1.30 2 Sold Out View More Details
(1-15) BOLT 9101130616M 910113-0616 $1.04 2
(1-16) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.70 4
(1-17) FILLER LID 3B7S672100 3B7S67210-0 $0.00 1 Sold Out View More Details
(1-18) FILLER LID HINGE 3B7672110M 3B7-67211-0 $3.27 1
(1-19) SPRING FILLER LID 3B7672120M 3B7-67212-0 $15.99 1
(1-20) BOLT 9101030614M 910103-0614 $0.83 2
(1-21) WASHER 9401130600M 940113-0600 $0.88 2
(1-22) NUT 9301130600M 930113-0600 $0.90 2 Sold Out View More Details
(1-23) SEAL RUBBER FILLER LID 3B7672130M 3B7-67213-0 $4.69 1
(1-24) DECAL SET 3E0S878021 3E0S87802-1 TOHATSU $114.11 1 Sold Out View More Details
(1-24) DECAL SET 3E1N878015 3E1N87801-5 NISSAN $0.00 1 Sold Out View More Details
(2) CAUTION LABEL (CE-A) 3C7-72180-1 NA $0.00 1 Sold Out View More Details
