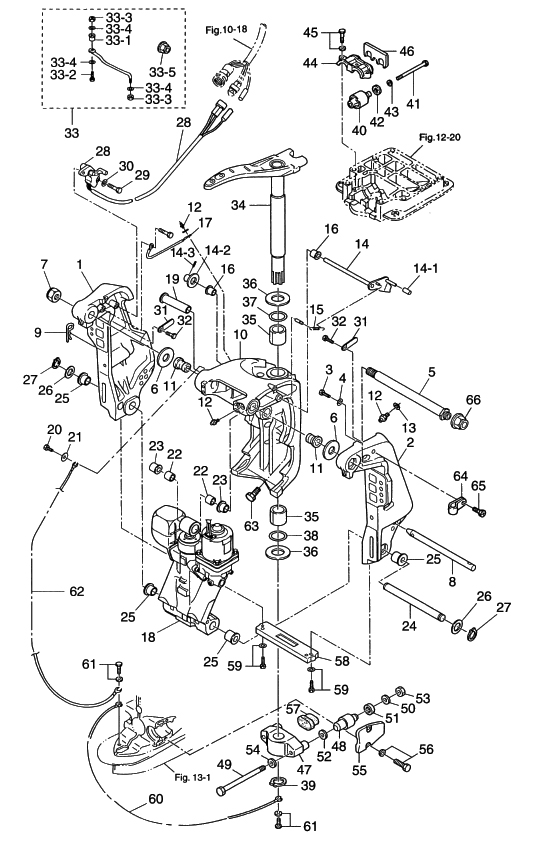

16. BRACKET

Click Here for Microfiche Usage Tip
(1) STERN BRACKET RIGHT(2) STERN BRACKET LEFT(3) BOLT(4) WASHER(5) BRACKET BOLT(6) WASHER, 25.7-50-1(6) WASHER, 25.7-50-1(7) NYLON NUT, 7/8(8) THRUST ROD(9) PIN, THRUST ROD(10) SWIVEL BRACKET(11) BUSHING, 25.6-28.6-40(11) BUSHING, 25.6-28.6-40(12) GREASE NIPPLE(12) GREASE NIPPLE(12) GREASE NIPPLE(13) WASHER(14) TILT STOPPER(14-1) GRIP, TILT STOPPER(14-2) WASHER, 10.5-18-1.5(14-3) SPRING PIN, 3.5-16(15) SPRING, TILT STOPPER(16) COLLAR,10.2-12-12(16) COLLAR,10.2-12-12(17) GROUND CABLE(18) POWER TRIM & TILT(19) CYLINDER PIN UPPER(20) BOLT(21) WASHER, 6.5-23-1.5(22) BUSHING,18-24-19(22) BUSHING,18-24-19(23) BUSHING, 18-20-20.5(23) BUSHING, 18-20-20.5(24) CYLINDER PIN LOWER(25) BUSHING, 22-25.4-23.5(25) BUSHING, 22-25.4-23.5(25) BUSHING, 22-25.4-23.5(25) BUSHING, 22-25.4-23.5(26) WASHER, 22.6-30-2(26) WASHER, 22.6-30-2(27) C-RING, D=22(27) C-RING, D=22(28) TRIM SENDER(28) TRIM SENDER(29) BOLT(30) WASHER, 6-16-1.5(31) CLAMP, 6.5-47.5P(31) CLAMP, 6.5-47.5P(32) BOLT(32) BOLT(33) DRAG LINK "H"(33-1) SPACER, DRAG LINK "H"(33-2) BOLT, 3/8-50(33-3) NYLON NUT, 3/8(33-3) NYLON NUT, 3/8(33-4) WASHER, 9.6-18-2(33-4) WASHER, 9.6-18-2(33-4) WASHER, 9.6-18-2(33-5) SEAL RING, DRAG LINK(34) STEERING SHAFT(35) BUSHING, 32-40-45(35) BUSHING, 32-40-45(36) THRUST PLATE(36) THRUST PLATE(37) SEAL RING, STEERING SHAFT(38) O-RING, 4.5-32(39) C-RING, D=32(40) UPPER, MOUNT RUBBER(41) BOLT, UPPER MOUNT RUBBER(42) DAMPER RUBBER, 21-36-5(43) WASHER, 12.2-36-3(44) CAP, UPPER MOUNT RUBBER(45) BOLT(46) DAMPER, UPPER MOUNT RUBBER(47) MOUNT BRACKET(48) LOWER, MOUNT RUBBER(49) BOLT, LOWER MOUNT RUBBER(50) WASHER, 13-34-3(51) DAMPER RUBBER, 21-36-5(52) WASHER, 12.2-25-2(53) NUT,12-P1.5(54) WASHER(55) CAP, LOWER MOUNT RUBBER(56) BOLT, 8-25(57) DAMPER RUBBER(58) ANODE(59) BOLT(59) BOLT(60) GROUND CABLE(61) BOLT(61) BOLT(62) GROUND CABLE(63) BOLT, 12-20(64) CLAMP, 6.5-14L(65) SCREW(66) SEAL RING, DRAG LINK



Parts List
2003 :: 115 HP :: 2 Stroke Nissan NS115A2 :: BRACKET
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STERN BRACKET R 3E0S621120 3E0S62112-0 STARBOARD $183.61 1 Sold Out View More Details
(2) STERN BRACKET LEFT 3E0S621131 3E0S62113-1 PORT $188.86 1 Sold Out View More Details
(3) BOLT 9102131020M 910213-1020 $0.00 1 Sold Out View More Details
(4) WASHER 9402131000M 940213-1000 $1.04 1 Sold Out View More Details
(5) SWIVEL BRACKET SHAFT 3E0621911M 3E0-62191-1 $107.87 1 Sold Out View More Details
(6) WASHER 25.7-50-1 3E0621161M 3E0621160M $1.52 2
(7) NYLON NUT 7/8 346621240M 346-62124-0 $21.14 1
(8) THRUST ROD 3E0621211M 3E0-62121-1 $0.00 1 Sold Out View More Details
(9) R-PIN D=10 3B7621291M 3B7-62129-1 $10.81 1
(10) SWIVEL BRACKET ASSY 3E0S623130 3E0S62313-0 $0.00 1 Sold Out View More Details
(11) BUSHING 25.6-28.6-40 3E0621260M 3E0-62126-0 $2.31 2
(12) GREASE FITTING 344671770M 344-67177-0 $2.56 5 Sold Out View More Details
(13) WASHER 9401130600M 940113-0600 $0.83 1
(14) TILT STOPPER 3E0S624311 3E0S62431-1 $53.45 1
(14-1) GRIP TILT STOPPER 3E0624330M 3E0-62433-0 $1.71 1 Sold Out View More Details
(14-2) WASHER 10.5-18-1.5 332613150M 332-61315-0 $0.90 1
(14-3) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(15) SPRING TILT STOPPER 3E0624731M 3E0-62473-1 $4.63 1 Sold Out View More Details
(16) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.10 2
(17) GROUND CABLE 3C8621580M 3C8-62158-0 L=130 $5.75 1 Sold Out View More Details
(18) POWER TRIM & TILT ASSY 3E0S771500 3E0S77150-0 $3,254.48 1
(19) CYLINDER PIN (UPPER) 3C8770710M 3C8-77071-0 $10.81 1 Sold Out View More Details
(20) BOLT 9101130612M 910113-0612 $0.84 1
(21) WASHER 6.5 - 23 -1.5 345051220M 345-05122-0 $2.17 1
(22) BUSHING 18-24-19 3C8770750M 3C8-77075-0 $2.07 2
(23) BUSHING 18-20-20.5 3E0770760M 3E0-77076-0 $2.31 2
(24) CYLINDER PIN (LOWER) 3E0771010M 3E0-77101-0 $49.09 1
(25) BUSHING 22-25.4-23.5 3E0771030M 3E0-77103-0 $2.31 4
(26) WASHER 22.6-30-2 346624121M 346-62412-1 $2.08 2
(27) C-RING D=22 9451032200M 945103-2200 $1.85 2
(28) TRIM SENDER 3E0725740M 3E0-72574-0 L=1500 $123.19 1
(29) BOLT 9101130620M 910113-0620 $1.04 2
(30) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(31) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 2
(31) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 2
(32) BOLT 9101130612M 910113-0612 $0.84 2
(32) BOLT 9101130612M 910113-0612 $0.84 2
(33) DRAG LINK H ASSY 3E0849050M 3E0-84905-0 $154.19 1
(33) DRAG LINK H ASSY 3E0849050M 3E0-84905-0 $154.19 1
(33-1) SPACER 3E0849140M 3E0-84914-0 $7.32 1
(33-1) SPACER 3E0849140M 3E0-84914-0 $7.32 1
(33-2) BOLT 3/8 - 50 3E0849170M 3E0-84917-0 $11.28 1
(33-3) NYLON NUT 3/8 353849180M 353-84918-0 $6.59 2
(33-3) NYLON NUT 3/8 353849180M 353-84918-0 $6.59 2
(33-4) WASHER 9.6-18-2 353849160M 353-84916-0 $1.45 3
(33-4) WASHER 9.6-18-2 353849160M 353-84916-0 $1.45 3
(33-5) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.56 1 Sold Out View More Details
(34) STEERING SHAFT 3C7S620100 3C7S62010-0 $321.31 1 Sold Out View More Details
(35) BUSHING 32-40-45 3B7624170M 3B7-62417-0 $7.59 2
(36) THRUST PLATE 3B7624231M 3B7-62423-1 $3.13 2
(36) THRUST PLATE 3B7624231M 3B7-62423-1 $3.13 2
(37) STEERING SHAFT SEAL RING 3B7624140M 3B7-62414-0 $0.00 1 Sold Out View More Details
(37) STEERING SHAFT SEAL RING 3B7624140M 3B7-62414-0 $0.00 1 Sold Out View More Details
(38) O-RING 4.5-32 3B7624150M 3B7-62415-0 $3.00 1
(39) C-RING D=32 9451033200M 945103-3200 $2.01 1
(40) RUBBER MOUNT (UPPER) 3C7613010M 3C7-61301-0 $71.35 2
(40) RUBBER MOUNT (UPPER) 3C7613010M 3C7-61301-0 $71.35 2
(41) RUBBER MOUNT BOLT (UPPER) 3C7613071M 3C7-61307-1 $8.19 2
(42) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(42) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(43) WASHER 12.2-36-3 3C7613350M 3C7-61335-0 $3.27 2
(43) WASHER 12.2-36-3 3C7613350M 3C7-61335-0 $3.27 2
(44) CAP UPPER MOUNT RUBBER 3C7S613411 3C7S61341-1 $26.50 1
(44) CAP UPPER MOUNT RUBBER 3C7S613411 3C7S61341-1 $26.50 1
(45) BOLT 9101135835M 910113-5835 $3.28 3
(46) DAMPER (UPPER) 3C7613390M 3C7-61339-0 $15.46 1
(47) MOUNT BRACKET 3C7S61411-2 NA $0.00 1 Sold Out View More Details
(47) MOUNT BRACKET 3C7S61411-2 NA $0.00 1 Sold Out View More Details
(48) LOWER MOUNT RUBBER 353613020M 353-61302-0 $55.20 2
(48) LOWER MOUNT RUBBER 353613020M 353-61302-0 $55.20 2
(49) RUBBER MOUNT BOLT (LOWER) 353613213M 353-61321-3 $15.81 2
(49) RUBBER MOUNT BOLT (LOWER) 353613213M 353-61321-3 $15.81 2
(50) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(50) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(51) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(52) WASHER 12.2-25-2 353613151M 353-61315-1 $3.20 2
(52) WASHER 12.2-25-2 353613151M 353-61315-1 $3.20 2
(53) NUT 12-P1.5 3B7613240M 3B7-61324-0 $4.78 2
(53) NUT 12-P1.5 3B7613240M 3B7-61324-0 $4.78 2
(54) WASHER 9402131200M 940213-1200 $2.10 2
(55) CAP LOWER MOUNT RUBBER 3B7S613420 3B7S61342-0 $0.00 2 Sold Out View More Details
(56) BOLT 8-25 3N4613430M 3N4-61343-0 $1.62 4
(57) RUBBER DAMPER (LOWER) 3C7613360M 3C7-61336-0 $11.02 1
(58) ANODE 3C7602182M 3C7-60218-2 $19.84 1
(59) BOLT 9101036630M 910103-6630 $1.30 2
(60) GROUND CABLE 3A3623960M 3A3-62396-0 L=110 $17.85 1
(61) BOLT 9101135612M 910113-5612 $1.07 2
(62) GROUND WIRE 3B7623960M 3B7-62396-0 L=210 $4.56 1
(63) BOLT 12-20 P-1.75 3B7770851M 3B7-77085-1 $2.76 2 Sold Out View More Details
(64) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(65) SCREW 9215035612M 921503-5612 $0.86 1
(66) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.56 1 Sold Out View More Details
