13. GEAR CASE (DRIVE SHAFT)

Click Here for Microfiche Usage Tip

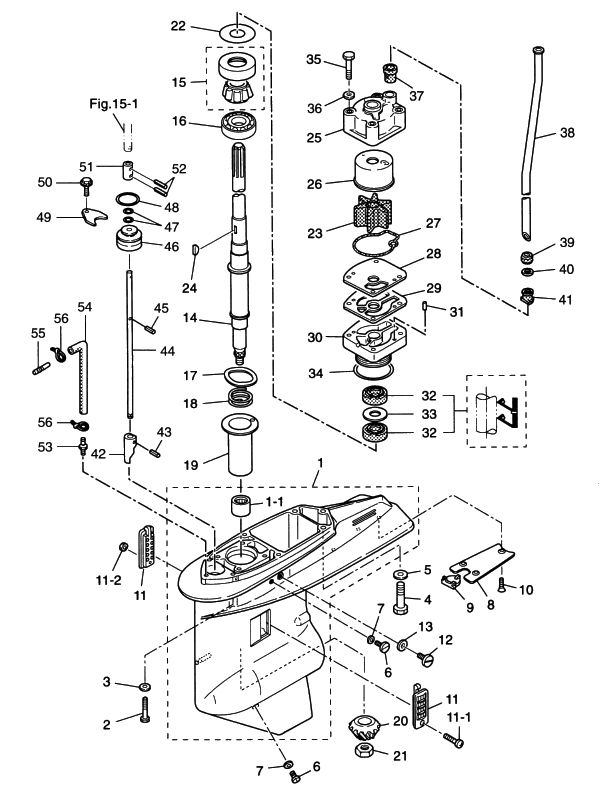

(1) GEAR CASE(1-1) NEEDLE BEARING, 28.6-38.1-31.8(2) BOLT(3) WASHER(4) BOLT,10-40(5) WASHER(6) OIL PLUG(6) OIL PLUG(7) GASKET, 8.1-15-1(7) GASKET, 8.1-15-1(8) PLATE, GEAR CASE(9) HOLE PLUG, GEAR CASE PLATE(10) SCREW(11) WATER STRAINER SET(11) WATER STRAINER SET(11-1) SCREW(11-2) NYLON NUT, 4-P0.7(12) WATER PLUG(13) GASKET, 10.1-15-1(14) DRIVE SHAFT L(14) DRIVE SHAFT UL(15) BEARING, 0506(16) BEARING,16007(17) WAVE WASHER, D=47.2(18) SPRING, DRIVE SHAFT(19) GUIDE, DRIVE SHAFT SPRING(20) BEVEL GEAR B(21) NUT, BEVEL GEAR B(22) SHIM, 52-60.5-0.3(22) SHIM, 52-60.5-0.15(22) SHIM, 52-60.5-0.1(23) IMPELLER, WATER PUMP(24) KEY, WATER PUMP IMPELLER(25) UPPER, PUMP CASE(26) LINER, PUMP CASE(27) SEAL, PUMP CASE(28) GUIDE PLATE, WATER PUMP(29) GASKET, GUIDE PLATE(30) LOWER, PUMP CASE(31) KNOCK, 4-10(32) OIL SEAL, 22-42-7(32) OIL SEAL, 22-42-7(33) SPACER, 35-41.9-0.5(34) O-RING, 3.1-54.4(35) BOLT(36) WASHER(37) LOWER SEAL RUBBER, WATER PIPE(38) WATER PIPE L(38) WATER PIPE UL(39) UPPER SEAL RUBBER, WATER PIPE(40) COLLAR, 18-20-4.5(41) LOCKING RUBBER, WATER PIPE(42) CLUTCH CAM(43) SPRING PIN, 3.5-16(44) CAM ROD L(44) CAM ROD UL(45) SPRING PIN, 3.5-10(46) BUSHING, CAM ROD(47) O-RING, 1.9-6.8(48) O-RING, 3.5-27.7(49) STOPPER(50) BOLT(51) JOINT, SHIFT ROD(52) SPRING PIN, 3.5-16(53) NIPPLE, 6-1/8(54) PIPE A, SPEEDOMETER L(54) PIPE A, SPEEDOMETER UL(55) NIPPLE, 6-6(56) BAND, LEAD WIRE 100(56) BAND, LEAD WIRE 100



Parts List
2003 :: 115 HP :: 2 Stroke Nissan NS115A2 :: GEAR CASE (DRIVE SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE 3C7S600005 3C7S60000-5 $772.97 1
(1-1) NEEDLE BEARING 28.6-38.1-31.8 3C7602111M 3C7-60211-1 $55.07 1
(2) BOLT 8-35 9161890835M 916189-0835 $5.35 4
(3) WASHER 9402130800M 940213-0800 $0.60 4
(4) BOLT 10-40 3B7600012M 3B7-60001-2 $8.33 3
(5) WASHER 9402131000M 940213-1000 $1.04 3 Sold Out View More Details
(6) WATER PLUG 332600052M 332-60005-2 $5.07 2
(7) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 2
(8) GEAR CASE PLATE 3B7600121M 3B7-60012-1 $13.90 1
(9) GEAR CASE PLATE PLUG 3B7600130M 3B7-60013-0 $2.56 1
(10) SCREW 9216130614M 921613-0614 $0.69 3 Sold Out View More Details
(11) WATER STRAINER SET 3C7602351M 3C7-60235-1 $13.35 1
(11-1) SCREW 9215030445M 921503-0445 $1.13 1
(11-1) SCREW 9215030445M 921503-0445 $1.13 1
(11-2) NYLON NUT 4P-0.7 9304060400M 930406-0400 OR 930403-0400 $1.68 1
(11-2) NYLON NUT 4P-0.7 9304060400M 930406-0400 OR 930403-0400 $1.68 1
(12) WATER PLUG 3B7600151M 3B7-60015-1 $5.29 1
(12) WATER PLUG 3B7600151M 3B7-60015-1 $5.29 1
(13) GASKET 10.1-15-1 3B7600160M 3B7-60016-0 $2.31 1 Sold Out View More Details
(13) GASKET 10.1-15-1 3B7600160M 3B7-60016-0 $2.31 1 Sold Out View More Details
(14) DRIVE SHAFT L 3C7643022M 3C7-64302-2 FOR TRANSOM L $543.87 1
(14) DRIVE SHAFT L 3C7643022M 3C7-64302-2 FOR TRANSOM L $543.87 1
(14) DRIVE SHAFT UL 3C7643032M 3C7-64303-2 FOR TRANSOM UL $562.96 1
(14) DRIVE SHAFT UL 3C7643032M 3C7-64303-2 FOR TRANSOM UL $562.96 1
(15) BEARING 0506 3C7602130M 3C7-60213-0 $44.07 1
(15) BEARING 0506 3C7602130M 3C7-60213-0 $44.07 1
(16) BEARING 16007 3C7602140M 3C7-60214-0 $26.40 1
(16) BEARING 16007 3C7602140M 3C7-60214-0 $26.40 1
(17) WAVE WASHER D=47.2 3C7602100M 3C7-60210-0 $4.38 1
(17) WAVE WASHER D=47.2 3C7602100M 3C7-60210-0 $4.38 1
(18) DRIVE SHAFT SPRING 3C7643270M 3C7-64327-0 $5.29 1 Sold Out View More Details
(18) DRIVE SHAFT SPRING 3C7643270M 3C7-64327-0 $5.29 1 Sold Out View More Details
(19) DRIVE SHAFT SPRING GUIDE 3C7643280M 3C7-64328-0 $8.05 1
(19) DRIVE SHAFT SPRING GUIDE 3C7643280M 3C7-64328-0 $8.05 1
(20) BEVEL GEAR B 3C7640200M 3C7-64020-0 $165.19 1
(20) BEVEL GEAR B 3C7640200M 3C7-64020-0 $165.19 1
(21) BEVEL GEAR B NUT 3B7640270M 3B7-64027-0 $10.41 1
(22) SHIM 52-60.5-0.3 353640140M 353-64014-0 $1.14 0
(22) SHIM 52-60.5-0.15 353640150M 353-64015-0 $1.23 0
(22) SHIM 52-60.5-0.15 353640150M 353-64015-0 $1.23 0
(22) SHIM 52-60.5-0.1 353640160M 353-64016-0 $1.49 0
(22) SHIM 52-60.5-0.1 353640160M 353-64016-0 $1.49 0
(23) WATER PUMP IMPELLER 3C7650211M 3C7-65021-1 $24.25 1
(23) WATER PUMP IMPELLER 3C7650211M 3C7-65021-1 $24.25 1
(24) WATER PUMP IMPELLER KEY 3B7650220M 3B7-65022-0 $10.98 1
(24) WATER PUMP IMPELLER KEY 3B7650220M 3B7-65022-0 $10.98 1
(25) PUMP CASE (UPPER) 3C7650160M 3C7-65016-0 $48.67 1
(25) PUMP CASE (UPPER) 3C7650160M 3C7-65016-0 $48.67 1
(26) PUMP CASE LINER 3C7650110M 3C7-65011-0 $19.84 1
(26) PUMP CASE LINER 3C7650110M 3C7-65011-0 $19.84 1
(27) PUMP CASE SEAL 3C7650180M 3C7-65018-0 $3.39 1
(27) PUMP CASE SEAL 3C7650180M 3C7-65018-0 $3.39 1
(28) WATER PUMP GUIDE PLATE 3C7650250M 3C7-65025-0 $13.51 1
(28) WATER PUMP GUIDE PLATE 3C7650250M 3C7-65025-0 $13.51 1
(29) GUIDE PLATE GASKET 3C7650290M 3C7-65029-0 $2.56 1
(29) GUIDE PLATE GASKET 3C7650290M 3C7-65029-0 $2.56 1
(30) PUMP CASE (LOWER) 3C7650172M 3C7-65017-2 $96.69 1
(30) PUMP CASE (LOWER) 3C7650172M 3C7-65017-2 $96.69 1
(31) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(31) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(32) OIL SEAL 22-42-7 3C7602231M 3C7-60223-1 $4.95 2
(32) OIL SEAL 22-42-7 3C7602231M 3C7-60223-1 $4.95 2
(33) SHIM 35 – 41.9 – 0.5 346640840M 346-64084-0 $2.18 1
(33) SHIM 35 – 41.9 – 0.5 346640840M 346-64084-0 $2.18 1
(34) O-RING 3.1-54.4 3B7650150M 3B7-65015-0 $3.91 1
(34) O-RING 3.1-54.4 3B7650150M 3B7-65015-0 $3.91 1
(35) BOLT 9161130885M 916113-0885 $3.50 4
(35) BOLT 9161130885M 916113-0885 $3.50 4
(36) WASHER 9401130800M 940113-0800 $0.84 4
(36) WASHER 9401130800M 940113-0800 $0.84 4
(37) WATER PIPE SEAL (LOWER) 3C7650140M 3C7-65014-0 $2.31 1
(37) WATER PIPE SEAL (LOWER) 3C7650140M 3C7-65014-0 $2.31 1
(38) WATER PIPE L 3C7651100M 3C7-65110-0 FOR TRANSOM L $22.54 1
(38) WATER PIPE L 3C7651100M 3C7-65110-0 FOR TRANSOM L $22.54 1
(38) WATER PIPE UL 3C7651200M 3C7-65120-0 FOR TRANSOM UL $25.33 1
(38) WATER PIPE UL 3C7651200M 3C7-65120-0 FOR TRANSOM UL $25.33 1
(39) WATER PIPE SEAL (UPPER) 3C7652060M 3C7-65206-0 $2.56 1
(39) WATER PIPE SEAL (UPPER) 3C7652060M 3C7-65206-0 $2.56 1
(40) COLLAR 18-20-4.5 345652050M 345-65205-0 $2.22 1
(40) COLLAR 18-20-4.5 345652050M 345-65205-0 $2.22 1
(41) WATER PIPE AUXILIARY MOUNT 3C7652040M 3C7-65204-0 $2.56 1
(41) WATER PIPE AUXILIARY MOUNT 3C7652040M 3C7-65204-0 $2.56 1
(42) CLUTCH CAM 3B7660111M 3B7-66011-1 $52.86 1
(42) CLUTCH CAM 3B7660111M 3B7-66011-1 $52.86 1
(43) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(44) CAM ROD L 3B7660131M 3B7-66013-1 FOR TRANSOM L $20.02 1
(44) CAM ROD UL 3B7660141M 3B7-66014-1 FOR TRANSOM UL $21.90 1
(45) SPRING PIN 3.5-10 9514033510M 951403-3510 $0.49 1
(45) SPRING PIN 3.5-10 9514033510M 951403-3510 $0.49 1
(46) CAM ROD BUSHING 3B7660311M 3B7-66031-1 $23.01 1
(46) CAM ROD BUSHING 3B7660311M 3B7-66031-1 $23.01 1
(47) O-RING 1.9-6.8 345660210M 345-66021-0 $1.41 2
(47) O-RING 1.9-6.8 345660210M 345-66021-0 $1.41 2
(48) O-RING 3.5-27.7 3B7660230M 3B7-66023-0 $2.76 1
(48) O-RING 3.5-27.7 3B7660230M 3B7-66023-0 $2.76 1
(49) STOPPER 353660240M 353-66024-0 $4.40 1
(50) BOLT 9101036612M 910103-6612 $1.16 1
(50) BOLT 9101036612M 910103-6612 $1.16 1
(51) SHIFT ROD JOINT 353662411M 353-66241-1 $8.20 1
(52) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 2
(53) NIPPLE 6-1/8 3C7600170M 3C7-60017-0 FOR SPEEDOMETER OPT $3.27 1
(53) NIPPLE 6-1/8 3C7600170M 3C7-60017-0 FOR SPEEDOMETER OPT $3.27 1
(54) SPEEDOMETER PIPE L 98AL40800M 98AL-4-0800 FOR TRANSOM L / OPT $8.81 1
(54) SPEEDOMETER PIPE L 98AL40800M 98AL-4-0800 FOR TRANSOM L / OPT $8.81 1
(54) SPEEDOMETER PIPE UL 98AL40920M 98AL-4-0920 FOR TRANSOM UL / OPT $8.81 1
(54) SPEEDOMETER PIPE UL 98AL40920M 98AL-4-0920 FOR TRANSOM UL / OPT $8.81 1
(55) NIPPLE 6-6 3C7600180M 3C7-60018-0 OPT $3.00 1
(55) NIPPLE 6-6 3C7600180M 3C7-60018-0 OPT $3.00 1
(56) LEAD WIRE BAND 100 353843980M 353-84398-0 OPT $0.84 2
(56) LEAD WIRE BAND 100 353843980M 353-84398-0 OPT $0.84 2
