11. OIL PUMP

Click Here for Microfiche Usage Tip

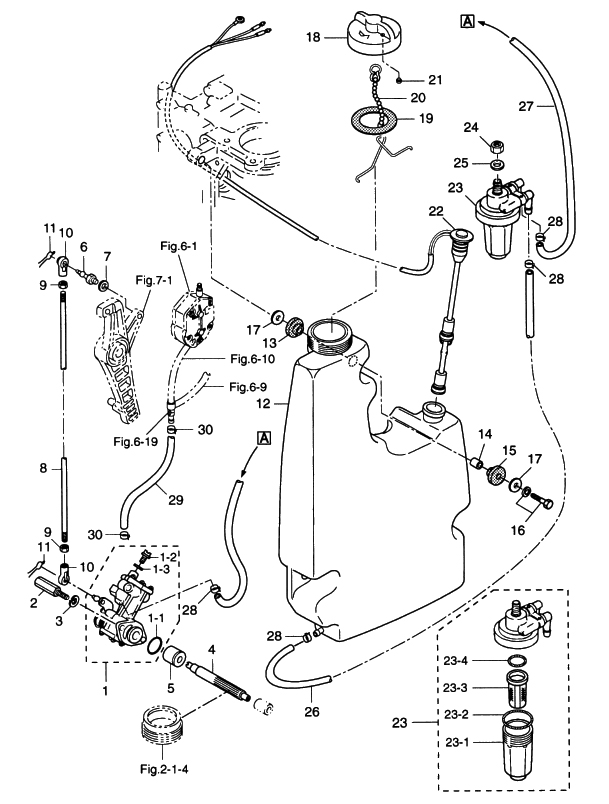

(1) OIL PUMP(1-1) O-RING, 1.6-19.2(1-2) BOLT, AIR VENT(1-3) WASHER(2) BOLT, OIL PUMP(3) SPRING WASHER(4) DRIVEN GEAR, OIL PUMP(5) BUSHING, 9-20-20.8(6) BALL JOINT "C"(7) SPRING WASHER(8) LINK ROD, OIL PUMP(9) NUT(9) NUT(10) CAP "C", BALL JOINT(10) CAP "C", BALL JOINT(11) SNAP RETAINER, D=5(11) SNAP RETAINER, D=5(12) OIL TANK(13) MOUNT RUBBER, 8.5-14-2.5(14) SPACER, 6.2-9-15.7(15) MOUNT RUBBER, 8.5-14-2.5(16) BOLT(17) WASHER, 6.5-21-1(17) WASHER, 6.5-21-1(18) CAP, OIL TANK(19) GASKET, 36-52-2(20) HOOK, TANK CAP(21) CHECK VALVE, TANK CAP(22) OIL LEVEL SENSOR(23) OIL FILTER(23) OIL FILTER(23-1) CAP(23-2) O-RING "A"(23-3) FILTER(23-4) O-RING "B"(24) NUT(25) WASHER(26) OIL PIPE(27) OIL PIPE(28) CLIP, o9.5(28) CLIP, o9.5(28) CLIP, o9.5(28) CLIP, o9.5(29) OIL PIPE(30) CLIP, o 8(30) CLIP, o 8



Parts List
2003 :: 115 HP :: 2 Stroke Nissan NS115A2 :: OIL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) OIL PUMP 3C7090000M 3C7-09000-0 $242.28 1
(1-1) O-RING 1.6-19.2 3B7090020M 3B7-09002-0 $3.97 1
(1-2) AIR VENT BOLT 3B7090040M 3B7-09004-0 $6.90 1
(1-3) WASHER 3B7090060M 3B7-09006-0 $0.99 1
(2) BOLT OIL PUMP 3B7090500M 3B7-09050-0 $0.00 2 Sold Out View More Details
(3) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(4) DRIVEN GEAR OIL PUMP 3B7090650M 3B7-09065-0 $132.17 1
(5) BUSHING 9-20-20.8 3B7090690M 3B7-09069-0 $0.00 1 Sold Out View More Details
(6) BALL JOINT C 3B7052440M 3B7-05244-0 $5.55 1
(7) SPRING WASHER 9413030600M 941303-0600 $0.84 1
(8) LINK ROD OIL PUMP 3C7090530M 3C7-09053-0 $0.00 1 Sold Out View More Details
(9) NUT 9301030500M 930103-0500 OR 930106-0500 $0.86 1
(10) BALL JOINT CONNECTOR 3B7052430M 3B7-05243-0 $2.56 1
(11) SNAP RETAINER D=5 9517030500M 951703-0500 $0.65 1
(12) OIL TANK 3C7710702M 3C7-71070-2 $75.07 1
(13) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 3
(14) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 3
(15) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 3
(16) BOLT 9101036630M 910103-6630 $1.30 3
(17) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 6
(18) OIL TANK CAP 3C8710150M 3C8-71015-0 $10.12 1
(19) GASKET 36-52-2 3C8710160M 3C8-71016-0 $2.56 1
(20) TANK CAP HOOK 3C8710170M 3C8-71017-0 $10.12 1
(21) TANK CAP CHECK VALVE 3C8710180M 3C8-71018-0 $8.52 1
(22) OIL LEVEL SENSOR 3C7710200M 3C7-71020-0 $47.07 1
(23) OIL FILTER 3C7710300M 3C7-71030-0 $51.01 1
(23-1) CUP 3B7022370M 3B7-02237-0 $7.34 1
(23-2) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(23-3) FILTER 3C7710330M 3C7-71033-0 $12.70 1
(23-4) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(24) NUT 9301130800M 930113-0800 OR 930106-0800 $1.99 1 Sold Out View More Details
(25) WASHER 9401130800M 940113-0800 $0.84 1
(26) OIL PIPE B 99AA61000M 99AA-6-0700 $12.80 1
(27) OIL PIPE 99AA60340M 99AA-6-0340 $12.80 1
(28) CLIP ø9.5 3B7090540M 3B7-09054-0 $1.30 4
(29) OIL PIPE 99AA-4-0490 NA $0.00 1 Sold Out View More Details
(30) CLIP ø8.5 3C7090560M 3C7-09056-0 $1.41 2
