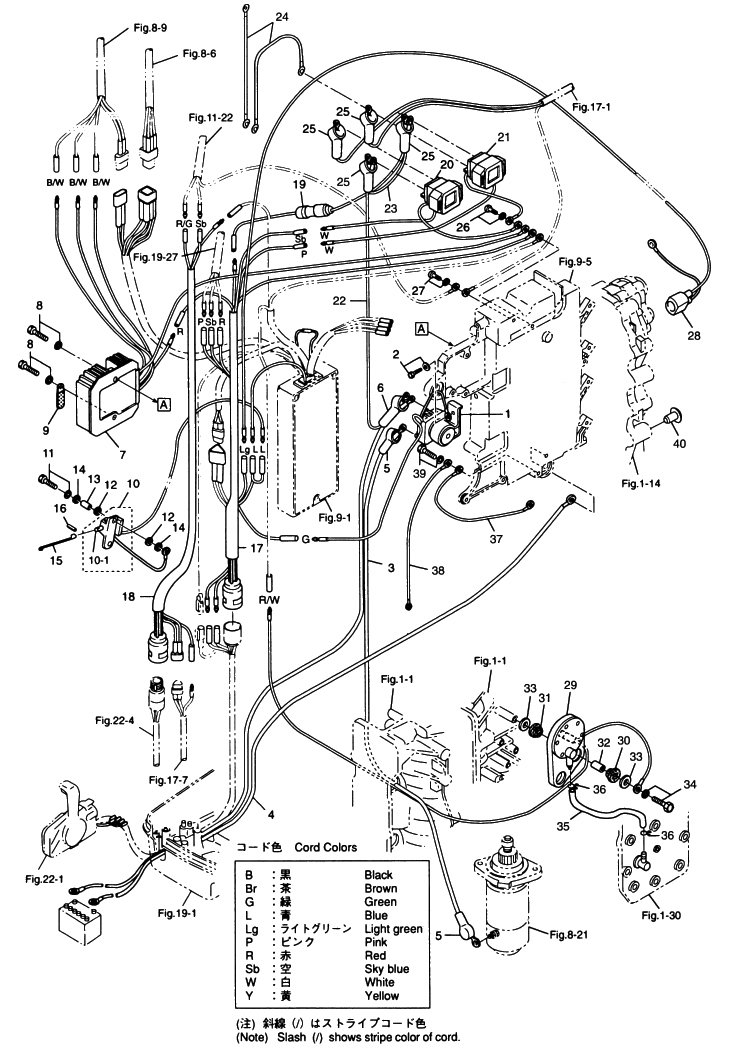

10. ELECTRIC PARTS (DIAGRAM)

Click Here for Microfiche Usage Tip
(1) STARTER SOLENOID(2) BOLT(3) STARTER CORD(4) BATTERY CORD(5) CAP, CORD(5) CAP, CORD(6) CAP, CORD(7) RECTIFIER(8) BOLT(8) BOLT(9) CLAMP, 6.5-67P(10) CHOKE SOLENOID(10-1) PLUNGER, CHOKE SOLENOID(11) BOLT(12) MOUNT RUBBER, CHOKE SOLENOID(12) MOUNT RUBBER, CHOKE SOLENOID(13) COLLAR, 6.2-9-9.3(14) WASHER, 6.5-21-1(14) WASHER, 6.5-21-1(15) HOOK, CHOKE SOLENOID(16) SPRING PIN, 3-12(17) CORD ASSY "A"(18) CORD ASSY "C"(19) FUSE CABLE(20) SOLENOID SWITCH "A", PTT(21) SOLENOID SWITCH "B", PTT(22) CORD "A"(23) CORD "B"(24) CORD "B"(25) CAP, CORD(25) CAP, CORD(25) CAP, CORD(25) CAP, CORD(26) BOLT(27) SCREW(28) OVER-HEAT SENSOR(29) PRESSURE SWITCH(30) MOUNT RUBBER, 8.5-14-2.5(31) MOUNT RUBBER, 8.5-14-2.5(32) SPACER, 6.2-9-15.7(33) WASHER, 6.5-21-1(33) WASHER, 6.5-21-1(34) BOLT(35) PIPE, PRESSURE SWITCH(36) CLIP, o12(36) CLIP, o12(37) GROUND CABLE(38) GROUND CABLE(39) BOLT(40) PLUG, 10



Parts List
2003 :: 115 HP :: 2 Stroke Nissan NS115A2 :: ELECTRIC PARTS (DIAGRAM)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STARTER SOLENOID 346760400M 346-76040-0 $77.11 1
(2) BOLT 9101036616M 910103-6616 $1.20 1
(3) STARTER CORD 3B7761410M 3B7-76141-0 L=400 $33.06 1
(4) BATTERY CABLE 3B7761200M 3B7-76120-0 L=3000 $140.39 1
(5) CAP CORD 3A3761450M 3A3-76145-0 $3.39 2
(6) CAP CORD 3B7761450M 3B7-76145-0 $3.39 1
(7) RECTIFIER 3C7760650M 3C7-76065-0 $220.25 1
(8) BOLT 9101135625M 910113-5625 $1.47 2
(9) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 1
(10) CHOKE SOLENOID 3C7760500M 3C7-76050-0 $115.07 1
(10-1) PLUNGER CHOKE SOLENOID 353760730M 353-76073-0 $5.87 1
(11) BOLT 9101036625M 910103-6625 $1.01 2
(12) RUBBER MOUNT 9-23-4 122350830M 122-35083-0 $2.07 4
(13) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 $4.06 2
(14) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(15) HOOK CHOKE SOLENOID 353760572M 353-76057-2 $4.38 1
(16) SPRING PIN 3-12 9514030312M 951403-0312 $0.83 1
(17) CORD ASSY A 3C7761101M 3C7-76110-1 $0.00 1 Sold Out View More Details
(18) CORD ASSY C 3C7761190M 3C7-76119-0 $0.00 1 Sold Out View More Details
(19) FUSE WIRE 3C7760621M 3C7-76062-1 L=450 $15.64 1
(20) SOLENOID SWITCH A PTT 3C8725800M 3C8-72580-0 UP / 140A2 #12174~ / 120A2 #21739~ $42.82 1
(21) SOLENOID SWITCH B PTT 3C8725810M 3C8-72581-0 DN / 140A2 #12174~ / 120A2 #21739~ $42.82 1
(22) CORD A SOLENOID SWITCH 3C7725820M 3C7-72582-0 L=220 $0.00 1 Sold Out View More Details
(23) CORD B SOLENOID SWITCH 3C7725830M 3C7-72583-0 L=150 $5.07 1
(24) CORD B SOLENOID SWITCH 3C8725831M 3C8-72583-1 L=130 $4.83 2
(25) CAP CORD 3A3761450M 3A3-76145-0 $3.39 4
(26) BOLT 9101036614M 910103-6614 $1.09 1
(27) SCREW 9215036612M 921503-6612 $0.00 1 Sold Out View More Details
(28) OVER-HEAT SENSOR 3C7761720M 3C7-76172-0 $72.68 1
(29) PRESSURE SWITCH 3C7761800M 3C7-76180-0 $119.67 1
(30) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 2
(31) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 2
(32) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 2
(33) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 2
(34) BOLT 9101036630M 910103-6630 $1.30 2
(35) PIPE PRESSURE SWITCH 98AB-7-0350 NA $0.00 1 Sold Out View More Details
(36) CLIP ø 12 3C7022150M 3C7-02215-0 $1.41 2
(37) GROUND CABLE 3B7761420M 3B7-76142-0 L=120 $5.29 1
(38) GROUND CABLE 3C7761420M 3C7-76142-0 L=170 $2.99 1
(39) BOLT 9101036612M 910103-6612 $1.16 1
(40) PLUG 10 3E0010470M 3E0-01047-0 $1.41 1 Sold Out View More Details
