6. FUEL PUMP

Click Here for Microfiche Usage Tip

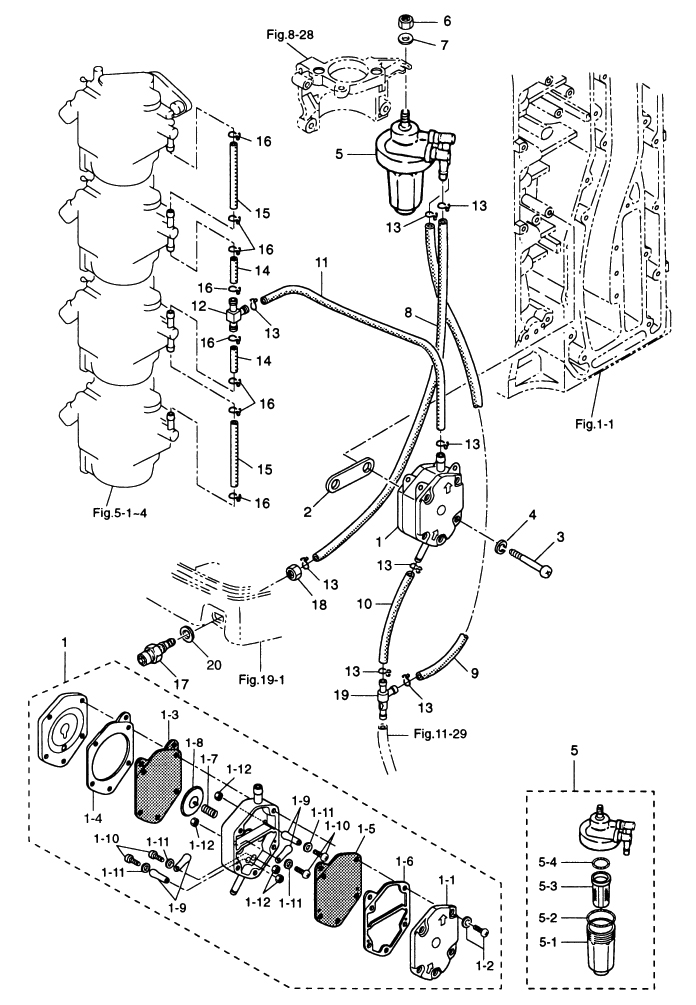

(1) FUEL PUMP(1) FUEL PUMP(1-1) PUMP COVER(1-2) SCREW(1-3) DIAPHRAGM "A"(1-4) GASKET "A", DIAPHRAGM.(1-5) DIAPHRAGM "B"(1-6) GASKET "B", DIAPHRAGM(1-7) SPRING(1-8) DIAPHRAGM COVER(1-9) CHECK VALVE(1-9) CHECK VALVE(1-10) SCREW(1-10) SCREW(1-11) WASHER(1-11) WASHER(1-11) WASHER(1-11) WASHER(1-12) NUT(1-12) NUT(1-12) NUT(2) GASKET, FUEL PUMP(3) SCREW(4) SPRING WASHER(5) FUEL FILTER(5) FUEL FILTER(5-1) CAP(5-2) O-RING "A"(5-3) FILTER(5-4) O-RING "B"(6) NUT(7) WASHER(8) FUEL PIPE(9) FUEL PIPE(10) FUEL PIPE(11) FUEL PIPE(12) PIPE JOINT, 7-5(13) CLIP, o12(13) CLIP, o12(13) CLIP, o12(13) CLIP, o12(13) CLIP, o12(13) CLIP, o12(13) CLIP, o12(13) CLIP, o12(14) FUEL PIPE(14) FUEL PIPE(15) FUEL PIPE(15) FUEL PIPE(16) CLIP, o10(16) CLIP, o10(16) CLIP, o10(16) CLIP, o10(16) CLIP, o10(16) CLIP, o10(17) FUEL CONNECTOR (ENGINE, MALE)(18) NUT, 12-P1.25(19) CHECK VALVE(20) GASKET, 12.1-17-0.5



Parts List
2003 :: 115 HP :: 2 Stroke Nissan NS115A2 :: FUEL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL PUMP 3C7040001M 3C7-04000-1 $110.12 1
(1-1) PUMP COVER 3C7040041M 3C7-04004-1 $17.62 1 Sold Out View More Details
(1-2) SCREW 921532-6533 NA $0.00 3 Sold Out View More Details
(1-3) DIAPHRAGM A 3C7040050M 3C7-04005-0 $21.88 1
(1-4) GASKET A DIAPHRAGM. 3C7040060M 3C7-04006-0 $3.87 1
(1-5) DIAPHRAGM B 3C7040290M 3C7-04029-0 $13.25 1
(1-6) GASKET B DIAPHRAGM 3C7040071M 3C7-04007-1 $7.71 1
(1-7) SPRING 3C7040090M 3C7-04009-0 $1.91 1
(1-8) DIAPHRAGM COVER 3C7040220M 3C7-04022-0 $1.91 1
(1-9) CHECK VALVE 3C7040440M 3C7-04044-0 $1.66 4
(1-10) SCREW 921532-0306 NA $0.00 4 Sold Out View More Details
(1-11) WASHER 9401030300M 940103-0300 $0.84 4
(1-12) NUT 9301030300M 930103-0300 $0.35 4
(2) GASKET FUEL PUMP 346049010M 346-04901-0 $2.71 1
(3) SCREW 9215030645M 921503-0645 $0.00 2 Sold Out View More Details
(4) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(5) FUEL FILTER 3C7022300M 3C7-02230-0 $39.13 1
(5-1) CUP 3B7022370M 3B7-02237-0 $7.34 1
(5-2) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(5-3) FILTER 3B7022340M 3B7-02234-0 $6.59 1
(5-4) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(6) NUT 9301130800M 930113-0800 OR 930106-0800 $1.99 1 Sold Out View More Details
(7) WASHER 9401130800M 940113-0800 $0.84 1
(8) FUEL PIPE 98AB70730M 98AB-7-0730 $13.44 1
(9) FUEL PIPE 98AB70320M 98AB-7-0320 $13.44 1
(10) FUEL PIPE 98AB-7-0045 NA $0.00 1 Sold Out View More Details
(11) FUEL PIPE 98AB-7-0310 NA $0.00 1 Sold Out View More Details
(12) PIPE JOINT 7-5 3C7020920M 3C7-02092-0 $3.27 1
(13) CLIP ø 12 3C7022150M 3C7-02215-0 $1.41 8
(14) FUEL PIPE 98AB-5-0045 NA $0.00 2 Sold Out View More Details
(15) FUEL PIPE 98AB-5-0045 NA $0.00 2 Sold Out View More Details
(16) CLIP ø10 338022150M 338-02215-0 $1.41 8
(17) FUEL CONNECTOR (ENGINE MALE) 3C7702600M 3C7-70260-0 $24.22 1
(18) NUT 12-P1.25 3C7702530M 3C7-70253-0 $3.27 1
(19) CHECK VALVE 3C7090751M 3C7-09075-1 $29.88 1
(20) PACKING 12.1-17-0.5 152016120M 152-01612-0 $0.97 1
