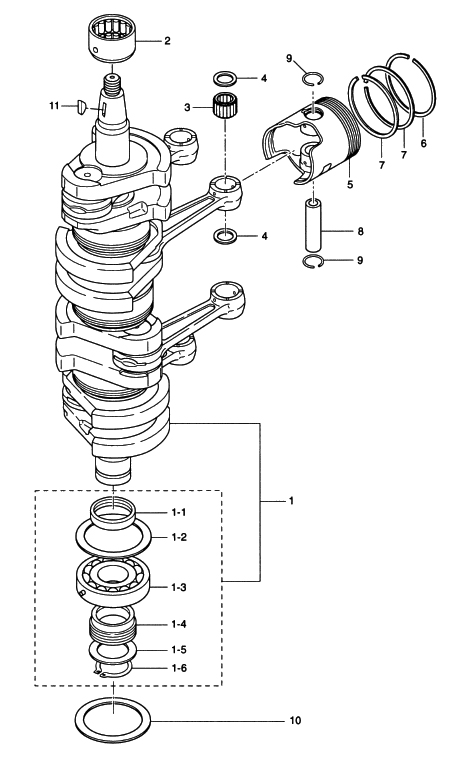

2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip
(1) CRANK SHAFT(1-1) SPACER, 40-52-1(1-2) WASHER, 66-85-2(1-3) BALL BEARING, 6208(1-4) DRIVE GEAR, OIL PUMP(1-5) SHIM, 36-44-0.3(1-5) SHIM, 36-44-0.15(1-5) SHIM, 36-44-0.1(1-6) C-RING, D=35(2) MAIN BEARING UPPER(3) NEEDLE BEARING, 20-25-28(4) WASHER, SMALL END BEARING(4) WASHER, SMALL END BEARING(5) PISTON (STD)(5) PISTON (0.5MM O/S)(6) PISTON RING 1ST (STD)(6) PISTON RING 1ST (0.5MM O/S)(7) PISTON RING 2ND (STD)(7) PISTON RING 2ND (STD)(7) PISTON RING 2ND (0.5MM O/S)(7) PISTON RING 2ND (0.5MM O/S)(8) PISTON PIN(9) CLIP, PISTON PIN(9) CLIP, PISTON PIN(10) WASHER, 66-85-2(11) KEY, MAGNETO



Parts List
2003 :: 115 HP :: 2 Stroke Nissan NS115A2 :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANK SHAFT 3C7000502M 3C7-00050-2 $2,600.07 1 Sold Out View More Details
(1-1) SPACER 40-52-7 3B7001160M 3B7-00116-0 $16.82 1
(1-2) WASHER 66-85-2 3B7001150M 3B7-00115-0 $0.00 1 Sold Out View More Details
(1-3) BALL BEARING 6208 3C7001180M 3C7-00118-0 $55.07 1
(1-4) DRIVE GEAR OIL PUMP 3B7090600M 3B7-09060-0 $0.00 1 Sold Out View More Details
(1-5) SHIM 36-44-0.3 353640360M 353-64036-0 $1.56 0
(1-5) SHIM 36-44-0.15 353640370M 353-64037-0 $1.56 0
(1-5) SHIM 36-44-0.1 353640380M 353-64038-0 $1.79 0
(1-6) C-RING D=35 9451073500M 945107-3500 $0.99 1
(2) MAIN BEARING (UPPER) 3C7001130M 3C7-00113-0 $91.41 1
(3) NEEDLE BEARING 20-25-28 3C7000420M 3C7-00042-0 $30.77 4
(4) SMALL END BEARING WASHER 353000460M 353-00046-0 $8.52 8
(5) PISTON (STD) 3C7000011M 3C7-00001-1 $132.17 4
(5) PISTON (0.5MM O/S) 3C7000041M 3C7-00004-1 OPTION $165.21 4
(6) PISTON RING 1ST ( STD ) 3C7000110M 3C7-00011-0 $33.06 4
(6) PISTON RING 1ST ( 0.5MM O/S ) 3C7000140M 3C7-00014-0 OPTION $37.45 4
(7) PISTON RING 2ND (STD) 3C7000120M 3C7-00012-0 $24.22 8
(7) PISTON RING 2ND (0.5MM O/S) 3C7000150M 3C7-00015-0 OPTION $26.40 8
(7) PISTON RING 2ND (STD) 3C7000120M 3C7-00012-0 $24.22 8
(7) PISTON RING 2ND (0.5MM O/S) 3C7000150M 3C7-00015-0 OPTION $26.40 8
(8) PISTON PIN 360000210M 360-00021-0 $13.51 4
(9) PISTON PIN CLIP 353000241M 353-00024-1 $0.70 8
(10) WASHER 66-85-2 3B7001150M 3B7-00115-0 $0.00 1 Sold Out View More Details
(11) KEY MAGNETO 334001310M 334-00131-0 $3.39 1
