26. ACCESSORIES

Click Here for Microfiche Usage Tip

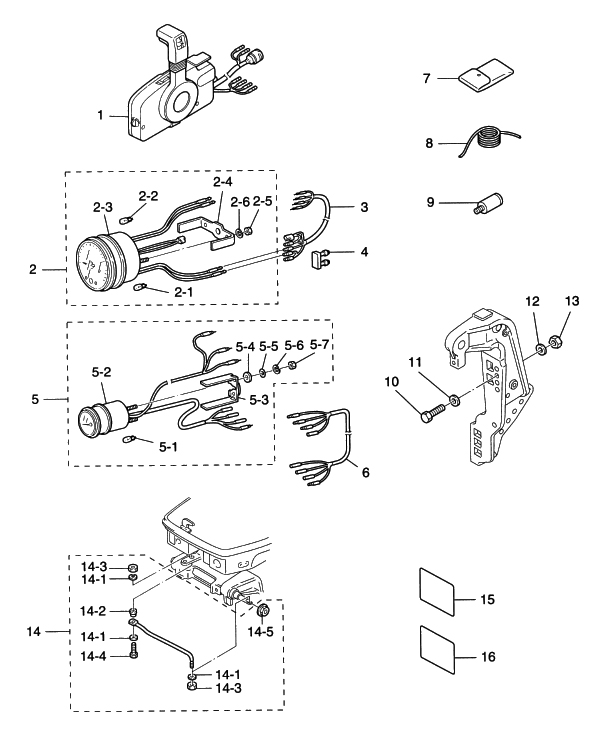

(1) REMOTE CONTROL BOX (RC5A)(1) REMOTE CONTROL BOX (RC5B)(1) REMOTE CONTROL BOX (RC5A)(1) REMOTE CONTROL BOX (RC8B)(2) TACHOMETER (WITH OIL LAMP)(2-1) BULB, OIL 12V-1.7W(2-2) BULB, METER 12V-1.7W(2-3) DAMPER, METER(2-4) PLATE, FITTING(2-5) NUT(2-6) SPRING WASHER(3) LEAD CABLE, METER(4) PLUG, CABLE TERMINAL(5) TRIM METER(5-1) BULB, METER 12V-1.7W(5-2) DAMPER, METER(5-3) PLATE, FITTING(5-4) INSULATED WASHER(5-5) WASHER(5-6) SPRING WASHER(5-7) NUT(6) EXTENSION CORD, TRIM SENDER(7) TOOL(8) ROPE(9) FLUSHING ATTACHMENT(10) BOLT, 12-P1.25(11) WASHER,13-34-3(12) WASHER(13) NUT, 12-P1.25(14) DRAG LINK "H"(14-1) WASHER, 9.6-18-2(14-1) WASHER, 9.6-18-2(14-1) WASHER, 9.6-18-2(14-2) SPACER, DRAG LINK "H"(14-3) NYLON NUT, 3/8(14-3) NYLON NUT, 3/8(14-4) BOLT, 3/8-50(14-5) SEAL RING, DRAG LINK(15) LABEL, OIL CAUTION (DOMESTIC)(15) LABEL, OIL CAUTION (EXPORT)(16) LABEL, BUZZER CAUTION (DOMESTIC)(16) LABEL, BUZZER CAUTION (EXPORT)



Parts List
2003 :: 70 HP :: 2 Stroke Tohatsu M70C :: ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CONTROL BOX (RC5A) 3B7843301M 3B7-84330-1 TOHATSU / FOR P - PTT TYPE $477.81 1 Sold Out View More Details
(1) REMOTE CONTROL BOX (RC5B) 3B7843401M 3B7-84340-1 TOHATSU / FOR P TYPE $488.35 1
(1) CONTROL BOX (RC5A) 3B1Q843303 3B1Q843303 NISSAN / FOR P - PTT TYPE $0.00 1 Sold Out View More Details
(1) REMOTE CONTROL BOX (RC8B) 3B1N843403 3B1N843403 NISSAN / FOR P TYPE $0.00 1 Sold Out View More Details
(2) TACHOMETER (WITH OIL LAMP) 3B7726401M 3B7-72640-1 UNIQUE / P - AUTO-MIXING TYPE $0.00 1 Sold Out View More Details
(2-1) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 P - AUTO-MIXING TYPE $3.50 1
(2-2) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 P - AUTO-MIXING TYPE $0.00 1 Sold Out View More Details
(2-3) METER DAMPER 3B7726560M 3B7-72656-0 P - AUTO-MIXING TYPE $3.50 1
(2-4) FITTING PLATE 3B7726610M 3B7-72661-0 P - AUTO-MIXING TYPE $27.10 1
(2-5) NUT 9302030500M 930203-0500 P - AUTO-MIXING TYPE $0.64 2
(2-6) SPRING WASHER 9413030500M 941303-0500 P - AUTO-MIXING TYPE $0.97 2
(3) METER LEAD CABLE 3A3725370M 3A3-72537-0 L=2000 / FOR P TYPE $32.87 1
(4) CABLE TERMINAL PLUG 353760370M 353-76037-0 FOR P TYPE $2.71 1
(5) TRIM METER 3E0725710M 3E0-72571-0 FOR P - PTT TYPE $0.00 1 Sold Out View More Details
(5-1) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR P - PTT TYPE $0.00 1 Sold Out View More Details
(5-2) METER DAMPER 3B7726550M 3B7-72655-0 FOR P - PTT TYPE $2.86 1
(5-3) FITTING PLATE 3B7726650M 3B7-72665-0 FOR P - PTT TYPE $0.00 1 Sold Out View More Details
(5-4) INSULATED WASHER 3B7726660M 3B7-72666-0 FOR P - PTT TYPE $2.48 2 Sold Out View More Details
(5-5) WASHER 9401030400M 940103-0400 FOR P - PTT TYPE $0.63 2
(5-6) SPRING WASHER 9413030400M 941303-0400 FOR P - PTT TYPE $0.97 2
(5-7) NUT 9302030400M 930203-0400 FOR P - PTT TYPE $0.00 2 Sold Out View More Details
(6) TRIM SENSOR EXTENSION CORD 3F3725731M 3F3-72573-1 L=5300 $145.25 1
(7) TOOL 3C8721001M 3C8-72100-1 $23.14 1
(8) ROPE 3B7722010M 3B7-72201-0 ø6-1600 $5.43 1
(9) FLUSHING ATTACHMENT 3B7600070M 3B7-60007-0 $8.61 1
(10) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 L=105 $5.78 4
(11) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.37 4
(12) WASHER 9401131200M 940113-1200 $0.70 4
(13) NUT P1.25 3C7621391M 3C7-62139-1 $1.73 4
(14) DRAG LINK H ASSY 3E0849050M 3E0-84905-0 $164.98 1
(14-1) WASHER 9.6-18-2 353849160M 353-84916-0 $1.56 3
(14-2) SPACER 3E0849140M 3E0-84914-0 $7.83 1
(14-3) NYLON NUT 3/8 353849180M 353-84918-0 $7.05 2
(14-4) BOLT 3/8 - 50 3E0849170M 3E0-84917-0 $12.08 1
(14-5) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.74 1
(15) LABEL OIL CAUTION (D) 3B7720420M 3B7-72042-0 FOR JAPAN MARKET ONLY $0.00 1 Sold Out View More Details
(15) LABEL OIL CAUTION (X) 3B7720430M 3B7-72043-0 FOR EXPORT MARKETS / AUTO-MIXING TYPE $1.89 1 Sold Out View More Details
(16) LABEL WARNING BUZZER CAUTION (D) 3B7720500 3B7-72050-0 FOR JAPAN MARKET ONLY $0.00 1 Sold Out View More Details
(16) LABEL WARNING BUZZER CAUTION (X) 3B7720510 3B7-72051-0 FOR EXPORT MARKETS / P TYPE $0.00 1 Sold Out View More Details
