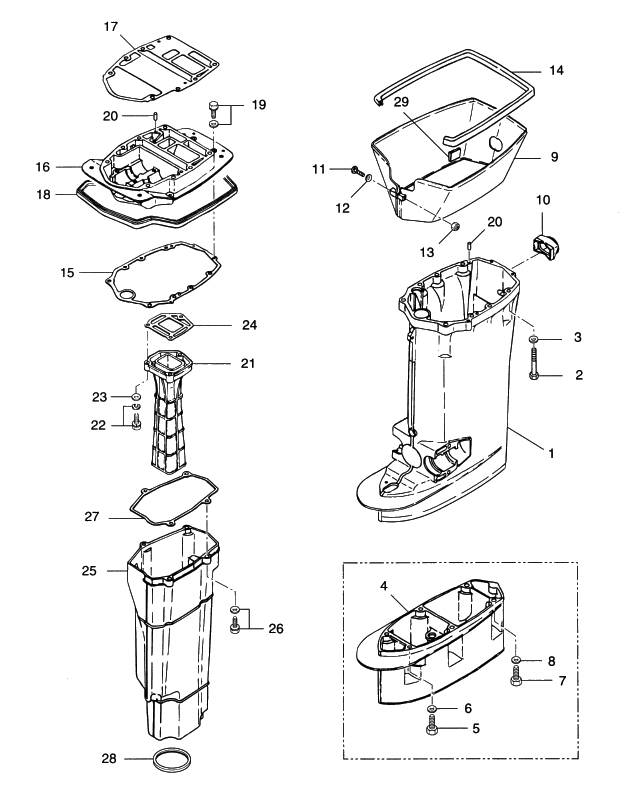

15. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip
(1) DRIVE SHAFT HOUSING "L"(2) BOLT, 8-100(3) WASHER(4) EXTENSION HOUSING "UL"(5) BOLT(6) WASHER(7) BOLT, 10-40(8) WASHER(9) APRON(10) GROMMET, APRON(11) SCREW(12) WASHER(13) NYLON NUT, 5-P0.8(14) SEAL RUBBER, APRON(15) GASKET, DRIVE SHAFT HOUSING(16) ENGINE BASE(17) GASKET, ENGINE BASE(18) SEAL RUBBER, ENGINE BASE(19) BOLT(20) KNOCK, 6-12(20) KNOCK, 6-12(21) EXHAUST PIPE(22) BOLT(23) WASHER(24) GASKET, EXHAUST PIPE(25) EXHAUST HOUSING(26) BOLT(27) GASKET, EXHAUST HOUSING(28) GROMMET, EXHAUST HOUSING(29) SET RUBBER, APRON



Parts List
2003 :: 70 HP :: 2 Stroke Tohatsu M70C :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING L 3F3S611920 3F3S61192-0 $0.00 1 Sold Out View More Details
(2) BOLT 8-100 3A3610172M 3A3-61017-2 $5.07 8
(3) WASHER 9402130800M 940213-0800 $0.60 8
(4) EXTENSION HOUSING UL 3B7S611100 3B7S61110-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(5) BOLT 8-35 9161890835M 916189-0835 FOR TRANSOM UL $5.35 4
(6) WASHER 9402130800M 940213-0800 FOR TRANSOM UL $0.60 4
(7) BOLT 10-40 3B7600012M 3B7-60001-2 FOR TRANSOM UL $8.33 2
(8) WASHER 9401131000M 940113-1000 FOR TRANSOM UL $1.50 2
(9) APRON 3F3S612100 3F3S61210-0 $0.00 1 Sold Out View More Details
(10) GROMMET APRON 3F3612120M 3F3-61212-0 $7.08 1
(11) SCREW 9215030545 921503-0545 OR 921513-5545 $0.00 1 Sold Out View More Details
(12) WASHER 9401030500M 940103-0500 OR 921513-5545 $0.53 1
(13) NYLON NUT 5-P0.8 9304030500M 930403-0500 $1.47 1
(14) SEAL RUBBER APRON 3F3612130M 3F3-61213-0 $8.05 1
(15) GASKET DRIVE SHAFT HOUSING 3F3610120M 3F3-61012-0 $10.27 1
(16) ENGINE BASE 3F3S013010 3F3S01301-0 $0.00 1 Sold Out View More Details
(17) GASKET ENGINE BASE 3F3013031M 3F3-01303-1 $26.83 1
(18) SEAL RUBBER ENGINE BASE 3F3671160M 3F3-67116-0 $15.21 1
(19) BOLT 9101135630M 910113-5630 $1.15 3 Sold Out View More Details
(20) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 4
(21) EXHAUST PIPE 3F3023110M 3F3-02311-0 $0.00 1 Sold Out View More Details
(22) BOLT 9101036835M 910103-6835 $2.01 3
(23) WASHER 9401130800M 940113-0800 $0.84 3
(24) GASKET EXHAUST PIPE 3F3023120M 3F3-02312-0 $4.92 1
(25) EXHAUST HOUSING 3F3611800M 3F3-61180-0 $0.00 1 Sold Out View More Details
(26) BOLT 9101135835M 910113-5835 $3.28 4
(27) GASKET EXHAUST HOUSING 3F3611810M 3F3-61181-0 $12.47 1
(28) GROMMET EXHAUST HOUSING 3F3611820M 3F3-61182-0 $10.12 1
(29) APRON PAD 3C7612160M 3C7-61216-0 $1.41 2
