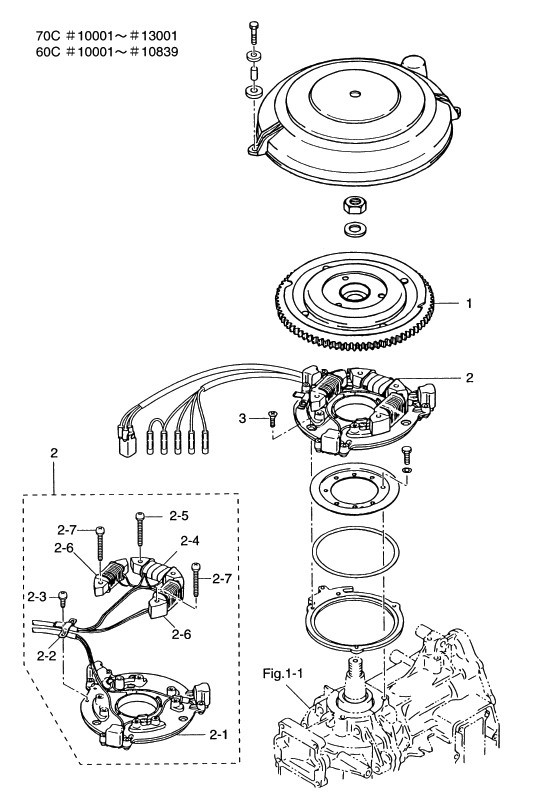

10. MAGNETO (OLD)

Click Here for Microfiche Usage Tip
(1) FLYWHEEL CUP (FP6496)(2) COIL PLATE ASSY(2) COIL PLATE ASSY(2-1) PLATE ASSY(2-2) HOLDER, MAGNETO CORD(2-3) SCREW(2-4) EXCITER COIL(2-5) SCREW(2-6) ALTERNATOR SET(2-6) ALTERNATOR SET(2-7) SCREW(2-7) SCREW(3) SCREW



Parts List
2003 :: 70 HP :: 2 Stroke Tohatsu M70C :: MAGNETO (OLD)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP (FP6496) 3F3060912M 3F3-06091-2 70C #10001~13001 / 60C #10001~10839 $0.00 1 Sold Out View More Details
(2) COIL PLATE ASSY 3F3060022M 3F3-06002-2 70C #10001~13001 / 60C #10001~10839 $0.00 1 Sold Out View More Details
(2-1) PLATE ASSY 3F3060721M 3F3-06072-1 70C #10001~13001 / 60C #10001~10839 $0.00 1 Sold Out View More Details
(2-3) SCREW 3F3060361 3F3-06036-1 70C #10001~13001 / 60C #10001~10839 $0.00 2 Sold Out View More Details
(2-4) EXCITER COIL 3F3060201M 3F3-06020-1 70C #10001~13001 / 60C #10001~10839 $0.00 1 Sold Out View More Details
(2-5) SCREW 3F3060370M 3F3-06037-0 70C #10001~13001 / 60C #10001~10839 $0.92 2 Sold Out View More Details
(2-6) ALTERNATOR SET 3F3060261M 3F3-06026-1 70C #10001~13001 / 60C #10001~10839 $0.00 1 Sold Out View More Details
(2-7) SCREW 3F3060391M 3F3-06039-1 70C #10001~13001 / 60C #10001~10839 $1.41 4 Sold Out View More Details
(3) SCREW 9216030512M 921603-0512 70C #10001~13001 / 60C #10001~10839 $0.61 3
