7. THROTTLE

Click Here for Microfiche Usage Tip

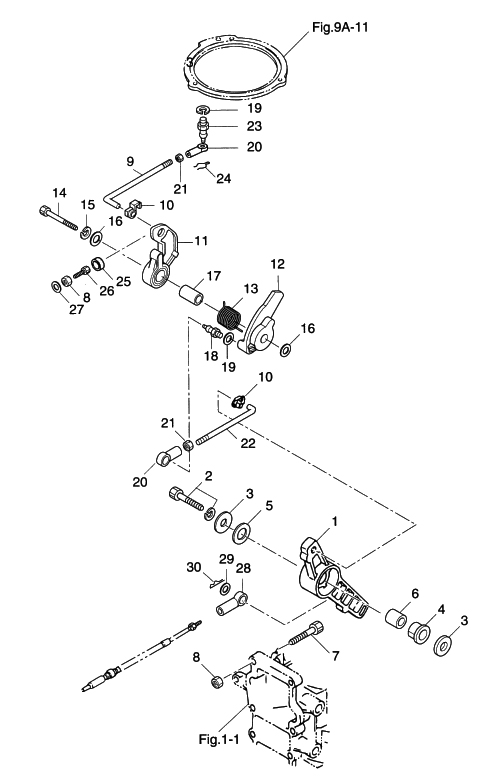

(1) ADVANCER AR(2) BOLT(3) WASHER, 8.5-24-1.5(3) WASHER, 8.5-24-1.5(4) BUSHING, 12-14-15.5(5) WASHER, 12.5-24-1(6) COLLAR, 8.4-12-17(7) BOLT(8) NUT(8) NUT(9) LINK ROD "B"(10) ROD SNAP, 5-3(10) ROD SNAP, 5-3(11) ADVANCER LEVER(12) THROTTLE CAM(13) SPRING, THROTTLE CAM(13) SPRING, THROTTLE CAM(14) BOLT(15) SPRING WASHER(16) WASHER(16) WASHER(17) COLLAR, THROTTLE CAM(18) BALL JOINT "B"(19) SPRING WASHER(19) SPRING WASHER(20) CAP "C", BALL JOINT(20) CAP "C", BALL JOINT(21) NUT(21) NUT(22) L-LINK, 5-118(23) BALL JOINT "C"(24) SNAP RETAINER, D=5(25) DAMPER, STOPPER(26) BOLT(27) WASHER(28) CABLE JOINT(29) WASHER, 8.5-18-1.6(30) R-PIN, D=8



Parts List
2003 :: 70 HP :: 2 Stroke Tohatsu M70C :: THROTTLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ADVANCER AR 3F3B637110 3F3B63711-0 $27.21 1
(2) BOLT 9101036835M 910103-6835 $2.01 1
(3) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.85 2
(4) BUSHING 12-14-15.5 3B7637130M 3B7-63713-0 $2.07 1
(5) WASHER 12.5-24-1 3B7637310M 3B7-63731-0 $2.31 1
(6) COLLAR 8.4-12-17 3B7637320M 3B7-63732-0 $2.13 1
(7) BOLT 9101030635M 910103-0635 $1.02 1
(8) NUT 9301130600M 930113-0600 OR 930103-0600 $0.84 2
(9) LINK ROD B 3F3637151M 3F3-63715-1 $5.80 1
(10) ROD SNAP 5-3 3C8637330M 3C8-63733-0 $1.45 2
(11) ADVANCER LEVER 3B7637120M 3B7-63712-0 $23.01 1
(12) THROTTLE CAM 3F3637180M 3F3-63718-0 $5.94 1
(13) SPRING THROTTLE CAM 3N4637270M 3N4-63727-0 70C # 13002~ / 60C # 10840~ $4.06 1 Sold Out View More Details
(13) SPRING THROTTLE CAM 3B7637270M 3B7-63727-0 70C ~# 13001 / 60C ~# 10839 $7.51 0
(14) BOLT 9101030845M 910103-0845 $2.76 1 Sold Out View More Details
(15) SPRING WASHER 9413030800M 941303-0800 $0.79 1
(16) WASHER 9401030800M 940113-0800 OR 940113-0800 $0.84 2
(17) COLLAR THROTTLE CAM 3B7637210M 3B7-63721-0 $2.56 1
(18) BALL JOINT B 346052280M 346-05228-0 $4.63 1
(19) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(20) BALL JOINT CONNECTOR 3B7052430M 3B7-05243-0 $2.56 2
(21) NUT 9301060500M 930106-0500 OR 930103-0500 $0.86 2
(22) L-LINK 5-118 3C8637150M 3C8-63715-0 $4.83 1
(23) BALL JOINT C 3B7052440M 3B7-05244-0 $5.55 1
(24) SNAP RETAINER D=5 9517030500M 951703-0500 $0.65 1
(25) DAMPER STOPPER 3B7637340M 3B7-63734-0 $1.41 1
(26) BOLT 9101130630M 910113-0630 OR 910103-0630 $1.21 1
(27) WASHER 9401130600M 940113-0600 $0.83 1
(28) CABLE JOINT 3B7837150M 3B7-83715-0 $4.83 1 Sold Out View More Details
(29) WASHER 8.5-18-1.6 353837190M 353-83719-0 $2.39 1
(30) SNAP PIN D=8 9516030800M 951603-0800 $0.70 1
