6. FUEL LINE

Click Here for Microfiche Usage Tip

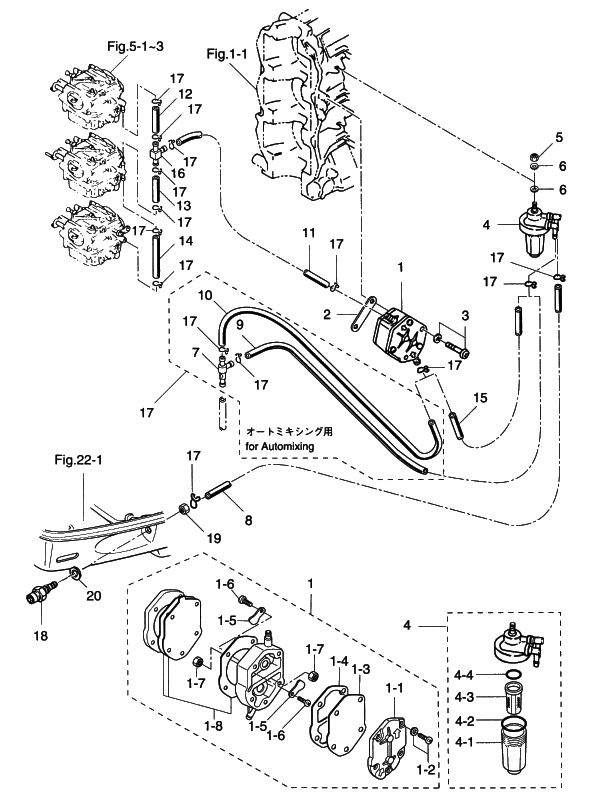

(1) FUEL PUMP(1) FUEL PUMP(1-1) PUMP COVER(1-2) SCREW(1-3) DIAPHRAGM(1-4) GASKET "B", DIAPHRAGM(1-5) CHECK VALVE(1-5) CHECK VALVE(1-6) SCREW(1-6) SCREW(1-7) NUT(1-7) NUT(1-8) DIAPHRAGM SET(2) GASKET, FUEL PUMP(3) SCREW(4) FUEL FILTER(4) FUEL FILTER(4-1) CAP(4-2) O-RING "A"(4-3) FILTER(4-4) O-RING "B"(5) NUT(6) WASHER(7) CHECK VALVE(8) FUEL PIPE(9) FUEL PIPE(10) FUEL PIPE(11) FUEL PIPE(12) FUEL PIPE(13) FUEL PIPE(14) FUEL PIPE(15) FUEL PIPE(16) PIPE JOINT(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(17) CLIP, o10(18) FUEL CONNECTOR (ENGINE, MALE)(19) NUT, 10-P1.25(20) GASKET, 10.2-16-0.5



Parts List
2003 :: 70 HP :: 2 Stroke Tohatsu M70C :: FUEL LINE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL PUMP 356040001M 356-04000-1 $88.09 1
(1-1) PUMP COVER 334040040M 334-04004-0 $16.82 1
(1-2) SCREW 9225126528M 922512-6528 $0.69 3
(1-3) PUMP DIAPHRAGM 334040050M 334-04005-0 $29.88 1
(1-4) DIAPHRAGM GASKET B 334040070M 334-04007-0 $8.52 1
(1-5) CHECK VALVE 356040440M 356-04044-0 $4.19 2
(1-6) SCREW 9217220306M 921722-0306 $0.88 2
(1-7) NUT 9302220300M 930222-0300 $0.86 2
(1-8) DIAPHRAGM GASKET SET 356040300M 356-04030-0 $25.62 1
(2) GASKET FUEL PUMP 346049010M 346-04901-0 $2.71 1
(3) SCREW 9215036640M 921503-6640 $1.75 2
(4) FUEL FILTER 3B7022300M 3B7-02230-0 $27.66 1
(4-1) CUP 3B7022370M 3B7-02237-0 $7.34 1
(4-2) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(4-3) FILTER 3B7022340M 3B7-02234-0 $6.59 1
(4-4) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(5) NUT 9301060800M 930106-0800 OR 930113-0800 $1.99 1 Sold Out View More Details
(6) WASHER 9401130800M 940113-0800 OR 940103-0800 $0.84 2
(7) CHECK VALVE COMPLETE 3C8090750M 3C8-09075-0 FOR AUTO-MIXING $29.88 1
(8) FUEL PIPE A 98AB50280M 98AB-5-0280 $11.41 1
(9) RUBBER HOSE 98AB51000M 98AB51000M FOR AUTO-MIXING $11.41 1
(10) RUBBER HOSE 98AB51000M 98AB51000M FOR AUTO-MIXING $11.41 1
(11) RUBBER HOSE 98AB51000M 98AB51000M $11.41 1
(12) FUEL PIPE 98AB50035 98AB-5-0035 $0.00 1 Sold Out View More Details
(13) RUBBER HOSE 98AB51000M 98AB51000M $11.41 1
(14) FUEL PIPE 98AB50095 98AB-5-0095 $0.00 1 Sold Out View More Details
(15) RUBBER HOSE 98AB51000M 98AB51000M FOR PREMIXING $11.41 1
(16) HOSE JOINT T TYPE 394700130M 394-70013-0 $2.19 1
(17) CLIP ø10 338022150M 338-02215-0 FOR AUTO-MIXING $1.41 14
(17) CLIP ø10 338022150M 338-02215-0 FOR PREMIXING $1.41 12
(18) FUEL CONNECTOR (ENGINE MALE) 3B2702601M 3B2-70260-1 $16.97 1
(19) NUT 10 P1.25 9311031000M 931103-1000 $2.07 1
(20) GASKET 10.2-16-0.5 336701120M 336-70112-0 $1.55 1
