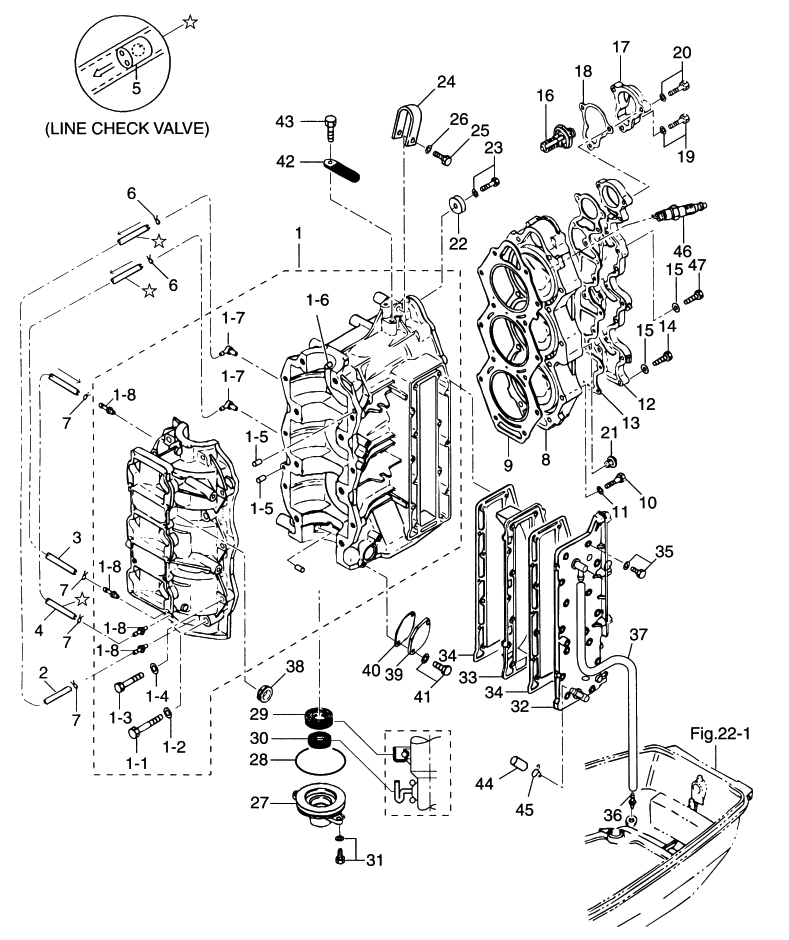

1. CYLINDER - CRANK CASE

Click Here for Microfiche Usage Tip
(1) CYLINDER, CRANK CASE(1-1) BOLT, 10-60(1-2) WASHER, 10.5-20-3.2(1-3) BOLT(1-4) WASHER, 8.5-19.5-3.2(1-5) KNOCK, 6-12(1-5) KNOCK, 6-12(1-6) KNOCK, MAIN BEARING(1-7) L-NIPPLE (NEW)(1-7) L-NIPPLE (NEW)(1-7) CHECK VALVE NIPPLE (OLD)(1-7) CHECK VALVE NIPPLE (OLD)(1-8) NIPPLE, 5.5-5(1-8) NIPPLE, 5.5-5(1-8) NIPPLE, 5.5-5(1-8) NIPPLE, 5.5-5(2) LUBRICATION PIPE(3) LUBRICATION PIPE(4) LUBRICATION PIPE(5) LINE CHECK VALVE(6) CLIP o8(6) CLIP o8(7) CLIP o7(7) CLIP o7(7) CLIP o7(7) CLIP o7(8) CYLINDER HEAD(9) GASKET, CYLINDER HEAD(10) BOLT(11) WASHER, 8.5-19.5-3.2(12) COVER, CYLINDER HEAD(13) GASKET, CYLINDER HEAD COVER(14) BOLT(15) WASHER(15) WASHER(16) THERMOSTAT (PRV)(17) CAP, THERMOSTAT(18) GASKET, THERMOSTAT(19) BOLT(20) BOLT(21) PLUG(22) ANODE(23) BOLT(24) HANGER(25) BOLT(26) WASHER(27) LOWER HEAD, CRANK CASE(28) O-RING, 2-66.5(29) OIL SEAL, 30-45-8(30) OIL SEAL,16.8-28-8(31) BOLT(32) EXHAUST COVER, OUTER(33) EXHAUST COVER, INNER(34) GASKET, EXHAUST COVER(34) GASKET, EXHAUST COVER(35) BOLT(36) WATER NIPPLE(37) PIPE, WATER NIPPLE(38) GROMMET, 25-5(39) BLIND PLATE(40) GASKET, BLIND PLATE(41) BOLT(42) CLAMP, 6.5-47.5P(43) BOLT(44) SEAL CAP, 5(45) CLIP, o10(46) SPARK PLUG(46) SPARK PLUG ( WITH RESISTANCE)(47) BOLT



Parts List
2003 :: 70 HP :: 2 Stroke Tohatsu M70C :: CYLINDER - CRANK CASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER CRANK CASE 3F3B011001 3F3B01100-1 70C # 12546~ / 60C # 10675~ $0.00 1 Sold Out View More Details
(1-1) BOLT 10-60 3F3011140M 3F3-01114-0 $0.00 8 Sold Out View More Details
(1-2) WASHER 10.5-20-3.2 3B7011160M 3B7-01116-0 $0.75 8
(1-3) BOLT 9161290845M 916129-0845 OR 916119-0845 $0.00 6 Sold Out View More Details
(1-4) WASHER 8.5-19.5-3.2 345010150M 345-01015-0 $1.41 6
(1-5) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(1-6) MAIN BEARING DOWEL PIN 345001170M 345-00117-0 $3.04 1
(1-7) L-NIPPLE (NEW) 393011370M 393-01137-0 70C # 12546~ / 60C # 10675~ $4.31 2
(1-7) CHECK VALVE NIPPLE (OLD) 3B2011600M 3B2-01160-0 70C ~# 12545 / 60C ~# 10674 $0.00 0 Sold Out View More Details
(1-7) L-NIPPLE (NEW) 393011370M 393-01137-0 70C # 12546~ / 60C # 10675~ $4.31 2
(1-7) CHECK VALVE NIPPLE (OLD) 3B2011600M 3B2-01160-0 70C ~# 12545 / 60C ~# 10674 $0.00 0 Sold Out View More Details
(1-8) NIPPLE 5.5-5 393011310M 393-01131-0 70C # 12546~ / 60C # 10675~ $3.00 4
(2) LUBRICATION PIPE 98AL40350 98AL-4-0350 70C # 12546~ / 60C # 10675~ $0.00 1 Sold Out View More Details
(3) LUBRICATION PIPE 98AL40290 98AL-4-0290 70C # 12546~ / 60C # 10675~ $0.00 1 Sold Out View More Details
(4) LUBRICATION PIPE 98AL40410 98AL-4-0410 70C # 12546~ / 60C # 10675~ $0.00 1 Sold Out View More Details
(5) LINE CHECK VALVE 393011600M 393-01160-0 70C # 12546~ / 60C # 10675~ $4.31 3
(6) CLIP ø 8 3T5011330M 3T5-01133-0 70C # 12546~ / 60C # 10675~ $1.44 2
(7) CLIP ø 7 338011330M 338-01133-0 $1.04 4
(8) CYLINDER HEAD 3F3B010011 3F3B01001-1 70C/60C~ $0.00 1 Sold Out View More Details
(9) GASKET CYLINDER HEAD 3F3010050M 3F3-01005-0 $54.37 1
(10) BOLT 9161190860M 916119-0860 $2.62 14
(11) WASHER 8.5-19.5-3.2 345010150M 345-01015-0 $1.41 14
(12) COVER CYLINDER HEAD 3F3B010211 3F3B01021-1 $66.62 1
(13) GASKET CYLINDER HEAD COVER 3F3010240M 3F3-01024-0 $12.61 1
(14) BOLT 9101210625M 910121-0625 $0.88 13
(15) WASHER 9401210600M 940121-0600 $0.86 14
(16) THERMOSTAT 3C7010300M 3C7-01030-0 $41.18 1
(17) CAP THERMOSTAT 3B7B010310 3B7B01031-0 $35.17 1
(18) GASKET THERMOSTAT CAP 353010320M 353-01032-0 $4.29 1 Sold Out View More Details
(19) BOLT 9101135625M 910113-5625 $1.47 1
(20) BOLT 9101135640M 910113-5640 $1.68 2
(21) PLUG 3B7010460M 3B7-01046-0 $1.41 1
(22) ANODE 338602182M 338-60218-2 $9.20 1
(23) BOLT 9101035620M 910103-5620 $1.30 1
(24) HANGER 3C8B015130 3C8B01513-0 $5.69 1 Sold Out View More Details
(25) BOLT 9101140835M 910114-0835 $1.50 1
(26) WASHER 9401210800M 940121-0800 $0.37 1
(27) LOWER HEAD CRANK CASE 3F3B012910 3F3B01291-0 $0.00 1 Sold Out View More Details
(28) O-RING 2-66.5 151000530M 151-00053-0 $2.68 1
(29) OIL SEAL 30-45-8 126001210M 126-00121-0 $7.34 1
(30) OIL SEAL 16.8-28-8 3F3012150M 3F3-01215-0 $10.93 1
(31) BOLT 9101135620M 910113-5620 OR 910103-5620 $1.30 2
(32) EXHAUST COVER OUTER 3F3B023001 3F3B02300-1 $83.89 1
(33) EXHAUST COVER INNER 3F3B023020 3F3B02302-0 $55.26 1
(34) GASKET EXHAUST COVER 3F3023051M 3F3-02305-1 $8.14 2
(35) BOLT 9101145625M 910114-5625 $1.04 14
(36) WATER NIPPLE 353011380M 353-01138-0 $2.21 1
(37) PIPE WATER NIPPLE 98AB50480 98AB-5-0480 $0.00 1 Sold Out View More Details
(38) GROMMET 25-5 3B7760930M 3B7-76093-0 $2.19 1
(39) BLIND PLATE 3C8090811M 3C8-09081-1 FOR PREMIXING $3.25 1
(40) GASKET BLIND PLATE 3C8090820M 3C8-09082-0 FOR PREMIXING $3.85 1
(41) BOLT 9101036616M 910103-6616 FOR PREMIXING $1.20 2
(42) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(43) BOLT 9101130612M 910113-0612 $0.84 1
(44) SEAL CAP 5 3F3011390M 3F3-01139-0 $2.65 1
(45) CLIP ø10 338022150M 338-02215-0 $1.41 1
(46) SPARK PLUG 970101009M 970101009M NGK B8HS-10 $4.64 3
(46) SPARK PLUG 970101009M 970101009M NGK BR8HS-10 $4.64 3
(47) BOLT 9161240628M 916124-0628 $1.20 1
