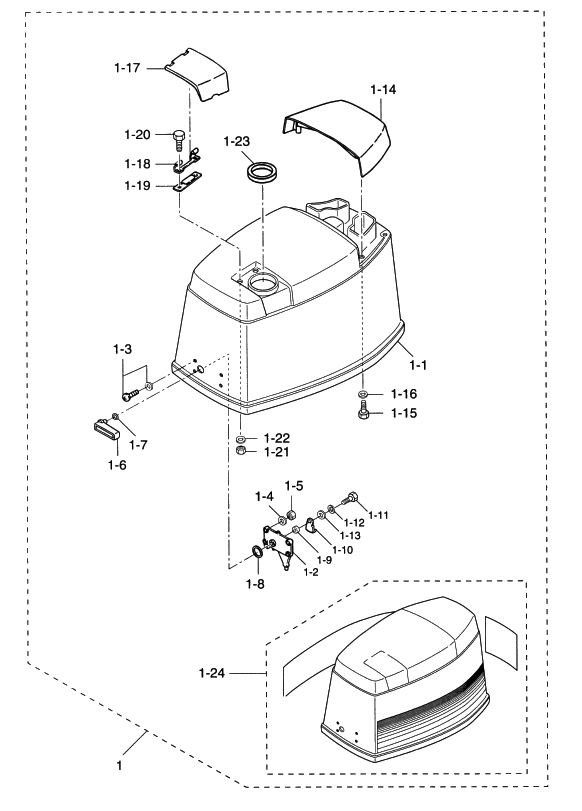

24. UPPER MOTOR COVER

Click Here for Microfiche Usage Tip
(1) UPPER MOTOR COVER(1) UPPER MOTOR COVER(1-1) SEAL RUBBER, UPPER MOTOR COVER(1-2) LOCATING BRACKET(1-3) SCREW(1-4) SPRING WASHER(1-5) NUT(1-6) HOOK LEVER(1-7) O-RING, 1.5-1.9(1-8) SEAL RING, HOOK LEVER(1-9) BUSHING, 12-14-12(1-10) COVER HOOK (FRONT)(1-11) BOLT(1-12) SPRING WASHER(1-13) WASHER, 6-16-1.5(1-14) TILT HANDLE(1-15) BOLT(1-16) WASHER, 6-16-1.5(1-17) FILLER LID(1-18) HINGE, FILLER LID(1-19) SPRING, FILLER LID(1-20) BOLT(1-21) NUT(1-22) SPRING WASHER(1-23) SEAL RUBBER, FILLER LID(1-24) DECAL SET(1-24) DECAL SET



Parts List
2003 :: 70 HP :: 2 Stroke Nissan NS70C :: UPPER MOTOR COVER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) UPPER MOTOR COVER 3N4S675101 3N4S67510-1 TOHATSU $0.00 1 Sold Out View More Details
(1) UPPER MOTOR COVER 3N6N675105 3N6N67510-5 NISSAN $0.00 1 Sold Out View More Details
(1-1) TOP COWL SEAL 3F3675010M 3F3-67501-0 L=1700 $35.48 1
(1-2) LOCATING BRACKET 353675171M 353-67517-1 $0.00 1 Sold Out View More Details
(1-3) SCREW 9217035520M 921703-5520 $0.38 4
(1-4) SPRING WASHER 9413030500M 941303-0500 $0.90 4
(1-5) NUT 9301030500M 930103-0500 $0.86 4
(1-6) HOOK LEVER 353S671410 353S67141-0 $23.01 1
(1-7) O-RING 1.5-9.5 338624350M 338-62435-0 $1.41 1
(1-8) SEAL RING 353671471M 353-67147-1 $2.31 1
(1-9) BUSHING 12-14-12 353671050M 353-67105-0 $1.41 1
(1-10) COVER HOOK 353671421M 353-67142-1 $11.02 1
(1-11) BOLT 9101030616M 910113-0616 OR 910103-6616 $0.98 1
(1-12) SPRING WASHER 9413030600M 941303-0600 OR 910103-6616 $0.84 1
(1-13) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(1-14) TILT HANDLE 3F3S675211 3F3S67521-1 $0.00 1 Sold Out View More Details
(1-15) BOLT 9101130630M 910113-0630 $1.21 4
(1-16) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(1-17) FILLER LID 3E3S672100 3E3S67210-0 $29.88 1
(1-18) FILLER LID HINGE 3B7672110M 3B7-67211-0 $3.05 1
(1-19) FILLER LID SPRING 3C8672120M 3C8-67212-0 $9.53 1
(1-20) BOLT 9101030614M 910103-0614 $0.76 2
(1-21) NUT 9301130600M 930113-0600 $0.84 2
(1-22) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(1-23) SEAL RUBBER FILLER LID 3F3672131M 3F3-67213-1 $4.38 1
(1-24) DECAL SET 3N4S878020 3N4S87802-0 TOHATSU $0.00 1 Sold Out View More Details
(1-24) DECAL SET 3N6N878015 3N6N87801-5 NISSAN $0.00 1 Sold Out View More Details
