22. POWER TRIM & TILT

Click Here for Microfiche Usage Tip

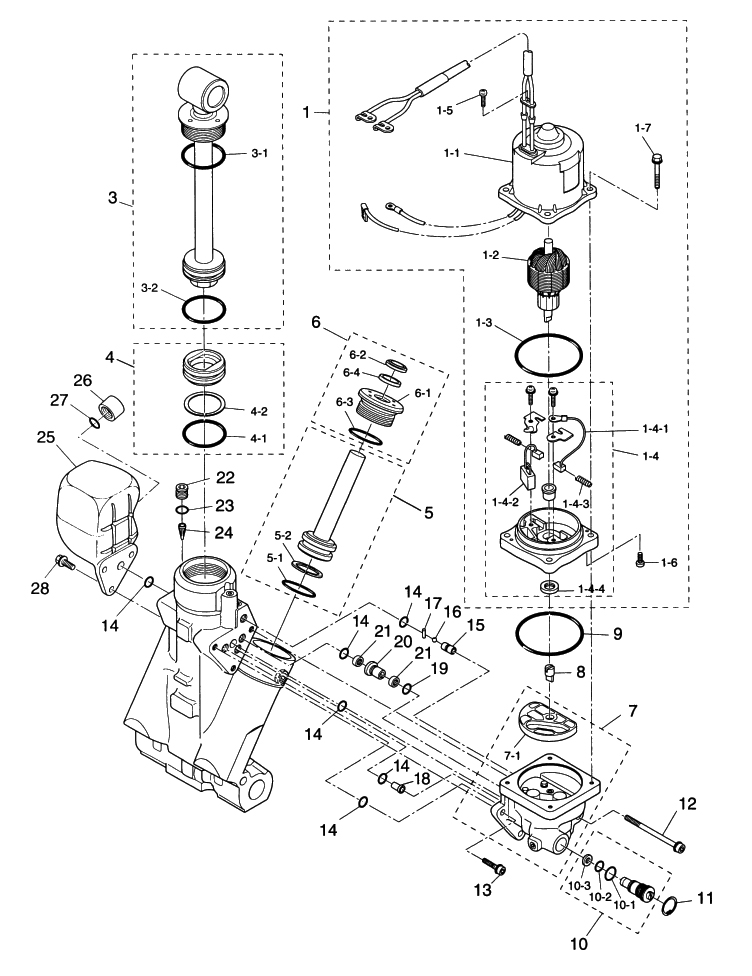

(1) MOTOR(1-1) YOKE(1-2) ARMATURE(1-3) O-RING, MOTOR(1-4) BRACKET(1-4-1) BRUSH(1-4-2) BREAKER(1-4-3) SPRING, BRUSH(1-4-4) OIL SEAL(1-5) SCREW(1-6) SCREW(1-7) BOLT(3) PISTON ROD ASSY, TILT(3-1) O-RING(3-2) O-RING(4) FREE PISTON(4-1) O-RING(4-2) BACK-UP RING(5) PISTON, TRIM(5-1) O-RING(5-2) BACK-UP RING(6) ROD GUIDE SUB ASSY, TRIM(6-1) ROD GUIDE(6-2) WATER SEAL(6-3) O-RING(6-4) PACKING(7) PUMP(7-1) FILTER B(8) COUPLING PUMP(9) O-RING(10) MANUAL VALVE(10-1) O-RING(10-2) PACKING(10-3) BACK-UP RING(11) C-RING(12) BOLT(13) BOLT(14) O-RING(14) O-RING(14) O-RING(14) O-RING(14) O-RING(14) O-RING(15) ORIFICE(16) BALL(17) PIN(18) ORIFICE(19) O-RING(20) VALVE SEAT(21) FILTER(21) FILTER(22) PLUG(23) O-RING(24) FILTER(25) RESERVOIR TANK(26) CAP(27) O-RING(28) BOLT



Parts List
2003 :: 70 HP :: 2 Stroke Nissan NS70C :: POWER TRIM & TILT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MOTOR ASSY 3E0771800M 3E0-77180-0 $589.03 1
(1-1) YOKE ASSY 3E0771950M 3E0-77195-0 $253.75 1
(1-2) ARMATURE ASSY 3E0771900M 3E0-77190-0 NOT FOR SALE $0.00 1 Sold Out View More Details
(1-3) MOTOR O-RING 353771821M 353-77182-1 $8.05 1
(1-4) MOTOR BRACKET 3E0771920M 3E0-77192-0 $188.61 1
(1-4-1) BRUSH 3E0771830M 3E0-77183-0 NOT FOR SALE $76.76 1
(1-4-2) BREAKER 3E0771910M 3E0-77191-0 NOT FOR SALE $0.00 1 Sold Out View More Details
(1-4-3) BRUSH SPRING 3E0771840M 3E0-77184-0 NOT FOR SALE $0.00 2 Sold Out View More Details
(1-4-4) OIL SEAL 3E0771930M 3E0-77193-0 NOT FOR SALE $0.00 1 Sold Out View More Details
(1-5) SCREW 3E0771890M 3E0-77189-0 NOT FOR SALE $0.00 1 Sold Out View More Details
(1-6) SCREW 3E0771940M 3E0-77194-0 NOT FOR SALE $0.00 2 Sold Out View More Details
(1-7) BOLT 3E0771990M 3E0-77199-0 $7.31 4
(3) PISTON ROD ASSY (TILT) 3E0773651M 3E0-77365-1 $407.48 1
(3-1) O-RING 3E0773830M 3E0-77383-0 $1.68 1
(3-2) O-RING 3B7773750M 3B7-77375-0 $3.00 1
(4) FREE PISTON 3B7773771M 3B7-77377-1 $0.00 1 Sold Out View More Details
(4-1) O-RING 3B7773750M 3B7-77375-0 $3.00 1
(4-2) BACK-UP RING 3B7773760M 3B7-77376-0 $7.34 1
(5) TRIM PISTON 3E0773900M 3E0-77390-0 $83.98 2
(5-1) O-RING 3B7773920M 3B7-77392-0 $2.76 2
(5-2) BACK-UP RING 3B7773930M 3B7-77393-0 $6.90 2
(6) ROD GUIDE SUB ASSY (TRIM) 3E0773950M 3E0-77395-0 $62.39 2 Sold Out View More Details
(6-1) ROD GUIDE 3E0773960M 3E0-77396-0 NOT FOR SALE $62.39 2 Sold Out View More Details
(6-2) WATER SEAL 3E0773970M 3E0-77397-0 NOT FOR SALE $0.00 2 Sold Out View More Details
(6-3) O-RING 3E0773980M 3E0-77398-0 $4.72 2
(6-4) PACKING 3E0773990M 3E0-77399-0 NOT FOR SALE $0.00 2 Sold Out View More Details
(7) PUMP 3E0774300M 3E0-77430-0 $256.55 1
(7-1) FILTER B 3E0774340M 3E0-77434-0 $22.77 1
(8) COUPLING PUMP 3E0771630M 3E0-77163-0 $9.60 1
(9) O-RING 1.8-69.6 3B7771670M 3B7-77167-0 $6.35 1 Sold Out View More Details
(10) MANUAL VALVE 3E0771761M 3E0-77176-1 $71.25 1
(10-1) O-RING 3B7774110M 3B7-77411-0 $4.78 1
(10-2) PACKING 3E0774070M 3E0-77407-0 $7.53 1
(10-3) BACK-UP RING 3E0774080M 3E0-77408-0 $3.18 1
(11) C-RING 9450031800M 945003-1800 $1.66 1
(12) BOLT 3E0774310M 3E0-77431-0 $6.84 1
(13) BOLT 3E0774320M 3E0-77432-0 $0.00 2 Sold Out View More Details
(14) O-RING 3E0771670M 3E0-77167-0 $3.20 6
(15) ORIFICE 3E0775570M 3E0-77557-0 $22.80 1
(16) BALL 3E0775580M 3E0-77558-0 $0.92 1
(17) PIN 3E0775590M 3E0-77559-0 $3.37 1
(18) ORIFICE 3E0774790M 3E0-77479-0 $6.74 1
(19) O-RING 3B7771690M 3B7-77169-0 $5.02 1
(20) VALVE SEAT 3E0774530M 3E0-77453-0 $25.93 1
(21) FILTER 3E0774560M 3E0-77456-0 $6.84 2
(22) PLUG 3E0774720M 3E0-77472-0 $10.04 1
(23) O-RING 3B7771790M 3B7-77179-0 $3.85 1
(24) FILTER 3E0774750M 3E0-77475-0 $9.03 1
(25) RESERVOIR TANK 3E0771650M 3E0-77165-0 $81.48 1 Sold Out View More Details
(26) CAP 3E0771680M 3E0-77168-0 $6.01 1
(27) O-RING 3E0771690M 3E0-77169-0 $2.10 1
(28) BOLT 3E0771590M 3E0-77159-0 NOT FOR SALE $0.00 3 Sold Out View More Details
