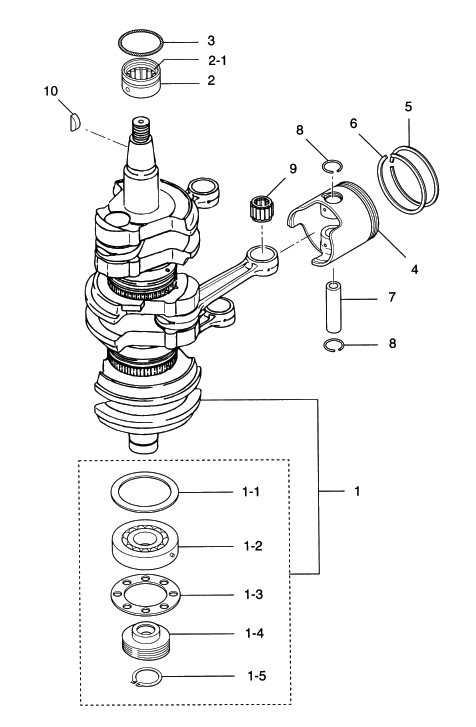

2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip
(1) CRANK SHAFT(1-1) WASHER, 59-78-2(1-2) BALL BEARING, 6306(1-3) WASHER, 49-78-2(1-4) DRIVE GEAR, OIL PUMP(1-5) C-RING, D=30(2) MAIN BEARING UPPER(2-1) OIL SEAL, 36.5-46-8(3) O-RING, 2-44.7(4) PISTON (STD)(4) PISTON (0.5MM O/S)(5) PISTON RING 1ST (STD)(5) PISTON RING 1ST (0.5MM O/S)(6) PISTON RING 2ND (STD)(6) PISTON RING 2ND (0.5MM O/S)(7) PISTON PIN(8) CLIP, PISTON PIN(8) CLIP, PISTON PIN(9) NEEDLE BEARING, 20-25-24(10) KEY, MAGNETO



Parts List
2003 :: 70 HP :: 2 Stroke Nissan NS70C :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANK SHAFT 3F3000300M 3F3-00030-0 $1,666.76 1 Sold Out View More Details
(1-1) WASHER 59-78-2 353001150M 353-00115-0 $0.00 1 Sold Out View More Details
(1-2) BALL BEARING 6306 353001180M 353-00118-0 $46.05 1
(1-3) WASHER 49-78-2 3F3001150M 3F3-00115-0 $5.55 1
(1-4) DRIVE GEAR OIL PUMP 3F3090600M 3F3-09060-0 $0.00 1 Sold Out View More Details
(1-5) C-RING D=30 9451073000M 945107-3000 $1.02 1
(2) MAIN BEARING UPPER 353001130M 353-00113-0 $85.17 1
(2-1) OIL SEAL (UPPER CRANKSHAFT) 353001210M 353-00121-0 $11.02 1
(3) O-RING 2.4-44.7 353001080M 353-00108-0 $3.00 1
(4) PISTON (STD) 3F3000010M 3F3-00001-0 $96.90 3
(4) PISTON (0.5MM O/S) 3F3000040M 3F3-00004-0 OPTION $161.60 3
(5) PISTON RING 1ST (STD) 3F3000112M 3F3-00011-2 $26.40 3
(5) PISTON RING 1ST (0.5MM O/S) 3F3000142M 3F3-00014-2 OPTION $27.54 3
(6) PISTON RING 2ND (STD) 3F3000121M 3F3-00012-1 $18.70 3
(6) PISTON RING 2ND (0.5MM O/S) 3F3000151M 3F3-00015-1 OPTION $19.84 3
(7) PISTON PIN 3F3000210M 3F3-00021-0 $10.98 3
(8) PISTON PIN CLIP 353000241M 353-00024-1 $0.70 6
(9) NEEDLE BEARING 20-25-24 3F3000421M 3F3-00042-1 $26.40 3
(10) KEY MAGNETO 334001310M 334-00131-0 $3.39 1
