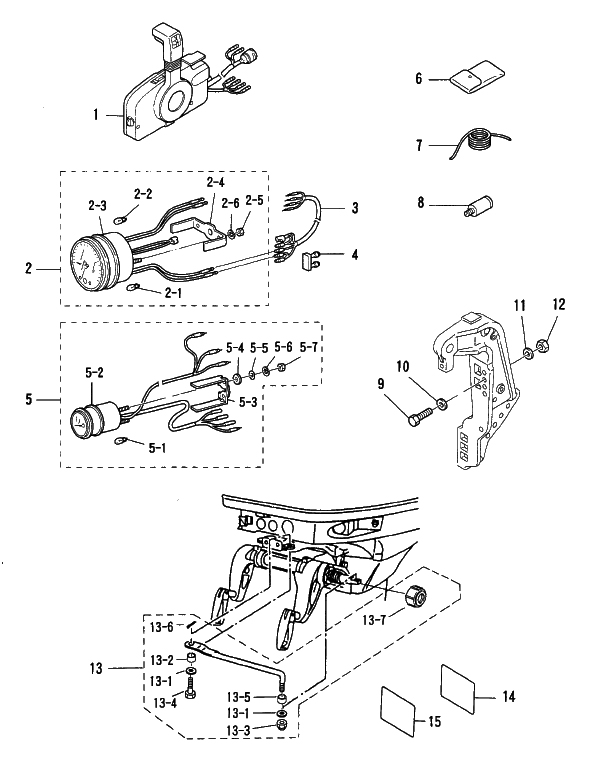

29. ACCESSORIES

Click Here for Microfiche Usage Tip
(1) REMOTE CONTROL BOX (RC5A)(1) REMOTE CONTROL BOX (RC5B)(1) REMOTE CONTROL BOX (RC5A)(1) REMOTE CONTROL BOX (RC8B)(2) TACHOMETER (WITH OIL LAMP)(2-1) BULB, OIL 12V-1.7W(2-2) BULB, METER 12V-1.7W(2-3) DAMPER, METER(2-4) PLATE, FITTING(2-5) NUT(2-6) SPRING WASHER(3) LEAD CABLE, METER(4) PLUG, CABLE TERMINAL(5) TRIM METER(5-1) BULB, METER 12V-1.7W(5-2) DAMPER, METER(5-3) PLATE, FITTING(5-4) INSULATED WASHER(5-5) WASHER(5-6) SPRING WASHER(5-7) NUT(6) TOOL(7) ROPE(8) FLUSHING ATTACHMENT(9) BOLT, 12-P1.25(10) WASHER, 13-34-3(11) WASHER(12) NUT, 12-P1.25(13) DRAG LINK "E"(13-1) WASHER, 9.6-18-2(13-1) WASHER, 9.6-18-2(13-2) COLLAR, 9.6-13-6.5(13-3) NYLON NUT, 3/8(13-4) BOLT, 3/8-19(13-5) COLLAR, 9.6-19-6(13-6) SPLIT PIN, 2-15(13-7) SEAL RING, DRAG LINK(14) LABEL, OIL CAUTION (DOMESTIC MARKET)(14) LABEL, OIL CAUTION (EXPORT MARKET)(15) LABEL, BUZZER CAUTION (DOMESTIC MARKET)(15) LABEL, BUZZER CAUTION (EXPORT MARKET)



Parts List
2003 :: 50 HP :: 2 Stroke Nissan NS50D2 :: ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CONTROL BOX (RC5A) 3B7843301M 3B7-84330-1 TOHATSU / FOR P-PTT TYPE $446.56 1
(1) REMOTE CONTROL BOX (RC5B) 3B7843401M 3B7-84340-1 TOHATSU / FOR P TYPE $456.39 1
(1) CONTROL BOX (RC5A) 3B1Q843303 3B1Q843303 NISSAN / FOR P-PTT TYPE $0.00 1 Sold Out View More Details
(1) REMOTE CONTROL BOX (RC8B) 3B1N843403 3B1N843403 NISSAN / FOR P TYPE $0.00 1 Sold Out View More Details
(2) TACHOMETER (WITH OIL LAMP) 3B7726401M 3B7-72640-1 UNIQUE / P AUTO-MIXING TYPE $0.00 1 Sold Out View More Details
(2-1) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 P AUTO-MIXING TYPE $3.27 1
(2-2) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 P AUTO-MIXING TYPE $0.00 1 Sold Out View More Details
(2-3) METER DAMPER 3B7726560M 3B7-72656-0 P AUTO-MIXING TYPE $3.27 1
(2-4) FITTING PLATE 3B7726610M 3B7-72661-0 P AUTO-MIXING TYPE $25.33 1
(2-5) NUT 9302030500M 930203-0500 P AUTO-MIXING TYPE $0.60 2
(2-6) SPRING WASHER 9413030500M 941303-0500 P AUTO-MIXING TYPE $0.90 2
(3) METER LEAD CABLE 3A3725370M 3A3-72537-0 L=2000 / FOR P TYPE $30.73 1
(4) CABLE TERMINAL PLUG 353760370M 353-76037-0 FOR P TYPE $2.53 1
(5) TRIM METER 3E0725710M 3E0-72571-0 FOR P - PTT TYPE $0.00 1 Sold Out View More Details
(5-1) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR P - PTT TYPE $0.00 1 Sold Out View More Details
(5-2) METER DAMPER 3B7726550M 3B7-72655-0 FOR P - PTT TYPE $2.68 1
(5-3) FITTING PLATE 3B7726650M 3B7-72665-0 FOR P - PTT TYPE $0.00 1 Sold Out View More Details
(5-4) INSULATED WASHER 3B7726660M 3B7-72666-0 FOR P - PTT TYPE $2.31 2 Sold Out View More Details
(5-5) WASHER 9401030400M 940103-0400 FOR P - PTT TYPE $0.58 2
(5-6) SPRING WASHER 9413030400M 941303-0400 FOR P - PTT TYPE $0.90 2
(5-7) NUT 9302030400M 930203-0400 FOR P - PTT TYPE $0.00 2 Sold Out View More Details
(6) TOOL 3C8721001M 3C8-72100-1 $21.62 1
(7) ROPE 3B7722010M 3B7-72201-0 ø6-1600 $5.07 1
(8) FLUSHING ATTACHMENT 3B7600070M 3B7-60007-0 $8.05 1
(9) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 L=105 $5.40 4
(10) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 4
(11) WASHER 9401131200M 940113-1200 $0.65 4
(12) NUT P1.25 3C7621391M 3C7-62139-1 $1.62 4
(13) DRAG LINK E 3C8849102M 3C8-84910-2 FOR P TYPE / 50D # 53333~ / 40D # 36004~ $132.17 1
(13-1) WASHER 9.6-18-2 353849160M 353-84916-0 FOR P TYPE / 50D # 53333~ / 40D # 36004~ $1.45 2
(13-2) COLLAR 9.6-13-6.5 3C8849141M 3C8-84914-1 FOR P TYPE / 50D # 53333~ / 40D # 36004~ $3.27 1
(13-3) NYLON NUT 3/8 353849180M 353-84918-0 FOR P TYPE / 50D # 53333~ / 40D # 36004~ $6.59 21
(13-4) BOLT 3/8-19 3C8849170M 3C8-84917-0 FOR P TYPE / 50D # 53333~ / 40D # 36004~ $8.05 1
(13-5) COLLAR 9.6-19-6 3C8849160M 3C8-84916-0 FOR P TYPE / 50D # 53333~ / 40D # 36004~ $5.07 1
(13-6) SPLIT PIN 2-15 9515030215M 951503-0214 FOR P TYPE / 50D # 53333~ / 40D # 36004~ $0.84 1
(13-7) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 FOR P TYPE / 50D # 53333~ / 40D # 36004~ $2.56 1 Sold Out View More Details
(14) LABEL OIL CAUTION (D) 3B7720420M 3B7-72042-0 FOR JAPAN MARKET $0.00 1 Sold Out View More Details
(14) LABEL OIL CAUTION (X) 3B7720430M 3B7-72043-0 FOR EXPORT AUTO-MIXING TYPE $1.76 1 Sold Out View More Details
(15) LABEL BUZZER CAUTION (DOMESTIC MARKET) 3C8720500M 3C8-72050-0 FOR JAPAN MARKET $0.00 1 Sold Out View More Details
(15) LABEL BUZZER CAUTION (EXPORT MARKET) 3C8720510 3C8-72051-0 FOR EXPORT P TYPE $0.00 1 Sold Out View More Details
