22. MANUAL TILT (M TYPE)

Click Here for Microfiche Usage Tip

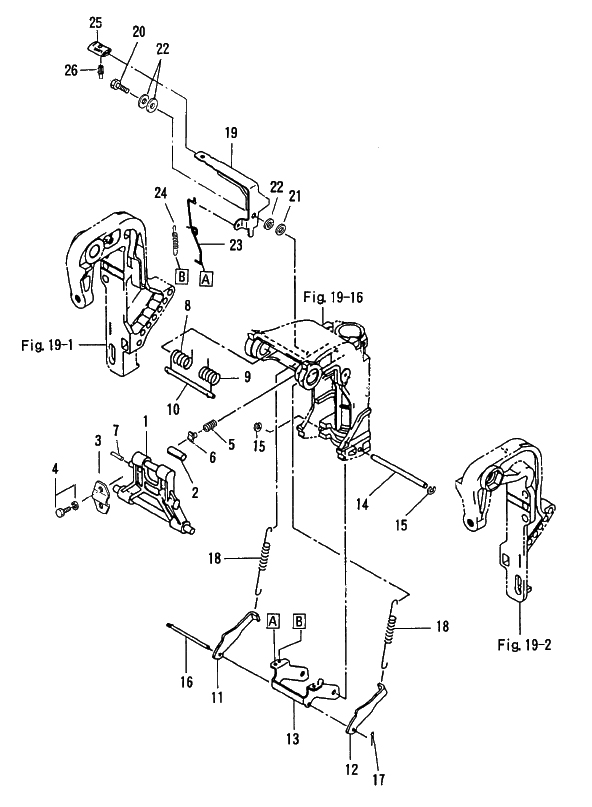

(1) TILT STOPPER(2) BUSHING, 10.2-12-29.5(3) SET PLATE, TILT STOPPER(4) BOLT(5) FRICTION SPRING, TILT STOPPER(6) SET PIECE(7) SPRING PIN, 4-25(8) SPRING "R", TILT ASSISTANT(9) SPRING "L", TILT ASSISTANT(10) SHAFT, TILT ASSISTANT(11) REVERSE LOCK "R"(12) REVERSE LOCK "L"(13) ARM, REVERSE LOCK(14) SHAFT, REVERSE LOCK(15) E-RING, D=6(15) E-RING, D=6(16) ROD, REVERSE LOCK(17) SPLIT PIN, 2-12(18) SPRING "S", REVERSE LOCK(18) SPRING "S", REVERSE LOCK(18) SPRING "I", REVERSE LOCK(18) SPRING "I", REVERSE LOCK(19) LEVER, TILT STOPPER(20) SHAFT, REVERSE LOCK LEVER(21) WASHER, 6-16-1.5(22) WASHER(22) WASHER(23) LINK "B"(24) SPRING "B"(25) GRIP(26) STOPPER, GRIP



Parts List
2003 :: 50 HP :: 2 Stroke Nissan NS50D2 :: MANUAL TILT (M TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILT STOPPER 3C8S629932 3C8S62993-2 $41.18 1
(2) BUSHING 10.2 -12 - 29.5 346624370M 346-62437-0 $1.85 1
(3) SET PLATE TILT STOPPER 346624390M 346-62439-0 $6.90 1
(4) BOLT 9101135820M 910113-5820 $1.89 2
(5) SPRING FRICTION TILT STOPPER 3C8624211M 3C8-62421-1 $2.42 1
(6) SET PIECE TILT STOPPER 346624380M 346-62438-0 $1.41 1
(7) SPRING PIN 4-25 9514030425M 951403-0425 $0.72 1
(8) SPRING R TILT ASSISTANT 3C8621420M 3C8-62142-0 EXPORT. MODEL: STD PART OF TRANSOM UL $34.51 1
(9) SPRING L TILT ASSISTANT 3C8621410M 3C8-62141-0 EXPORT. MODEL: STD PART OF TRANSOM UL $34.51 1
(10) TILT ASSISTANT SHAFT 3C8621430M 3C8-62143-0 EXPORT. MODEL: STD PART OF TRANSOM UL $15.87 1
(11) REVERSE LOCK L 3C8663522M 3C8-66352-2 $14.70 1
(12) REVERSE LOCK R 3C8663512M 3C8-66351-2 $14.70 1
(13) REVERSE LOCK ARM 3C8663133M 3C8663133M $15.62 1
(14) REVERSE LOCK SHAFT 3C8663190M 3C8663190M $5.98 1
(15) E-RING D=6 9453030600M 945303-0600 $0.83 2
(16) REVERSE LOCK ROD 3C8663210M 3C8-66321-0 $5.69 1
(17) SPLIT PIN 2-12 9515030212M 951503-0212 $0.97 1
(18) TILT STOPPER SPRING S 3C8663312M 3C8-66331-2 FOR TRANSOM S $12.88 2
(18) TILT STOPPER SPRING L 3C8663322M 3C8-66332-2 FOR TRANSOM L UL $12.88 2
(18) TILT STOPPER SPRING S 3C8663312M 3C8-66331-2 FOR TRANSOM S $12.88 2
(18) TILT STOPPER SPRING L 3C8663322M 3C8-66332-2 FOR TRANSOM L UL $12.88 2
(19) TILT STOPPER LEVER 3E3624360M 3E3-62436-0 50D # 53152~ / 40D # 35834~ $16.54 1
(20) SHAFT 3C8663143M 3C8-66314-3 50D # 53152~ / 40D # 35834~ $10.03 1
(21) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(22) WASHER 9401030600M 940103-0600 OR 940113-0600 $0.70 3
(23) LINK B 3C8663181M 3C8-66318-1 $7.34 1
(24) SPRING B 3C8663360M 3C8-66336-0 $5.98 1
(25) GRIP LOCK LEVER 346663330M 346-66333-0 $4.83 1
(26) STOPPER LEVER GRIP 346663340M 346-66334-0 $1.27 1
