18. SHIFT

Click Here for Microfiche Usage Tip

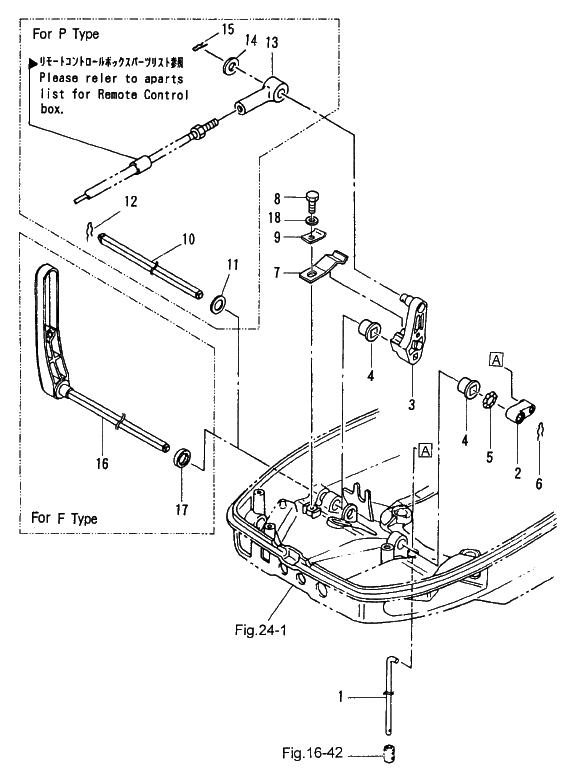

(1) SHIFT ROD(2) LEVER, SHIFT ROD(3) SHIFT ARM(4) BUSHING, SHIFT LEVER SHAFT(4) BUSHING, SHIFT LEVER SHAFT(5) WAVE WASHER, D=12(6) SNAP RETAINER, D=8(7) STOPPER, SHIFT LEVER(8) BOLT(9) PLATE, SHIFT LEVER STOPPER(10) SHIFT SHAFT(11) WASHER, 8.5-18-1.6(12) SNAP RETAINER, D=8(13) CABLE JOINT(14) WASHER, 8.5-18-1.6(15) R-PIN, D=8(16) SHIFT LEVER(17) SEAL RING(18) WASHER



Parts List
2003 :: 50 HP :: 2 Stroke Nissan NS50D2 :: SHIFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SHIFT ROD 3C8662110M 3C8-66211-0 $15.87 1
(2) SHIFT ROD LEVER 3C8662250M 3C8-66225-0 $7.59 1
(3) SHIFT ARM 3C8661221M 3C8-66122-1 $8.29 1
(4) SHIFT LEVER SHAFT BUSHING 350671010M 350-67101-0 $2.07 2
(5) WAVE WASHER D=12 9414031200M 941403-1200 $0.76 1
(6) SNAP RETAINER D=8 9517030800M 951703-0800 $0.83 1
(7) STOPPER SHIFT LEVER 3C8661120M 3B2-66113-0 $1.89 1
(8) BOLT 9101140610M 910114-0610 $0.76 1
(9) SHIFT LEVER STOPPER 3C8661160M 3C8-66116-0 $2.53 1
(10) SHIFT SHAFT 3C8661350M 3C8-66135-0 FOR P TYPE $15.64 1
(11) WASHER 8.5-18-1.6 353837190M 353-83719-0 FOR P TYPE $2.39 1
(12) SNAP RETAINER D=8 9517030800M 951703-0800 FOR P TYPE $0.83 1
(13) CABLE JOINT 3B7837150M 3B7-83715-0 FOR P TYPE $4.83 1 Sold Out View More Details
(14) WASHER 8.5-18-1.6 353837190M 353-83719-0 FOR P TYPE $2.39 1
(15) SNAP PIN D=8 9516030800M 951603-0800 FOR P TYPE $0.70 1
(16) SHIFT LEVER 3E3661100M 3E3-66110-0 FOR F TYPE $27.66 1
(17) SEAL RING 338671470M 338-67147-0 FOR F TYPE $1.85 1
(18) WASHER 9401030600M 940103-0600 OR 940113-0600 $0.70 1
