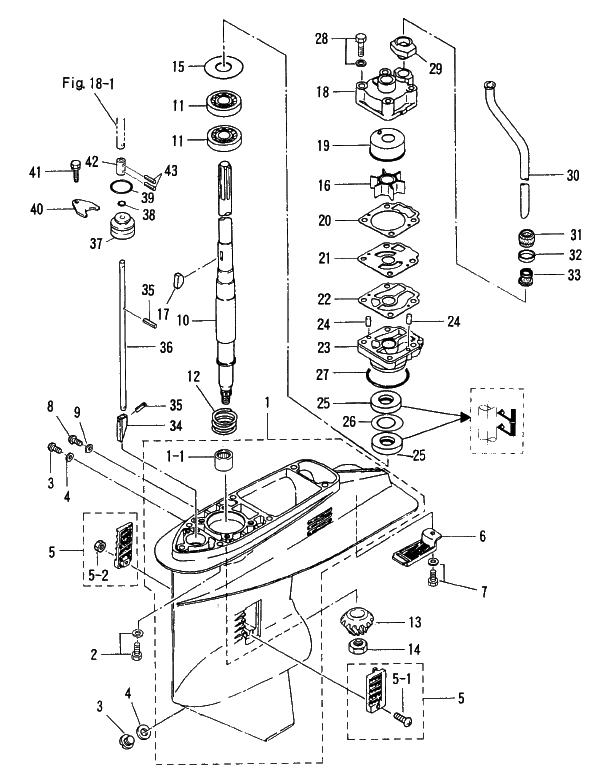

16. GEAR CASE (DRIVE SHAFT)

Click Here for Microfiche Usage Tip
(1) GEAR CASE(1) GEAR CASE (WITH SUB WATER PIPE)(1-1) NEEDLE BEARING, 22-30-30(2) BOLT(3) OIL PLUG(3) OIL PLUG(4) GASKET, 8.1-15-1(4) GASKET, 8.1-15-1(5) WATER STRAINER SET(5) WATER STRAINER SET(5-1) SCREW(5-2) NYLON NUT, 4-P0.7(6) SUB WATER STRAINER(7) BOLT(8) WATER PLUG(9) GASKET, 10.1-15-1(10) DRIVE SHAFT "S"(10) DRIVE SHAFT "L"(10) DRIVE SHAFT "LL"(10) DRIVE SHAFT "UL"(11) BEARING,6304(11) BEARING,6304(12) SPRING, DRIVE SHAFT(13) BEVEL GEAR "B"(14) NUT, BEVEL GEAR "B"(15) SHIM, 41-51.5-0.1(15) SHIM, 41-51.5-0.15(15) SHIM, 41-51.5-0.3(15) SHIM, 41-51.5-0.5(16) IMPELLER, WATER PUMP(17) KEY, WATER PUMP IMPELLER(18) PUMP CASE UPPER(19) LINER, PUMP CASE(20) GASKET, PUMP CASE UPPER(21) GUIDE PLATE, WATER PUMP(22) GASKET, PUMP GUIDE PLATE(23) PUMP CASE LOWER(24) KNOCK, 4-10(24) KNOCK, 4-10(25) OIL SEAL, 17-33-6(25) OIL SEAL, 17-33-6(26) SHIM, 32.9-26-0.5(27) O-RING, 3.2-47(28) BOLT(29) SEAL RUBBER LOWER, WATER PIPE(30) WATER PIPE "S"(30) WATER PIPE "L"(30) WATER PIPE "LL"(30) WATER PIPE "UL"(31) SEAL RUBBER UPPER, WATER PIPE(32) COLLAR, 18-20-4.5(33) LOCKING RUBBER, WATER PIPE(34) CLUTCH CAM(35) SPRING PIN, 3-12(35) SPRING PIN, 3-12(36) CAM ROD "S"(36) CAM ROD "L"(36) CAM ROD "LL"(36) CAM ROD "UL"(37) BUSHING, CAM ROD(38) O-RING, 2.4-5.8(39) O-RING, 3.5-21.7(40) STOPPER(41) BOLT(42) JOINT, SHIFT ROD(43) SPRING PIN, 3-12



Parts List
2003 :: 50 HP :: 2 Stroke Nissan NS50D2 :: GEAR CASE (DRIVE SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE 3C8S600000 3C8S60000-0 FOR TRANSOM S L $378.36 1
(1) GEAR CASE (WITH SUB WATER PIPE) 3C8S600900 3C8S60090-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(1-1) NEEDLE BEARING 22-30-30 345602110M 345-60211-0 $35.37 1
(2) BOLT 9101135835M 910113-5835 $3.51 6 Sold Out View More Details
(3) WATER PLUG 332600052M 332-60005-2 $5.43 2
(4) GASKET 8.1-15-1 332600060M 332-60006-0 $0.92 2
(5) WATER STRAINER SET 3C8602351M 3C8-60235-1 50D2 # 60851~ / 40D2 # 44986~ $8.01 1
(5-1) SCREW 9215030438M 921503-0438 $0.76 1
(5-2) NYLON NUT 4P-0.7 9304060400M 930406-0400 OR 930403-0400 $1.80 1 Sold Out View More Details
(6) SUB WATER STRAINER 3C8602040M 3C8-60204-0 $7.57 1
(7) BOLT 9101135616M 910113-5616 $1.22 1 Sold Out View More Details
(8) WATER PLUG 3B7600151M 3B7-60015-1 $5.66 1
(9) GASKET 10.1-15-1 3B7600160M 3B7-60016-0 $2.48 1
(10) DRIVE SHAFT S 3C8643010M 3C8-64301-0 FOR TRANSOM S $315.10 1
(10) DRIVE SHAFT L 3C8643020M 3C8-64302-0 FOR TRANSOM L $322.56 1
(10) DRIVE SHAFT LL 3C8643040M 3C8-64304-0 FOR TRANSOM LL $0.00 1 Sold Out View More Details
(10) DRIVE SHAFT UL 3C8643030M 3C8-64303-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(11) BEARING 6304 3C8602130M 3C8-60213-0 $15.99 2
(12) DRIVE SHAFT SPRING 3C8643270M 3C8-64327-0 $2.81 1
(13) BEVEL GEAR B 3C8640202M 3C8-64020-2 #037940XC~ $58.93 1
(14) BEVEL GEAR B NUT 3C8640270M 3C8-64027-0 $9.41 1
(15) SHIM 41-51.5-0.1 345640810M 345-64081-0 $1.96 0
(15) SHIM 41-51.5-0.15 345640820M 345-64082-0 $0.00 0 Sold Out View More Details
(15) SHIM 41-51.5-0.3 345640830M 345-64083-0 $1.96 0
(15) SHIM 41-51.5-0.5 345640840M 345-64084-0 $1.96 0
(16) WATER PUMP IMPELLER 3C8650212M 3C8-65021-2 50D2 # 62960~ / 40D2 # 47226~ $13.78 1
(17) KEY PUMP IMPELLER 332650220M 332-65022-0 $6.93 1
(18) PUMP CASE UPPER 3C8650161M 3C8-65016-1 50D2 # 59260~ / 40D2 # 43540~ $32.66 1
(19) LINER PUMP CASE 3C8650111M 3C8-65011-1 50D2 # 59260~ / 40D2 # 43540~ $14.29 1
(20) GASKET PUMP CASE UPPER 3C8650181M 3C8-65018-1 50D2 # 59260~ / 40D2 # 43540~ $4.08 1
(21) WATER PUMP GUIDE PLATE 3C8650250M 3C8-65025-0 $3.41 1
(22) GASKET PUMP GUIDE PLATE 3C8650290M 3C8-65029-0 $6.28 1
(23) PUMP CASE (LOWER) 3C8650171M 3C8-65017-1 $47.15 1
(24) KNOCK 4 -10 334650120M 334-65012-0 $3.22 2
(25) OIL SEAL 17-33-6 3C8602230M 3C8-60223-0 $7.87 2
(26) SHIM 32.9-26-0.5 3C8640840M 3C8-64084-0 $2.26 1 Sold Out View More Details
(27) O-RING 3.2-47 345650150M 345-65015-0 $1.61 1
(28) BOLT 9101135855M 910113-5855 $3.41 4 Sold Out View More Details
(29) WATER PIPE SEAL (LOWER) 3C8650140M 3C8-65014-0 $2.95 1
(30) WATER PIPE S 3C8651000M 3C8-65100-0 FOR TRANSOM S $19.01 1
(30) WATER PIPE L 3C8651100M 3C8-65110-0 FOR TRANSOM L $22.43 1
(30) WATER PIPE LL 3C8651300M 3C8-65130-0 FOR TRANSOM LL $0.00 1 Sold Out View More Details
(30) WATER PIPE UL 3C8651200M 3C8-65120-0 FOR TRANSOM UL $24.62 1
(31) WATER PIPE SEAL (UPPER) 345652060M 345-65206-0 $2.25 1
(32) COLLAR 18-20-4.5 345652050M 345-65205-0 $2.37 1 Sold Out View More Details
(33) WATER PIPE AUXILIARY MOUNT 346652040M 346-65204-0 $2.48 1
(34) CLUTCH CAM 3C8660110M 3C8-66011-0 $34.48 1
(35) SPRING PN 3-12 9514070312M 951407-0312 $0.92 2
(36) CAM ROD S 3C8660120M 3C8-66012-0 FOR TRANSOM S $20.68 1
(36) CAM ROD L 3C8660130M 3C8-66013-0 FOR TRANSOM L $31.31 1
(36) CAM ROD LL 3C8660150M 3C8-66015-0 FOR TRANSOM LL $0.00 1 Sold Out View More Details
(36) CAM ROD UL 3C8660140M 3C8-66014-0 FOR TRANSOM UL $24.38 1
(37) CAM ROD BUSHING 3C8660311M 3C8-66031-1 $22.63 1
(38) O-RING 2.4 - 5.8 332660210M 332-66021-0 $1.50 1
(39) O-RING 3.5 - 21.7 3C8660320M 3C8-66032-0 $2.21 1
(40) STOPPER 353660240M 353-66024-0 $4.70 1
(41) BOLT 9101036612M 910103-6612 $1.24 1
(42) SHIFT ROD JOINT 3C8662410M 3C8-66241-0 $5.93 1
(43) SPRING PIN 3-12 9514030312M 951403-0312 $0.88 2
