12. ELECTRIC PARTS (STARTER MOTOR)

Click Here for Microfiche Usage Tip

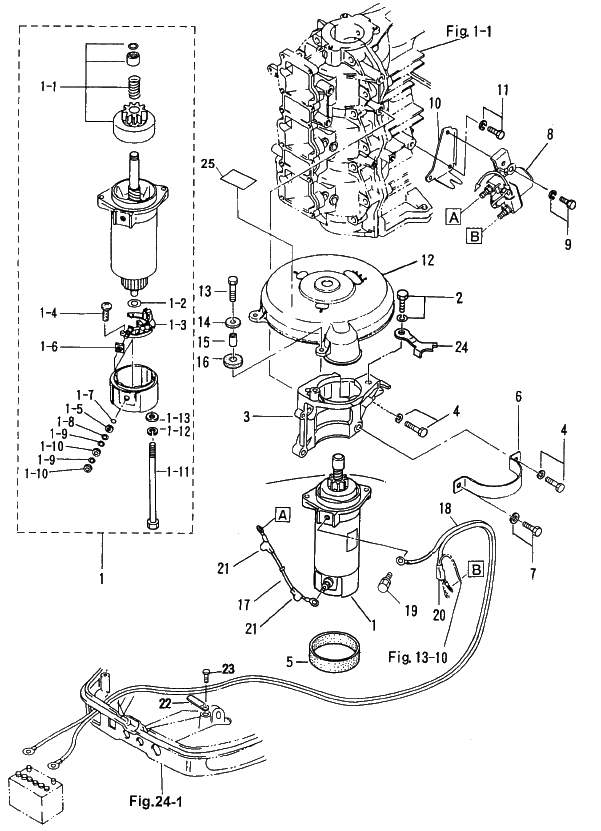

(1) STARTER MOTOR(1) STARTER MOTOR(1-1) PINION(1-2) WASHER(1-3) BRUSH HOLDER(1-4) SCREW(1-5) BUSHING 1(1-6) BUSHING 2(1-7) O-RING(1-8) WASHER(1-9) SPRING WASHER(1-9) SPRING WASHER(1-10) NUT(1-10) NUT(1-11) BOLT(1-12) SPRING WASHER(1-13) WASHER(2) BOLT(3) BRACKET, STARTER MOTOR(4) BOLT(4) BOLT(5) RUBBER, STARTER MOTOR(6) BAND, STARTER MOTOR(7) BOLT(8) STARTER SOLENOID(9) BOLT(10) BRACKET, STARTER SOLENOID(11) BOLT(12) COVER, RING GEAR(13) BOLT(14) WASHER, 6-16-1.5(15) COLLAR, 6.2-9-9.3(16) MOUNT RUBBER, 9-16-4.3(17) STARTER CORD(18) BATTERY CORD(19) BOLT(20) CAP, CORD(21) CAP, CORD(21) CAP, CORD(22) CLAMP, 6.5-47.5P(23) BOLT(24) STOPPER, COIL PLATE(25) CAUTION LABEL (CE-C)



Parts List
2003 :: 50 HP :: 2 Stroke Nissan NS50D2 :: ELECTRIC PARTS (STARTER MOTOR)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STARTER MOTOR 3C8760101M 3C8-76010-1 $491.52 1 Sold Out View More Details
(1-1) PINION ASSY 3C8760150M 3C8-76015-0 $167.77 1
(1-2) WASHER 3C8750150M 3C8-75015-0 $5.69 1
(1-3) BRUSH HOLDER ASSY 3C8750140M 3C8-75014-0 $59.83 1
(1-4) SCREW 9215216408M 921521-6408 $0.63 2
(1-5) BUSHING 1 3C8750160M 3C8-75016-0 $3.39 1
(1-6) BUSHING 2 3C8750170M 3C8-75017-0 $3.39 1
(1-7) O-RING 3C8750180M 3C8-75018-0 $1.21 1
(1-8) WASHER 9401030600M 940103-0600 $0.70 1
(1-9) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(1-10) NUT 9302030600M 930203-0600 $0.00 2 Sold Out View More Details
(1-11) BOLT 3C8750190M 3C8-75019-0 $8.97 2
(1-12) SPRING WASHER 9413210500M 941321-0500 $0.00 2 Sold Out View More Details
(1-13) WASHER 9402210500M 940221-0500 $0.00 2 Sold Out View More Details
(2) BOLT 9101035825M 910103-5825 $1.89 2
(3) BRACKET STARTER MOTOR 3C8B051010 3C8B05101-0 $44.62 1
(4) BOLT 9101035825M 910103-5825 $1.89 4
(5) RUBBER STARTER MOTOR 3C8760070M 3C8-76007-0 $3.39 1 Sold Out View More Details
(6) STARTER MOTOR BAND 3C8760090M 3C8-76009-0 $7.59 1
(7) BOLT 9101035820M 910103-5820 OR 910113-5820 $1.71 1 Sold Out View More Details
(8) STARTER SOLENOID 346760400M 346-76040-0 $77.11 1
(9) BOLT 9101036616M 910103-6616 $1.20 1
(10) BRACKET STARTER SOLENOID 3C8710350M 3C8-71035-0 $10.81 1
(11) BOLT 9101036614M 910103-6614 $1.09 2
(12) COVER RING GEAR 3C8063010M 3C8-06301-0 FOR P TYPE $25.33 1 Sold Out View More Details
(13) BOLT 9101030625M 910113-0625 FOR P TYPE $0.95 3
(14) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 FOR P TYPE $1.59 3 Sold Out View More Details
(15) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 FOR P TYPE $4.06 3
(16) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 FOR P TYPE $0.92 3
(17) STARTER CORD 3C8761410M 3C8-76141-0 L=160 $0.00 1 Sold Out View More Details
(18) BATTERY CABLE 3B7761200M 3B7-76120-0 L=3000 $140.39 1
(19) BOLT 9101036612M 910103-6612 $1.16 1
(20) CAP CORD 3B7761450M 3B7-76145-0 $3.39 1
(21) CAP CORD 3A3761450M 3A3-76145-0 $3.39 2
(22) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(23) BOLT 9101030610M 910114-0610 OR 910113-0610 $0.76 1
(24) STOPPER COIL PLATE 3C8061050M 3C8-06105-0 50D2 # 61577~ / 40D2 # 45738~ $3.08 1
(25) CAUTION LABEL (CE-C) 3C7721822M 3C7-72182-2 FOR P TYPE $1.53 1
