10. MAGENTO

Click Here for Microfiche Usage Tip

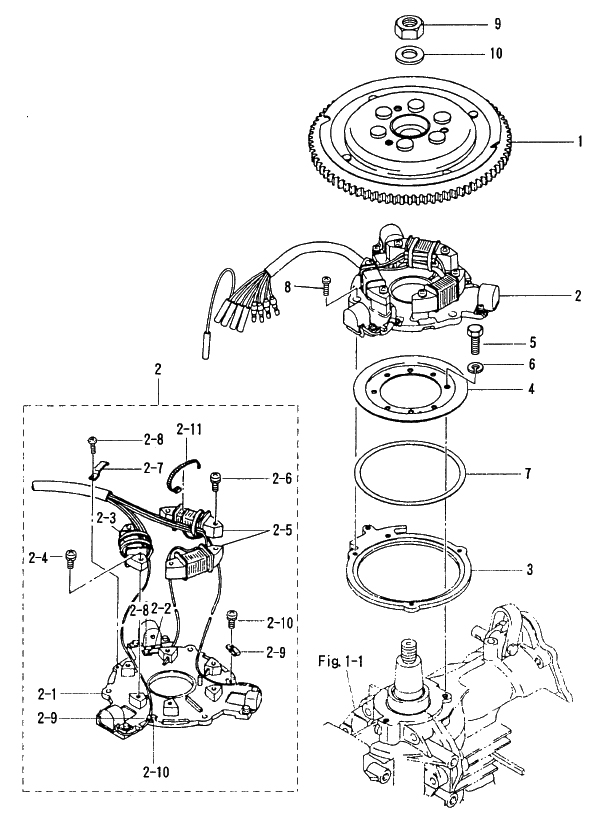

(1) FLYWHEEL CUP (F4T405-72)(2) COIL PLATE ASSY(2) COIL PLATE ASSY(2-1) PULSER PLATE ASSY(2-2) PULSER HOLDER(2-3) EXCITER COIL(2-4) SCREW(2-5) ALTERNATOR(2-6) SCREW(2-7) HOLDER, MAGNETO CORD(2-8) SCREW(2-8) SCREW(2-9) CLAMP, PULSER(2-9) CLAMP, PULSER(2-10) SCREW(2-10) SCREW(2-11) BAND, LEAD WIRE(3) SET RING(4) GUIDE PLATE(5) BOLT(6) SPRING WASHER(7) SHIM, 110-122-0.15(7) SHIM, 110-122-0.2(7) SHIM, 110-122-0.25(8) SCREW(9) NUT, 18-P1.5(10) WASHER, 19-34-3



Parts List
2003 :: 50 HP :: 2 Stroke Nissan NS50D2 :: MAGENTO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP (F4T405-72) 3C8061011M 3C8-06101-1 50D # 54652~ / 40D # 37998~ $819.40 1
(2) COIL PLATE ASSY 3C8061032M 3C8-06103-2 50D # 58631~ / 40D # 42738~ $506.58 1
(2-1) PULSER PLATE ASSY 3C8061302M 3C8-06130-2 50D # 58631~ / 40D # 42738~ $363.45 1
(2-2) HOLDER PULSER 3B7061310M 3B7-06131-0 $3.85 1
(2-3) EXCITER COIL 3C8061201M 3C8-06120-1 50D # 54652~ / 40D # 37998~ $77.11 1
(2-4) SCREW 9215216630M 921521-6630 $1.44 2
(2-5) ALTERNATOR 3C8061231M 3C8-06123-1 50D # 54652~ / 40D # 37998~ $132.17 1
(2-6) SCREW 9215216630M 921521-6630 $1.44 4
(2-7) HOLDER MAGNETO CORD 3B7061350M 3B7-06135-0 $0.00 1 Sold Out View More Details
(2-8) SCREW 9225210406M 922521-0406 $0.79 2 Sold Out View More Details
(2-9) CLAMP PULSER 3B7061320M 3B7-06132-0 $4.23 2 Sold Out View More Details
(2-10) SCREW 9225216406M 922521-6406 $0.00 2 Sold Out View More Details
(2-11) BAND LEAD WIRE 3B7061330M 3B7-06133-0 $0.00 1 Sold Out View More Details
(3) SET RING 3B7637230M 3B7-63723-0 $22.31 1
(4) GUIDE PLATE 346637222M 346-63722-2 $21.65 1
(5) BOLT 9101210616M 910121-0616 $0.98 3
(6) SPRING WASHER 9413220600M 941322-0600 $0.35 3
(7) SHIM 110-122-0.15 3C8637450M 3C8-63745-0 $1.90 0
(7) SHIM 110-122-0.2 3C8637460M 3C8-63746-0 $1.90 0
(7) SHIM 110-122-0.25 3C8637470M 3C8-63747-0 $1.90 0
(8) SCREW 9215036510M 921503-6510 50D # 58631~ / 40D # 42738~ $0.49 3
(9) NUT 18 P1.5 353001320M 353-00132-0 $4.40 1
(10) WASHER 19 - 34 - 3 353001330M 353-00133-0 $3.00 1
