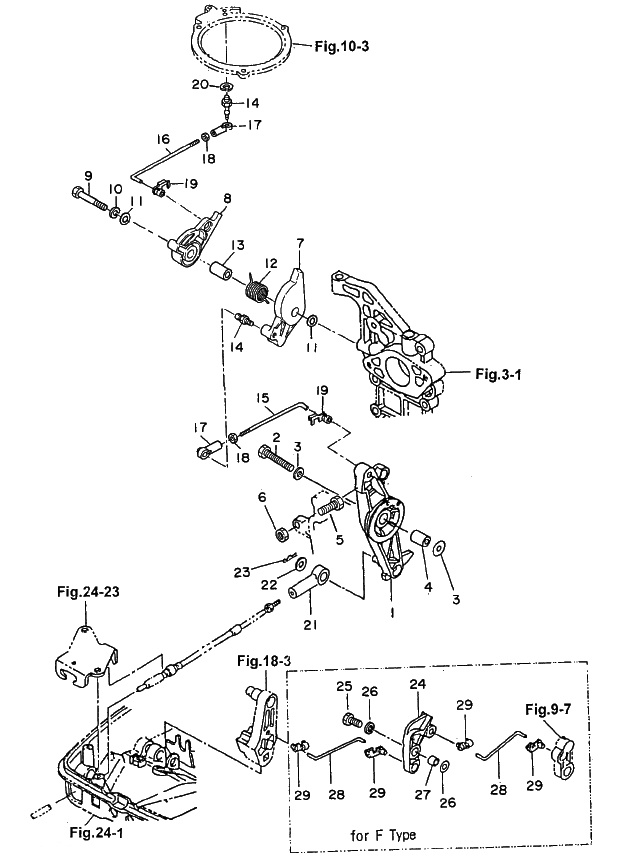

7. THROTTLE

Click Here for Microfiche Usage Tip
(1) ADVANCER ARM(2) BOLT(3) WASHER, 6.5-21-1(3) WASHER, 6.5-21-1(4) COLLAR, 6.2-12-17(5) BOLT(6) NUT(7) THROTTLE CAM(8) ADVANCER LEVER(9) BOLT(10) SPRING WASHER(11) WASHER, 6-16-1.5(11) WASHER, 6-16-1.5(12) SPRING, THROTTLE CAM(13) COLLAR, 6.5-10.5-26.3(14) BALL JOINT "B"(14) BALL JOINT "B"(15) L-LINK, 5-105(16) L-LINK, 5-90(17) CAP "C", BALL JOINT(17) CAP "C", BALL JOINT(18) NUT(18) NUT(19) ROD SNAP, 5-3(19) ROD SNAP, 5-3(20) SPRING WASHER(21) CABLE JOINT(22) WASHER, 8.5-18-1.6(23) R-PIN, D=8(24) ARM, THROTTLE STOP(25) BOLT(26) WASHER(26) WASHER(27) COLLAR, 6.2-9-9.3(28) S-LINK, 3.5-56(28) S-LINK, 3.5-56(29) ROD SNAP "B", 3.5-4(29) ROD SNAP "B", 3.5-4(29) ROD SNAP "B", 3.5-4(29) ROD SNAP "B", 3.5-4



Parts List
2003 :: 50 HP :: 2 Stroke Nissan NS50D2 :: THROTTLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ADVANCER ARM 3C8637110M 3C8637110M $15.46 1
(2) BOLT 9101030635M 910103-0635 $1.02 1
(3) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 2
(4) COLLAR 6.2-12-17 3C8637320M 3C8-63732-0 $2.31 1
(5) BOLT 9101030630M 910103-0630 OR 910113-0630 $1.21 1
(6) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 1
(7) THROTTLE CAM 3E3637181M 3E3-63718-1 50D2 #59260~ $8.52 1
(8) ADVANCER LEVER 3E3637120M 3E3-63712-0 50D2 #59260~ / 40D2 #43540~ $12.93 1
(9) BOLT 9101030640M 910103-0640 $1.59 1
(10) SPRING WASHER 9413030600M 941303-0600 $0.84 1
(11) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.59 2 Sold Out View More Details
(12) SPRING THROTTLE CAM 3E3637270M 3E3-63727-0 50D2 #59260~ / 40D2 #43540~ $3.40 1
(13) COLLAR 6.5-10.5-26.3 3E3637210M 3E3-63721-0 $4.15 1 Sold Out View More Details
(14) BALL JOINT B 346052280M 346-05228-0 $4.63 2
(15) L-LINK 5-105 3E3637090M 3E3-63709-0 50D2 #59260~ / 40D2 #43540~ $5.11 1
(16) L-LINK 5-90 3E3637160M 3E3-63716-0 50D2 #59260~ / 40D2 #43540~ $4.93 1
(17) BALL JOINT CONNECTOR 3B7052430M 3B7-05243-0 $2.56 2
(18) NUT 9301060500M 930106-0500 OR 930103-0500 $0.86 2
(19) ROD SNAP 5-3 3C8637330M 3C8-63733-0 $1.45 2
(20) SPRING WASHER 9413030600M 941303-0600 $0.84 1
(21) CABLE JOINT 3B7837150M 3B7-83715-0 $4.83 1 Sold Out View More Details
(22) WASHER 8.5-18-1.6 353837190M 353-83719-0 FOR P TYPE $2.39 1
(23) SNAP PIN D=8 9516030800M 951603-0800 FOR P TYPE $0.70 1
(24) ARM THROTTLE LIMITER ARM 3C8052130M 3C8-05213-0 FOR F TYPE $4.19 1 Sold Out View More Details
(25) BOLT 9101140625M 910114-0625 FOR F TYPE $1.04 1
(26) WASHER 9401030600M 940103-0600 FOR F TYPE $0.70 2
(27) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 FOR F TYPE $4.06 1
(28) THROTTLE LIMITER ROD 3.5-56 3C8052210M 3C8-05221-0 FOR F TYPE $2.31 2
(29) ROD SNAP 3.5-4 3C8052230M 3C8-05223-0 FOR F TYPE $1.41 4
